7. Acquiring PANO Images
vatech A9 (Model name: PHT-30CSS) User Manual 73
English
9. Guide the patient to press the base of the nose (acanthion point) against the
Chinrest and tilt the head forward about 5˚. At this point, make sure the patient's
jaw does not touch the equipment.
 If the jaw touches the equipment, it is difficult to maintain
the proper position to get good images.
 Be careful; the patient does not touch the equipment with
his/her jaw.
10. the patient maintains the posture as follows:
 Close the mouth.
 Place the tongue on the roof of the mouth.
 Close the eyes.

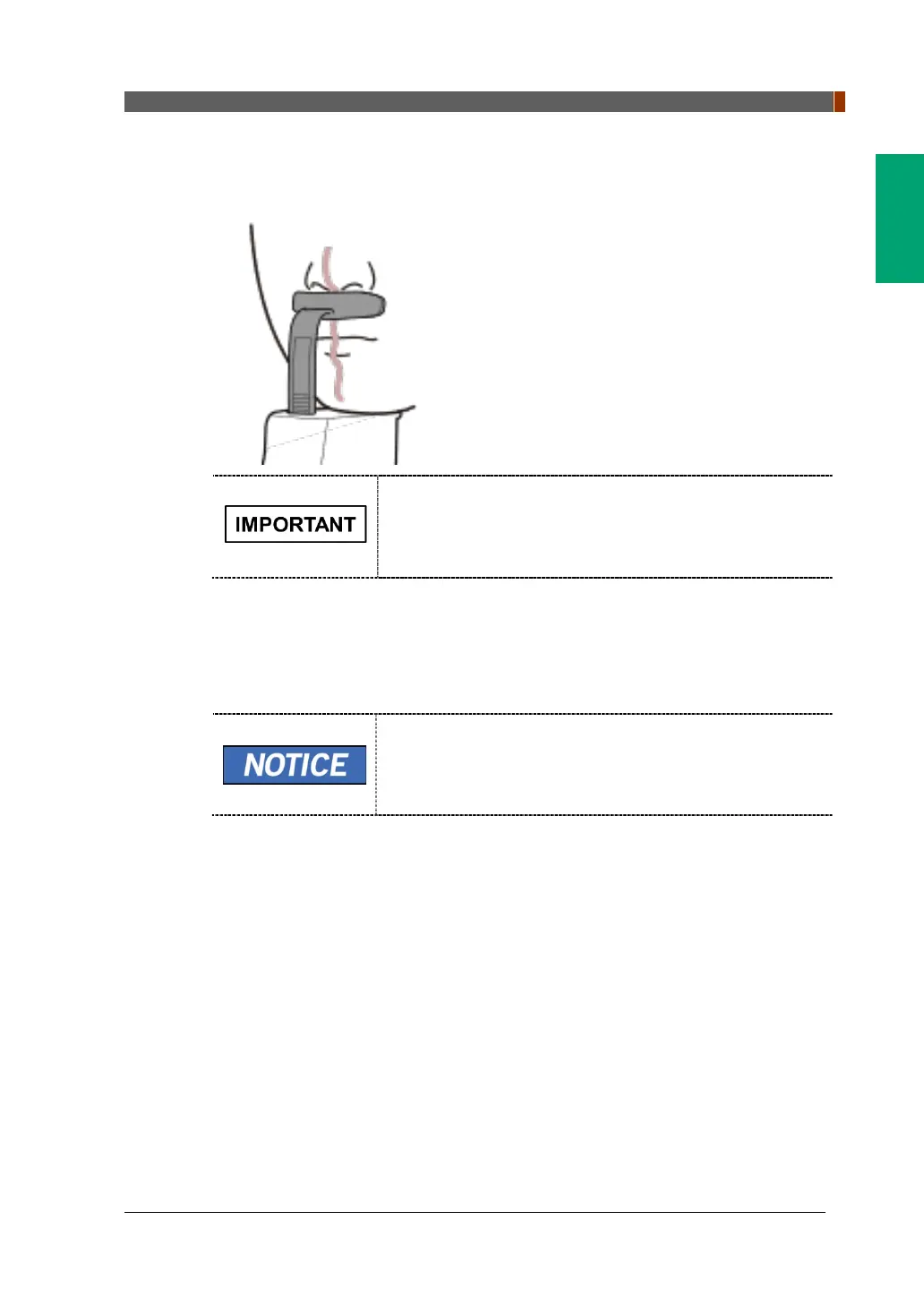

 As shown in the picture, the support unit of the integrated
Chinrest should touch the patient's acanthion point.
 Ask the patient to maintain his/her position until the
operation is completed.
