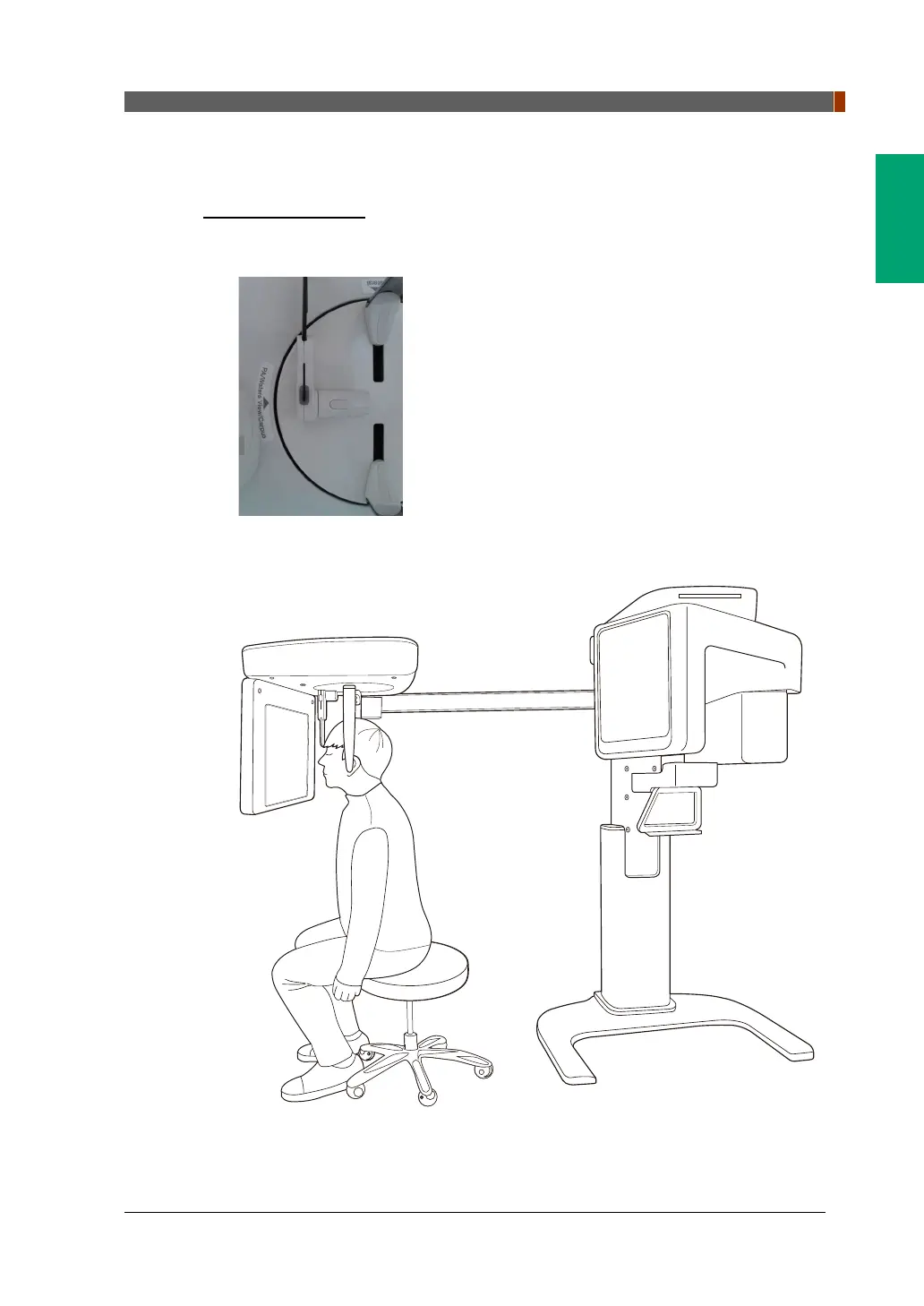

8
.
Acquiring
CEPH Images (Optional)
vatech
A9 (Model name: PHT
-30CSS)
User Manual
87
English
8.3.2
P
A M
ode
Patient Positioning
1.
Turn t
he Nasal Posit
ioner to the
PA/
W
aters’ v
iew
/
Carpus
mode P
ositioni
ng
Marker,
as shown below.
2.
Fold the
Nas
al Positio
ner
up. The N
asal Posit
ioner
is not us
ed
in PA m
ode.
3.
Guide the
patient to t
he CEPH unit.
86
88
Table of Contents
Table of Contents
5
Introduction
9
Overview
9
Indications for Use
9
Intended Purposes
10
Intended User Profiles
11
General Information
13
Manufacturer's Liability
13
Owner and Operator's Obligations
13
Conventions in this Manual
14
Marks and Symbols
15
Warnings and Precautions
19
General Safety Guidelines
19
Electricity-Related Safety Precautions
23
Radiation Safety
25
Warnings
26
Imaging System Overview
29
System Components
29
Features
29
Imaging System Options
29
Standards and Regulations
30
Operating Principles
30
Imaging System Configuration
31
Equipment Overview
32
Imaging Software Overview
39
PC Specifications (Recommended)
39
Ezdent-I
40
Console Software
41
Getting Started
45
Turning on the Equipment
45
Running the Image Viewer (Ezdent-I)
46
Initiating the Console Software
48
Acquiring PANO Images
49
PANO Imaging Program Overview
49
Configuring Exposure Parameters
56
Patient Positioning
60
X-Ray Exposure
75
Finishing the Scan
76
Checking the Captured Images
76
Acquiring CEPH Images (Optional)
77
CEPH Imaging Program Overview
77
Configuring Exposure Parameters
80
Patient Positioning
83
X-Ray Exposure
95
Finishing the Scan
95
Checking the Captured Images
96
Acquiring CBCT Images
97
CBCT Imaging Program Overview
97
Configuring Exposure Parameters
98
Configuring the Third Molar Teeth Exposure Parameters (Optional)
102
Patient Positioning
105
X-Ray Exposure
114
Finishing the Scan
115
Checking the Captured Images
115
Image Comparison According to Patient Position - Incorrect Posture
116
Troubleshooting
119
Error Codes
120
11. Cleaning and Disinfection
125
Cleaning
125
Disinfection
126
12. Maintenance
127
Regular Maintenance
127
Maintenance Task Checklist
128
QA Test
129
QA Test Procedure
131
13. Disposing of the Equipment
141
14. Technical Specifications
143
Mechanical Specifications
143
14. Technical Specifications
147
Electrical Specifications
152
Environmental Specifications
153
Appendices
155
Recommended X-Ray Exposure Tables
155
X-Ray Dose Data
162
Electromagnetic Compatibility (EMC) Information
175
Acquiring Images for Pediatric Dental Patients
178
Degree of Cervical Ghost Occurrence According to Forward Head Posture
189
Abbreviations
192
