12. Maintenance

132 vatech A9 (Model name: PHT-30CSS) User Manual

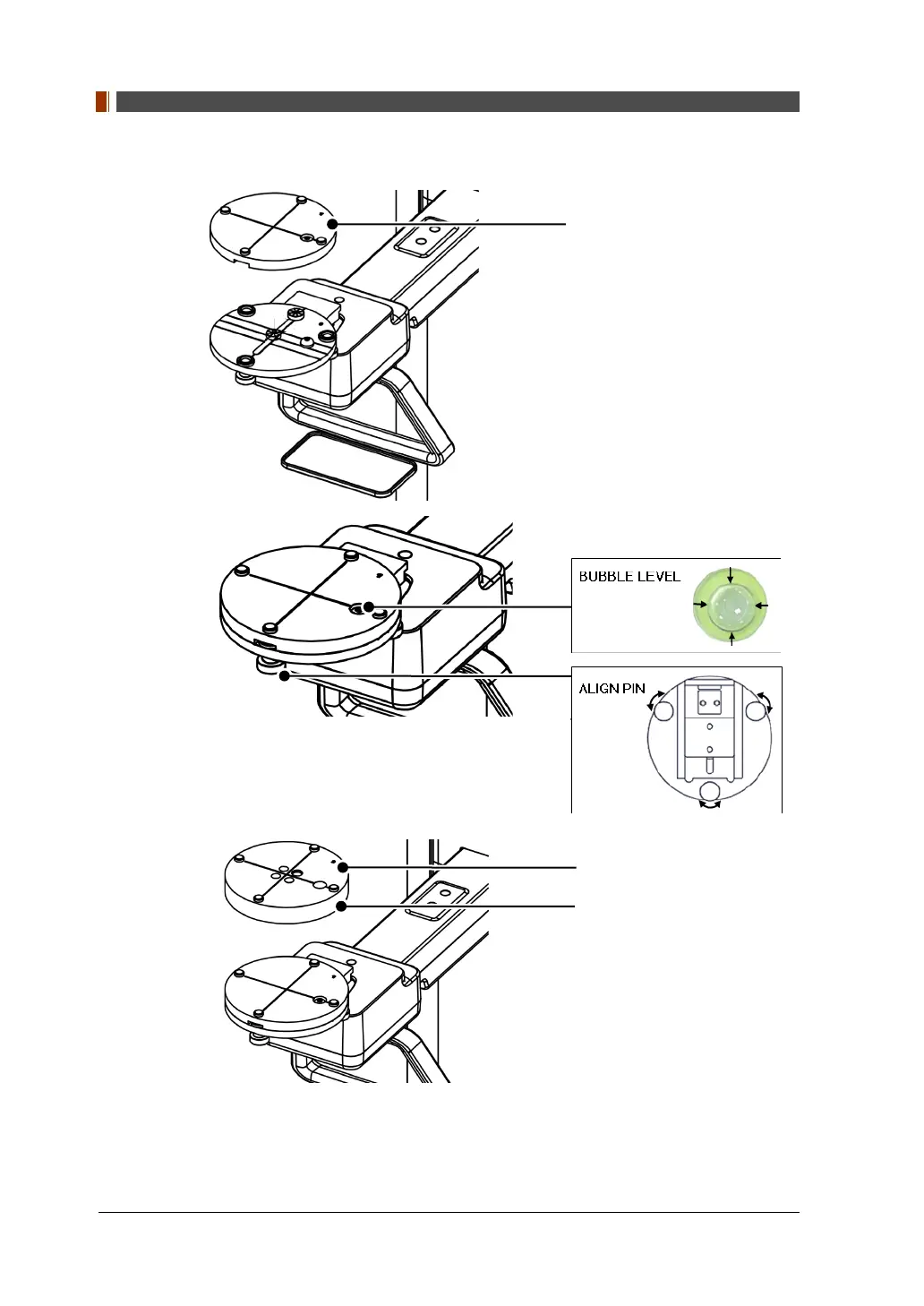

4. Put the PHANTOM JIG ASS’Y TOP on the PHANTOM JIG ASS’Y BOTTOM as

shown below.

5. Make the PHANTOM JIG ASS’Y level by using BUBBLE LEVEL and three ALIGN PINs.

6. Put CT NUMBER CHECK PHANTOM on the PHANTOM JIG ASS’Y.

7. Run the EzDent-i and click to add a patient for QA TEST.

PHANTOM JIG ASS’Y TOP

CT NUMBER PHANTOM

ID Number
