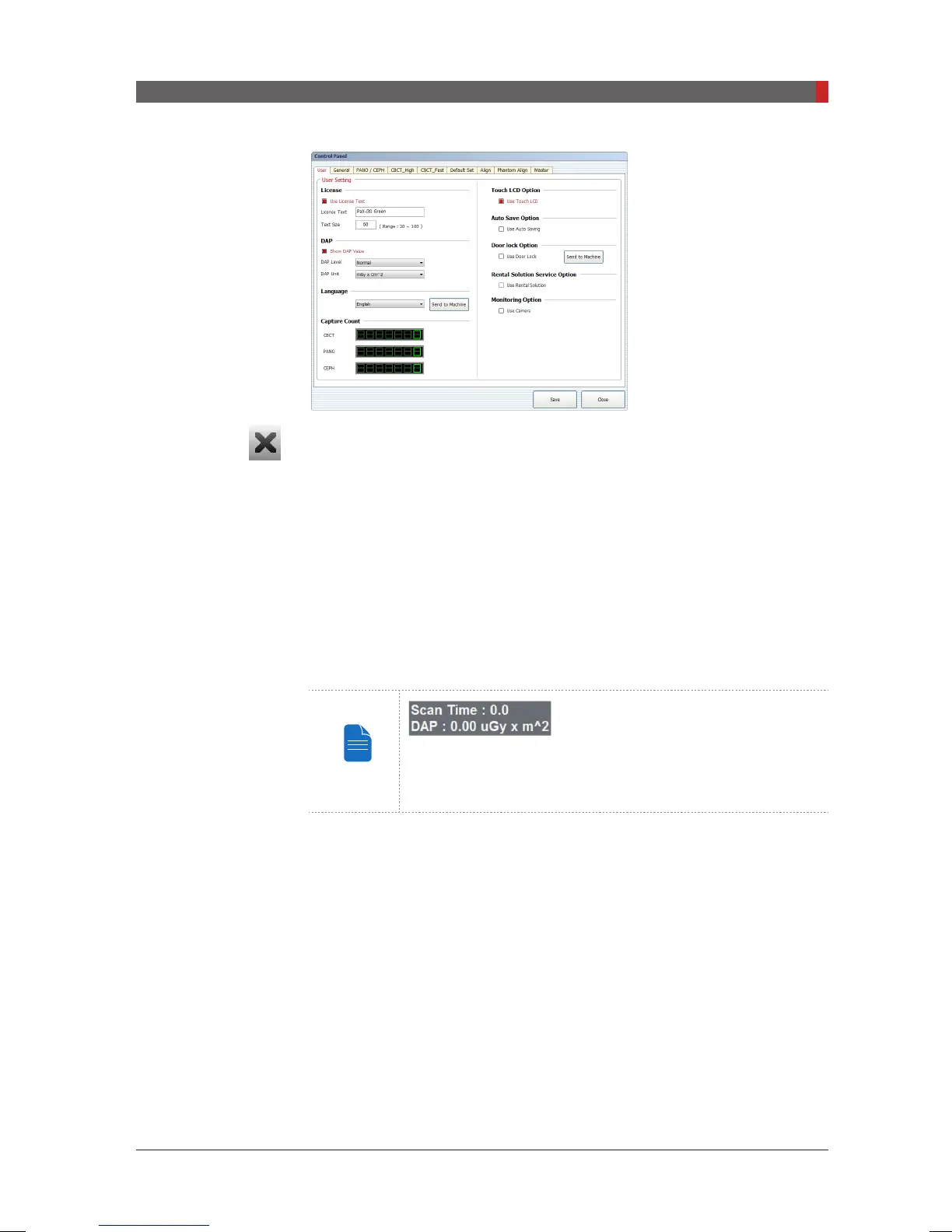

4 Software Overview
M. Exit
This button exits the capturing program.
N. Imaging Mode
This selects an imaging mode – PANO, CEPH or CBCT. Refer to section
4.3.1
~ 4.3.3
for the details regarding
PANO, CEPH and CBCT
imaging modes.
O. Conrm
After conrming all settings required for scanning, press
CONFIRM
to apply the
settings.
NOTE
When you click CONFIRM, the scan time and estimated
DAP (Dose Area Product) value will be shown on the main
display for the exposure you are going to take.
P. Ready
This button is used when all aspects of preparation have done for image
acquisition (including parameter settings and patient positioning)
