LVP300 LED HD Video Processor
3
Chapter 3 Hardware connection

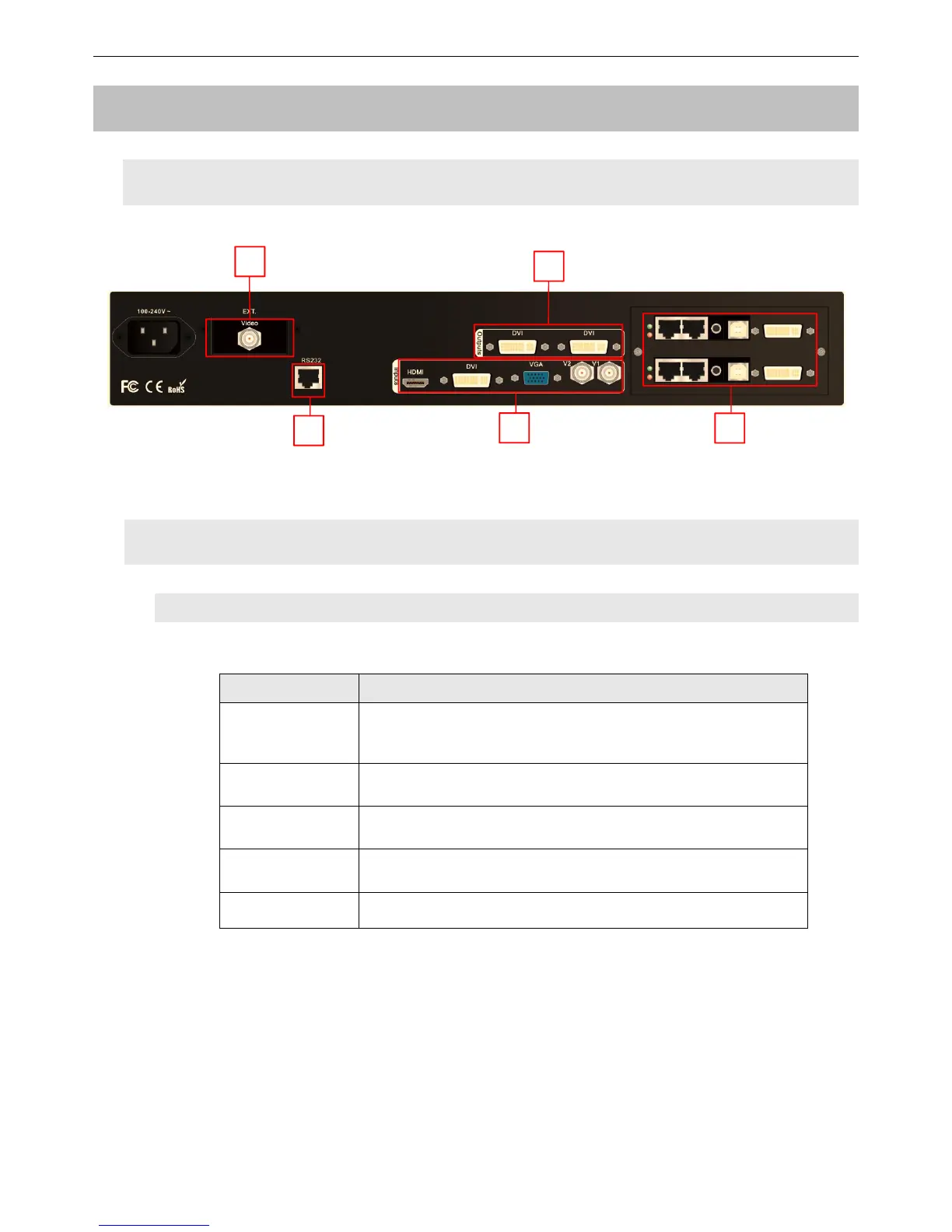

1 Rear view
1
2
1
3
4
①Video input ports ②Video output ports ③Communication ports ④Sending card installation location
2 Ports description
1) Video signal inputs (INPUT)
LVP300 supports 6 video signals input as follows:
Port
Description
V1
、
V2
2*Composite Video (PAL/ NTSC)
VGA
1* PC analog signal
DVI
1* DVI ( PC digital signal)
HDMI
1*HDMI (HD digital signal)
EXT.
1* Extended input
Note
：
EXT. Port comes standard with 1*VIDEO, and can change to 1*SDI/HD-SDI/3G-SDI,
1*VGA/DVI port or 1*USB Extended module.
