2. PIP/PBP operation
LVP300 allows to insert PIP window on the current display signal. That is dual image
display function(PIP/PBP)。PIP signal can be any input signal from other input groups or
current input signal itself.
（
signal group refer to page 19 signal group list
）
Dual image size
can be preset 3 modes.The detailed operation method is as follow：
Enter PIP/PBP mode
：
press On/Off button
，
the indicator will be on. LVP300 enters
PIP/PBP mode. Then press input signal button to select PIP signal. At the same time, LCD
will display main input and pip input status and size.
（

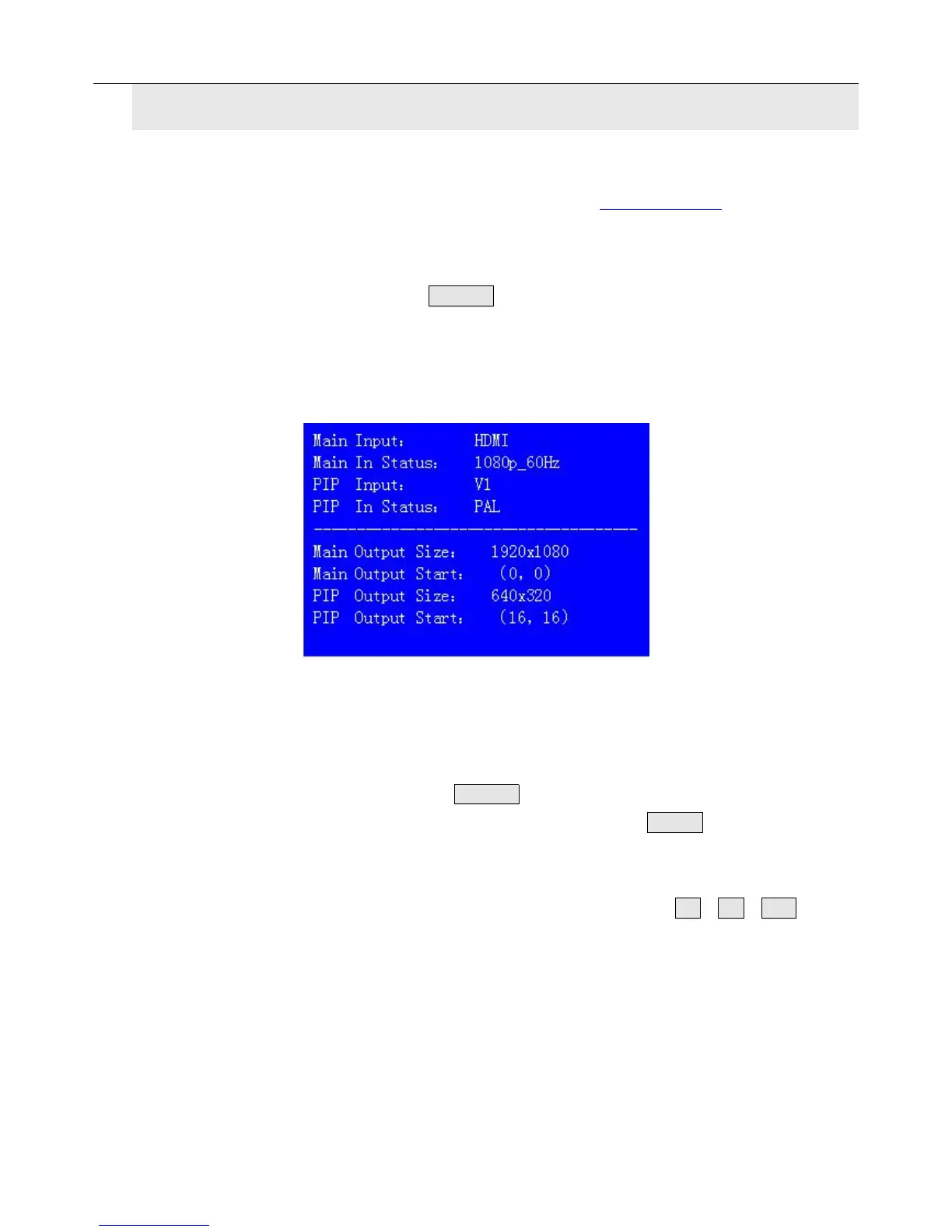

as shown below
）
Select PIP input signal：In PIP mode，press button to select corresponding signal.
Then this signal is configured as PIP input.
Select Main input signal
：
Press On/Off button to close PIP mode.
，
Press button to
select corresponding signal as main input signal. Then press On/Off button to enter PIP
mode to select pip signal again.
Switch PIP/PBP mode
：
When PIP/PBP is on
，
press buttons M1
、
M2
、
M3 directly
to select display mode fast.
