Connecting Probe/Sensor Wiring to Consoles TLS-350/ProMax/EMC Consoles
70
PUMP RELAY MONITOR MODULE - POWER BAY
The Pump Relay Monitor Module can accept ac inputs from the STP’s Remote Control Box [Figure 68].]
For each STP to be monitored, connect a shielded cable consisting of two #14 AWG conductors to the
appropriate input terminals on the module.

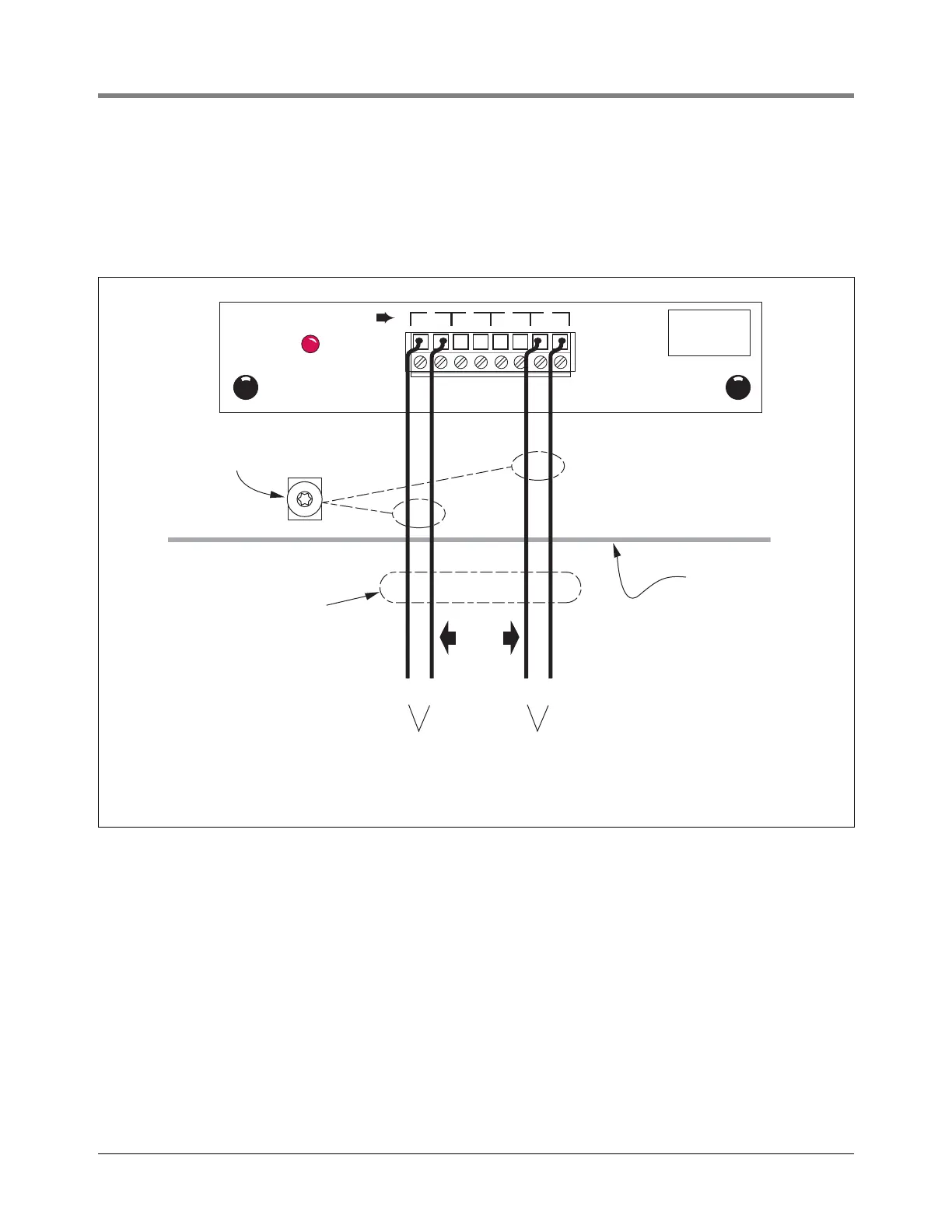

Figure 68. Pump Relay Monitor Module Wiring
Console
consoles\prmodulerj2.eps
I N P UT RAT I N G
240 V AC
0.15 A M P M A X
PUMP RELAY MONITOR MODULE
P I P R P I P R P I P R P I P R
P U M P
1 2 3 4
External
ac Input
Wiring
#14 AWG
External
ac Input
Wiring
#14 AWG
Attach Cable Shield to Ground
Lug Closest to Conduit Entry
Shielded
Cables
Rigid Conduit (enters
Console through a
Power Bay knockout)
Up to 4
pumps
M1 M2 M1 M2
