B-1
Appendix B: Universal Sensor Mounting Kit
Introduction
This addendum describes installation procedures for the Universal Mounting Kit for Dispenser Pan and
Containment Sump Sensors, Part Number 331144-001.
Since you can use the Universal Mounting Kit in a variety of ways, only the most commonly used mounting
methods are described.
Product Description
The Universal Mounting Kit is compatible with most manufacturer’s dispenser pans and containment sumps and
provides added flexibility when mounting the sensors.
KIT CONTENTS
The Universal Mounting Kit, Part No. 331144-001 consists of:

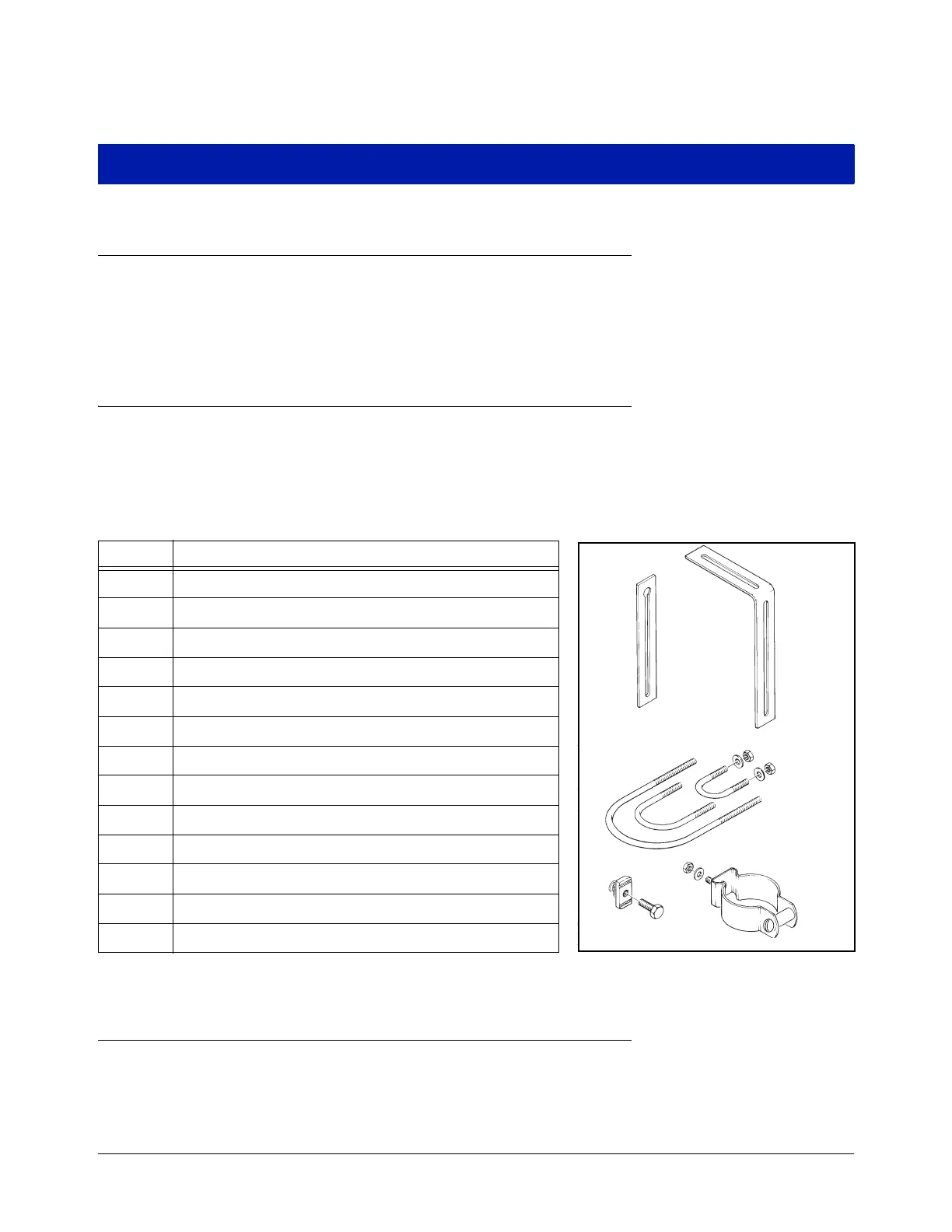

Figure B-1. Universal Mounting Kit Contents
Mounting Sensors
Depending on the type of pan you are using, you can configure the Universal Mounting Kit in several different
ways. Some of the more frequently used mounting methods are illustrated in the following figures using selected
components from the kit as required. The spacer for the1-1/2 inch machine screw is only needed with a stabilizer
Quantity Description
2 Extension brackets (see Item 1, Figure B-1)
1 L-bracket (see Item 2, Figure B-1)
1 3/4-inch U-bolt (see Item 3, Figure B-1)
1 1-inch U-bolt (see Item 3, Figure B-1)
1 2-inch U-bolt (see Item 3, Figure B-1)
1 3/8-inch spring nut (see Item 4, Figure B-1)
1 3/8-16 X 7/8-inch bolt (see Item 4, Figure B-1)
4 1/4-20 nut
3 1/4-20 x 3/4-inch bolt
4 1/4 flat washer
1 1/4-20 x 1-1/2 inch machine screw (See Item 5, Figure B-1)
1 2-inch sensor clamp (See Item 5, Figure B-1)
1 1/4 X 1-inch spacer (See Item 5, Figure B-1)
