Veeder-Root TLS-350 Series User Manual

Appendix B: Universal Sensor Mounting Kit Mounting Sensors
B-2
tube to prevent excess clamping pressure on the sensor (see Figure B-2).

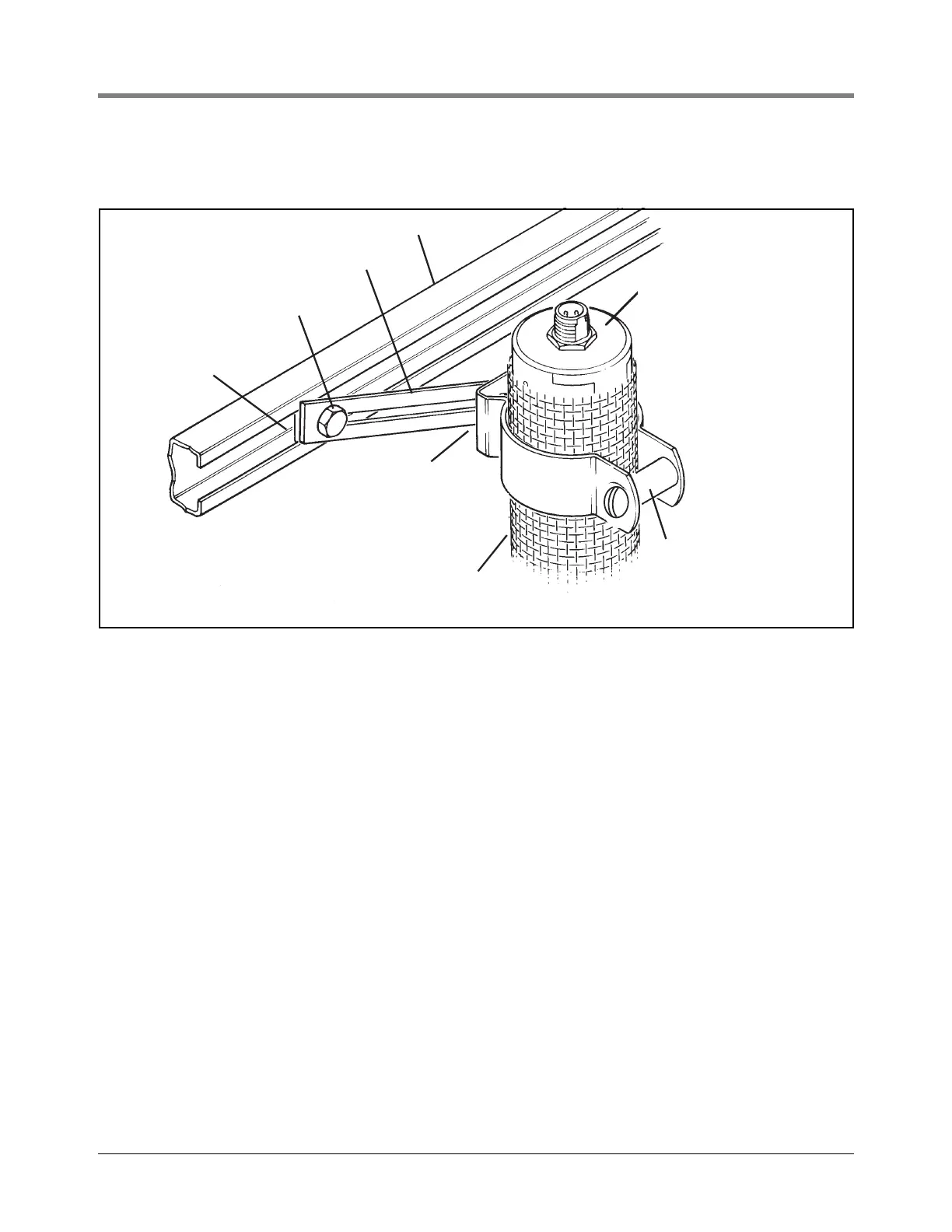

Figure B-2. Mounting the Sensor in a Stabilizer Tube to a Support Bar
Sensor stabilizer tube
Sensor
Support bar
sensors\snstbtb.eps
Spacer
w/ 1/4-20 x 1-1/2" lg
machine screw and
washer and nut
3/8-16 Spring nut
3/8-16 x 7/8 hex bolt
Extender bracket
1/4-20 x 3/4 hex bolt
w/ washer and nut
(not shown)
