Appendix B: Universal Sensor Mounting Kit Mounting Sensors
B-6

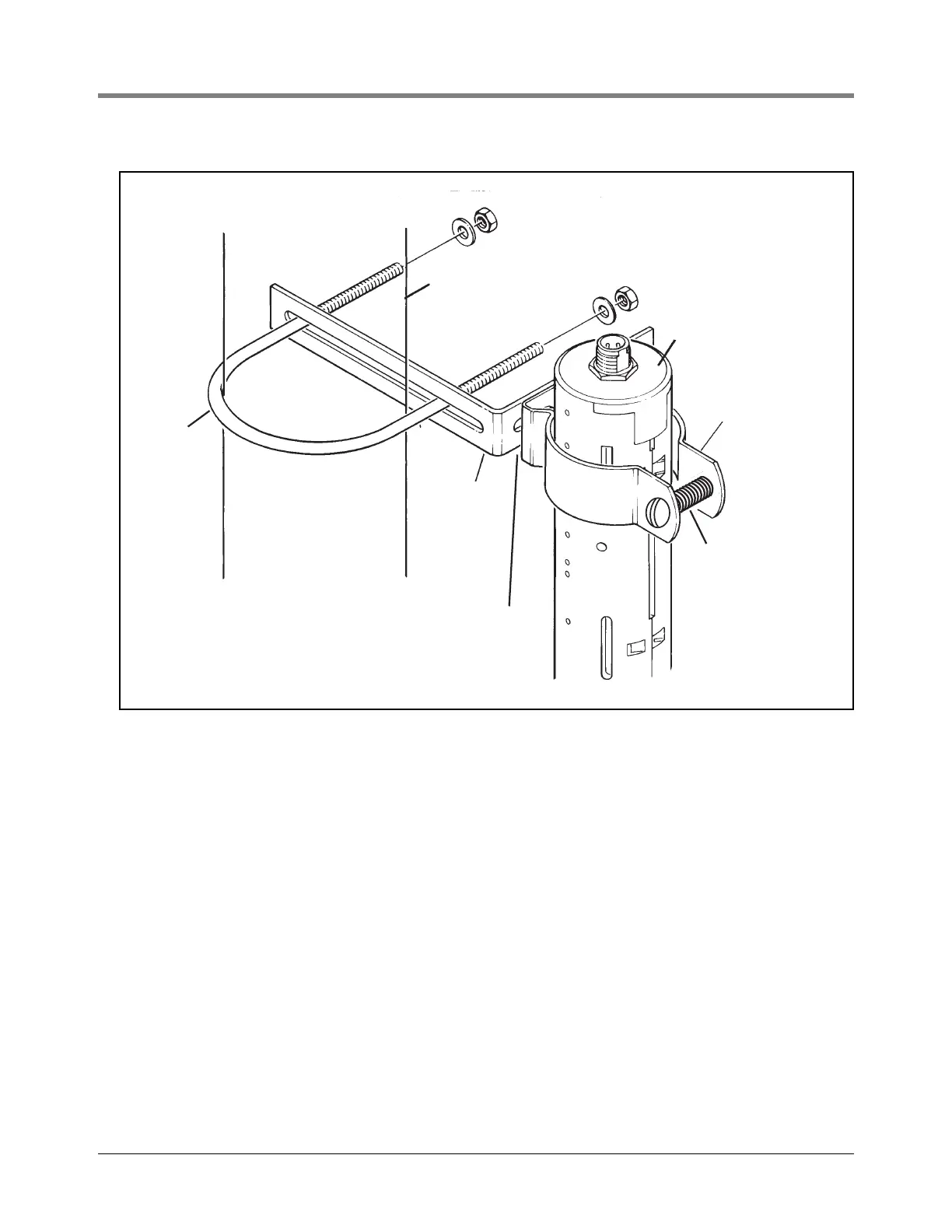

Figure B-6. Mounting the Sensor to a Supply Line
Supply line
U-bolt
L-bracket
Sensor
Clamp
sensors\snsupln.eps
1/4-20 x 3/4 hex bolt
w/ washer and nut
(not shown)
1/4-20 x 1-1/2
machine screw w/
washer and nut
