Appendix B: Universal Sensor Mounting Kit Mounting Sensors
B-7

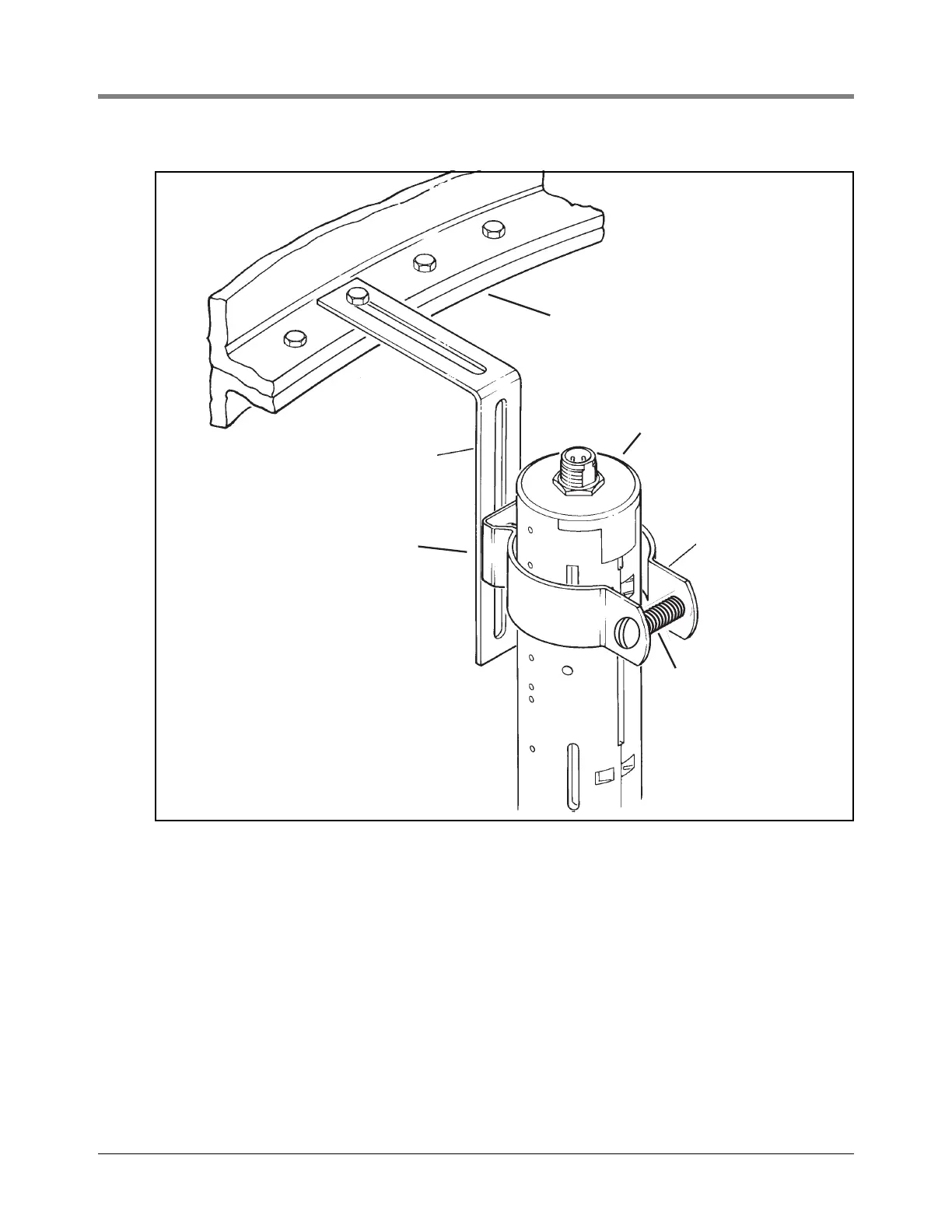

Figure B-7. Mounting the Sensor in a Containment Sump
Clamp
L-bracket
Sensor
Containment sump
wall
sensors\sncntmnt.eps
1/4-20 x 3/4 hex bolt
w/ washer and nut
(not shown)
1/4-20 x 1-1/2
machine screw w/
washer and nut
