Veeder-Root TLS-4 Series User Manual

10 CSLD Troubleshooting CSLD Block Diagrams
10-2

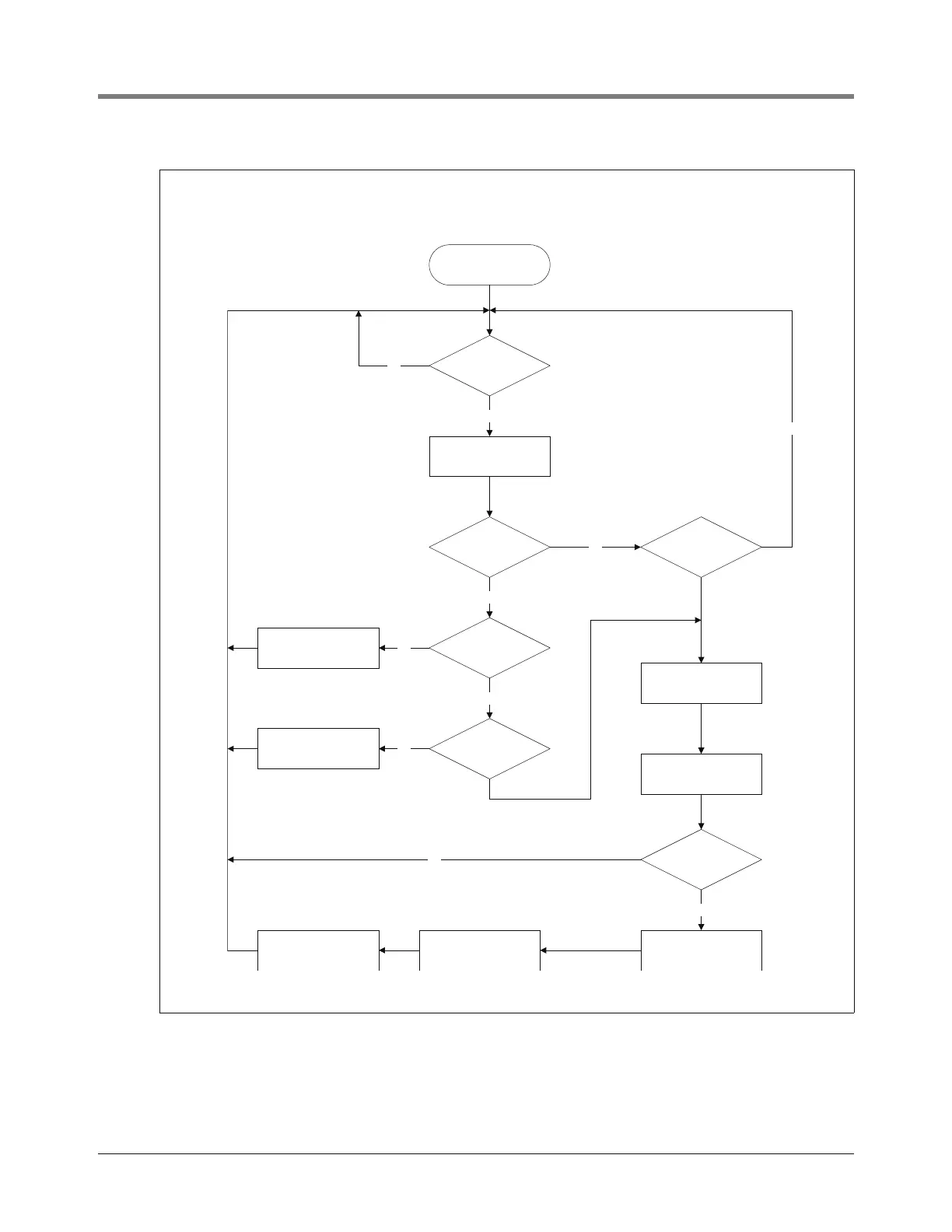

Figure 10-1. CSLD Decision Process Block Diagram
IDLE = Evaluate
Activity()
TLS SAMPLE
READY ?
Yes
IDLE = TRUE
Yes
Test In Progress
Yes
No
Test In Progress
No
Start Test
Test Duration
>3 Hours
End Test
Evaluate Test
Test Acceptable
No
Yes
Add Test to
Rate Table
Evaluate
Rate Table
Yes
Report Results
No
No
Start
CSLD
Yes
Store TLS Sample
No
