13110331-01 - 5/20
PHTM II
Installation, Operating & Service Instructions
Preparing Boiler
Remove boiler and miscellaneous parts carton from
outer shipping carton.
CAUTION
Boiler Damage.
Do not attempt to lift boiler using water or gas
pipe connection as hand holds.
!
CAUTION
Boiler Damage.
Do not drop boiler. Damage to boiler can result.
CAUTION
Heavy Object.
Boiler weighs up to 130 lb (59 kg). Two people
are required to lift boiler onto wall mounting
bracket. Ensure wall bracket is anchored
to structure capable of supporting weight of
boiler and attached piping when filled with
water. Areas subject to earthquakes may have
special requirements that take precedence over
requirements in these instructions.
!
!
Unpack Boiler

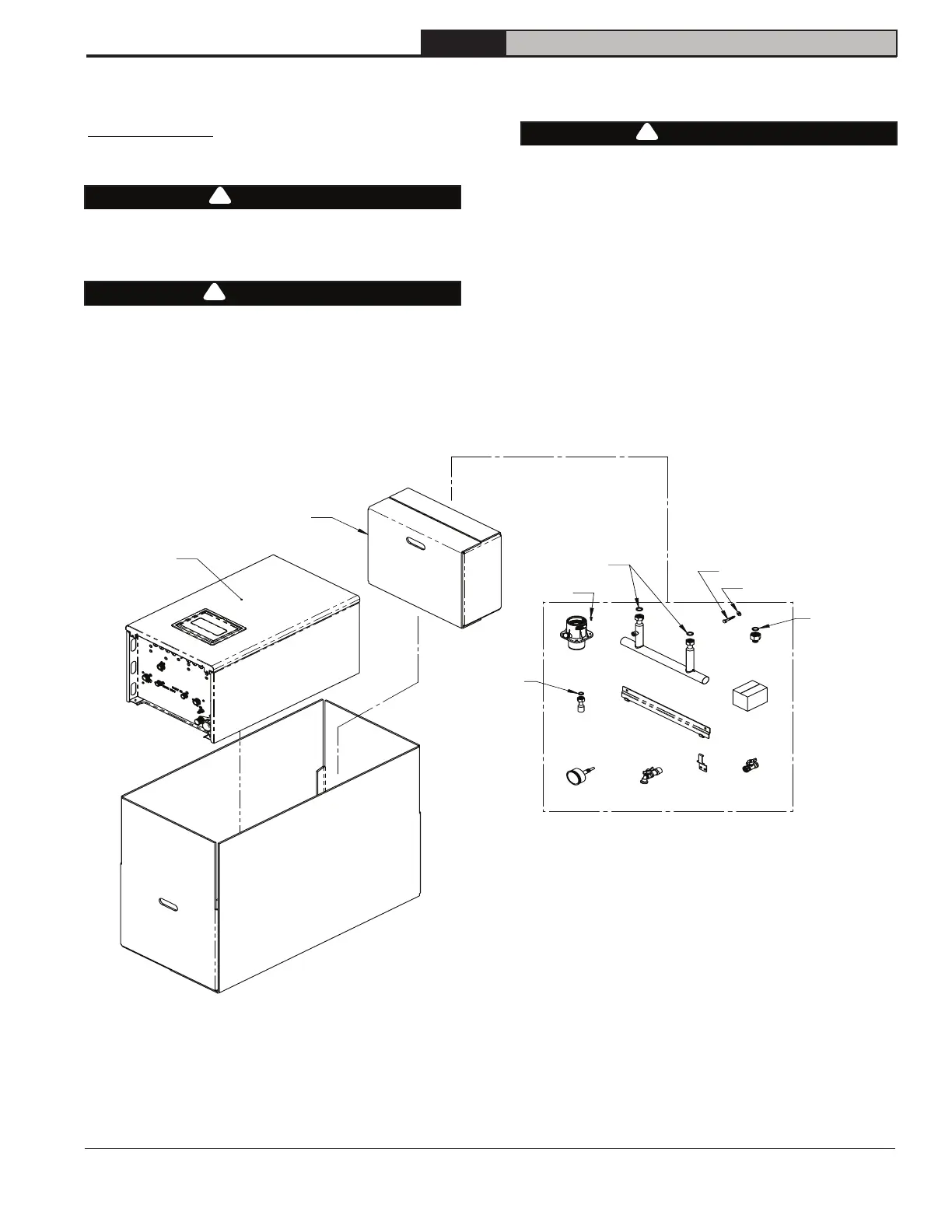

Figure 6-1: What's in the Box
Boiler
Misc. Parts
Carton
Wall
Retaining
Clip (2X)
Wall Hook
DHW
Connector (2X)
Gasket (2X)
(1/2" Rubber)
Header
Gasket (2X)
(3/4" Rubber)
Gas Valve
Inlet Adapter
Gasket
(3/4" Paper)
Vent
Connector
Temp./Pressure
Gauge
Lag Screw (4X)
Screw (4X)
Drain
Valve
Safety
Relief
Valve
Gas
Shutoff
Valve
Washer (4X)
A A
B B
4
4
3
3
2
2
1
1
