Velocity PHANTOM II - Service Parts; Exploded Views and Part Identification

86
PHTM II
Installation, Operating & Service Instructions
110331-01 - 5/20

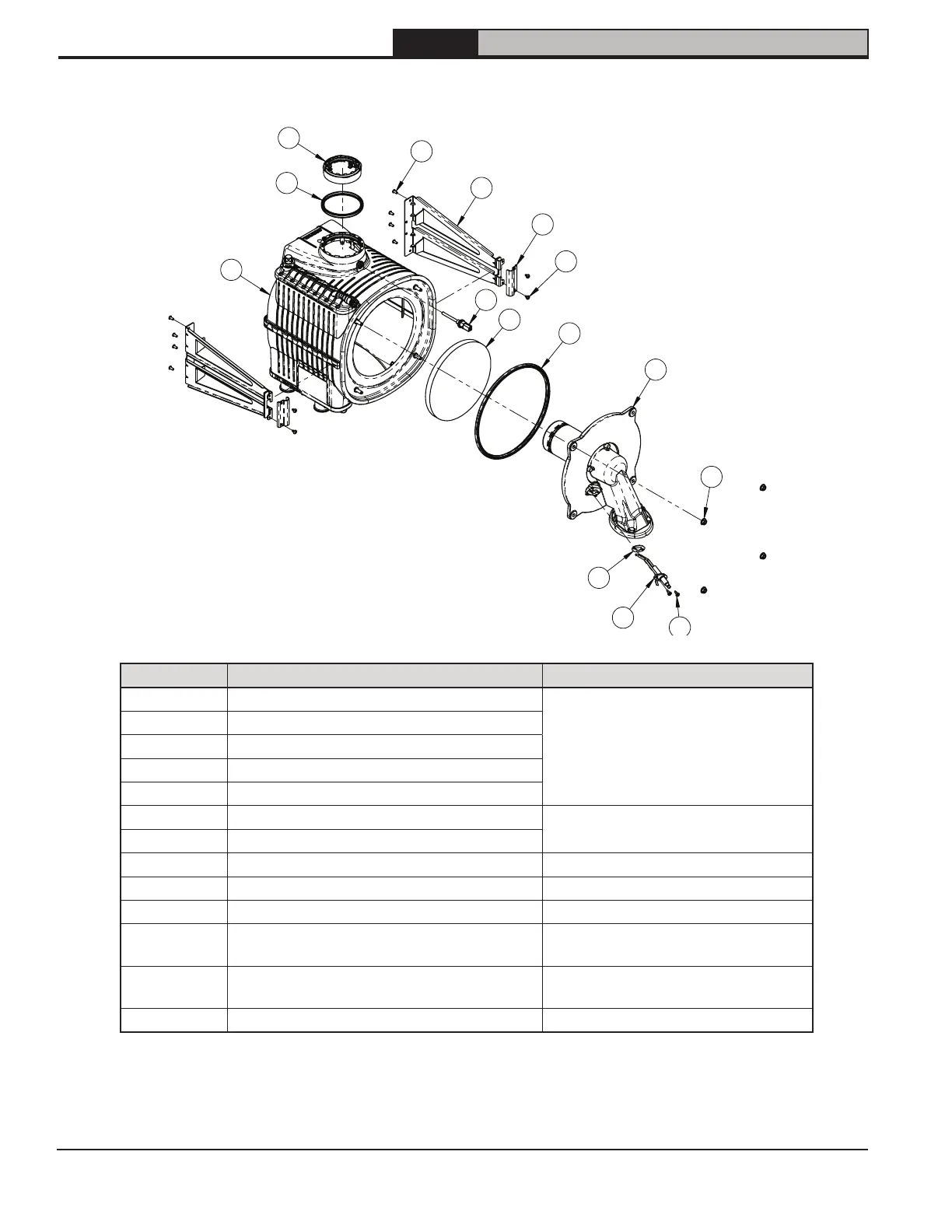

21 Service Parts
Key No. Description Part Number
1 Heat Exchanger
Contact Velocity Boiler Works;
Provide boiler serial number
2A Fixing Clamp Bracket
2B Holding Clamp
2C Pop Rivet 5/32 x 3/16 in. (.126-.187 Grip)
2D 10-32 x 1/2 in. Thread Cutting Screw
3A Flue Outlet Gasket
105882-01
3B Flue Adapter 3" to 2"
4 Flue Temperature Sensor 105883-01
5 Rear Target Wall Insulation 105651-01
6 Burner Door Gasket 106030-01
6, 7 Burner Door Assembly (includes burner
ignitor/flame sensor, gasket and hardware)
110575-01
8A, 8B, 8C
Ignitor/Flame Sensor (includes sensor,
gasket and hardware)
110576-01
9 M6 Serrated Flange Hex Nut Obtain locally
1
2A
2B
2C
2D
3A
3B
4
5
6
7
8B
8C
8A
9
