Network Camera User’s Guide
9/83
Connections

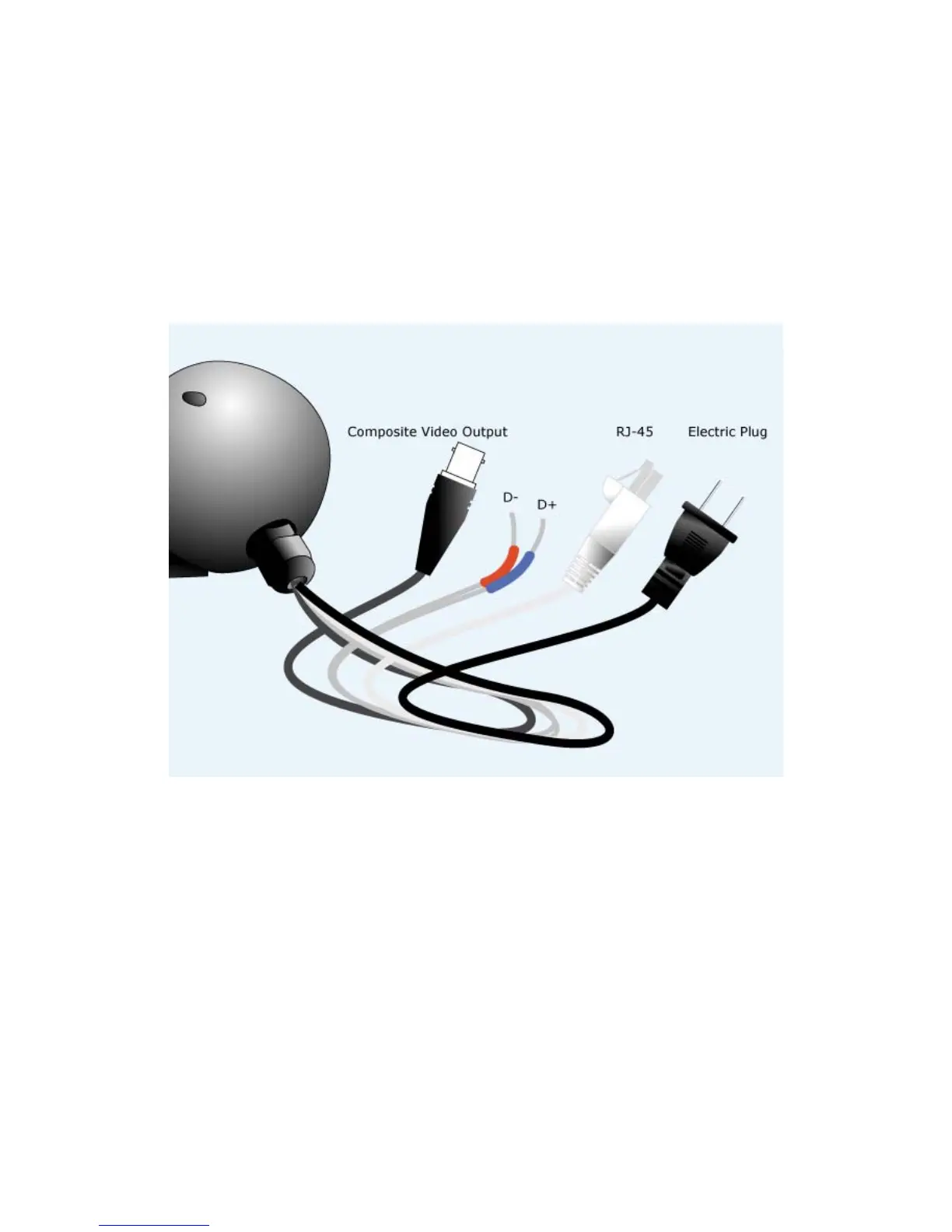

Rear Panel Connections:
1. RS-485: To connect to an indoor/outdoor Pan/Tilt scanner unit.
Definition of the RS-485:
Orange: D-
Blue: D+
2. LAN port: To connect to PC or Hub.
The LAN socket is an RJ-45 connector for connections to 10Base-T Ethernet or
100Base-TX Fast Ethernet cabling. This Ethernet port built NWay protocol can detect or
negotiate the transmission speed of the network automatically. Please use Category 5
“straight through” cable to connect the Network Camera to a 100Mbps Fast Ethernet
network switch or hub.
