MECHANICAL INSTALLATION
B000856

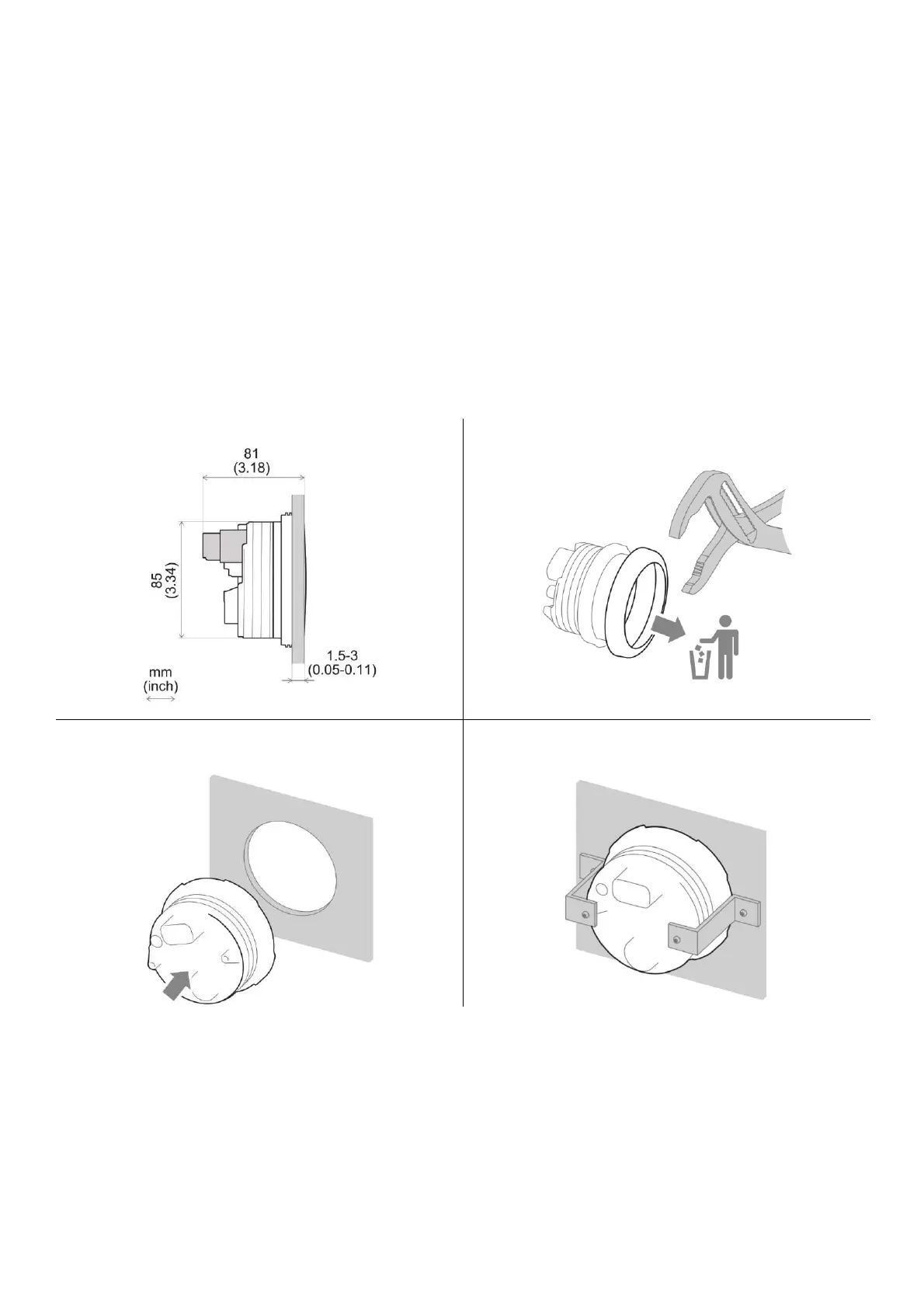

FLUSH MOUNTING
1. Create a circular hole in the panel considering
the device dimensions. [
A
]
2. Remove the spinlock.
3. Remove the bezel using slip joint pliers. [
B
]
Note
: the bezel cannot be used after removal
since it can be damaged.
4. Insert the instrument into the drill hole from
the back. [
C
]
5. Adjust the instrument so that the gauge is
level and fasten it to the stud bolts on the rear
side of the panel, using the assembly kit
accessories. [
D
]
6. Insert the connector
A B
C
D
