ELECTRICAL INSTALLATION
B000856
CONNECTIONS DIAGRAMS

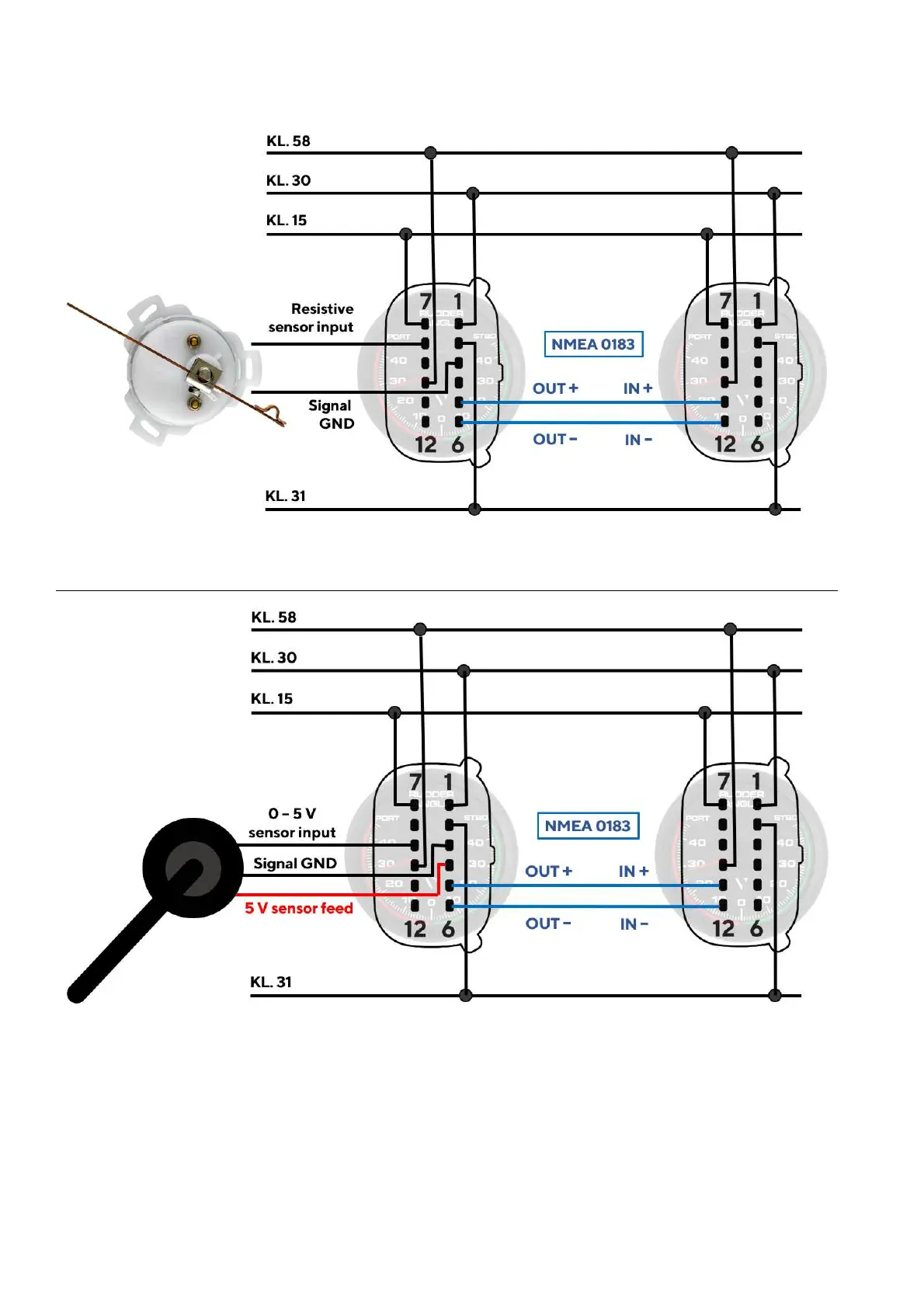

Connections diagram for resistive rudder angle
sensor
and second gauge connected via NMEA 0183
Connections diagram for
0
–
5 V
rudder angle sensor
and second gauge connected via NMEA 0183
