MECHANICAL INSTALLATION
B000856
INSTALLATION WITH SPINLOCK

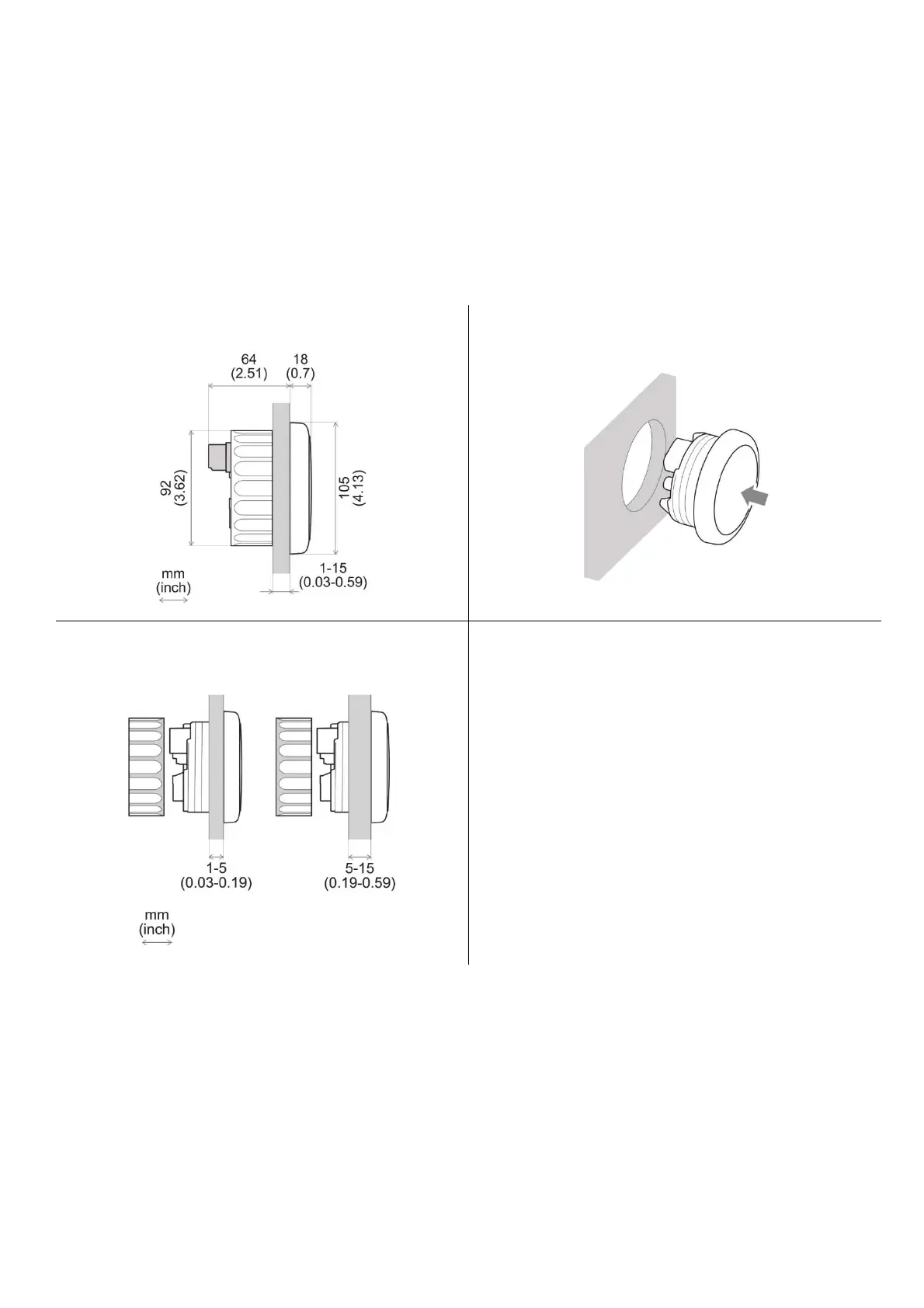

1. Create a circular hole in the panel considering
the device dimensions. [
A
]
2. Remove the spinlock and insert the device
from the front. [
B
]
3. Adjust the spinlock ad shown in picture [
C
]
according to the panel thickness
4. Carefully screw in the spinlock by hand at
least two turns and install the connector.
A B
C
