CONFIGURATION
B000856
CONFIGURATION
DEFAULT SENSOR CALIBRATION
0 – 5 V Sensor Rudder Position Resistive Sensor Rudder Position
0 V 40° PORT 3 Ω 40° PORT
2.5 V Center 90 Ω Center
5 V 40° STBD 180 Ω 40° STBD
CALIBRATION ADJUSTMENT
calibration of the sensor, a
three-steps procedure is implemented.
It is required to steer the rudder angle sensor to three key
positions (20° STBD, CENTER and 20° PORT) in order to store
the sensor reading at these points.

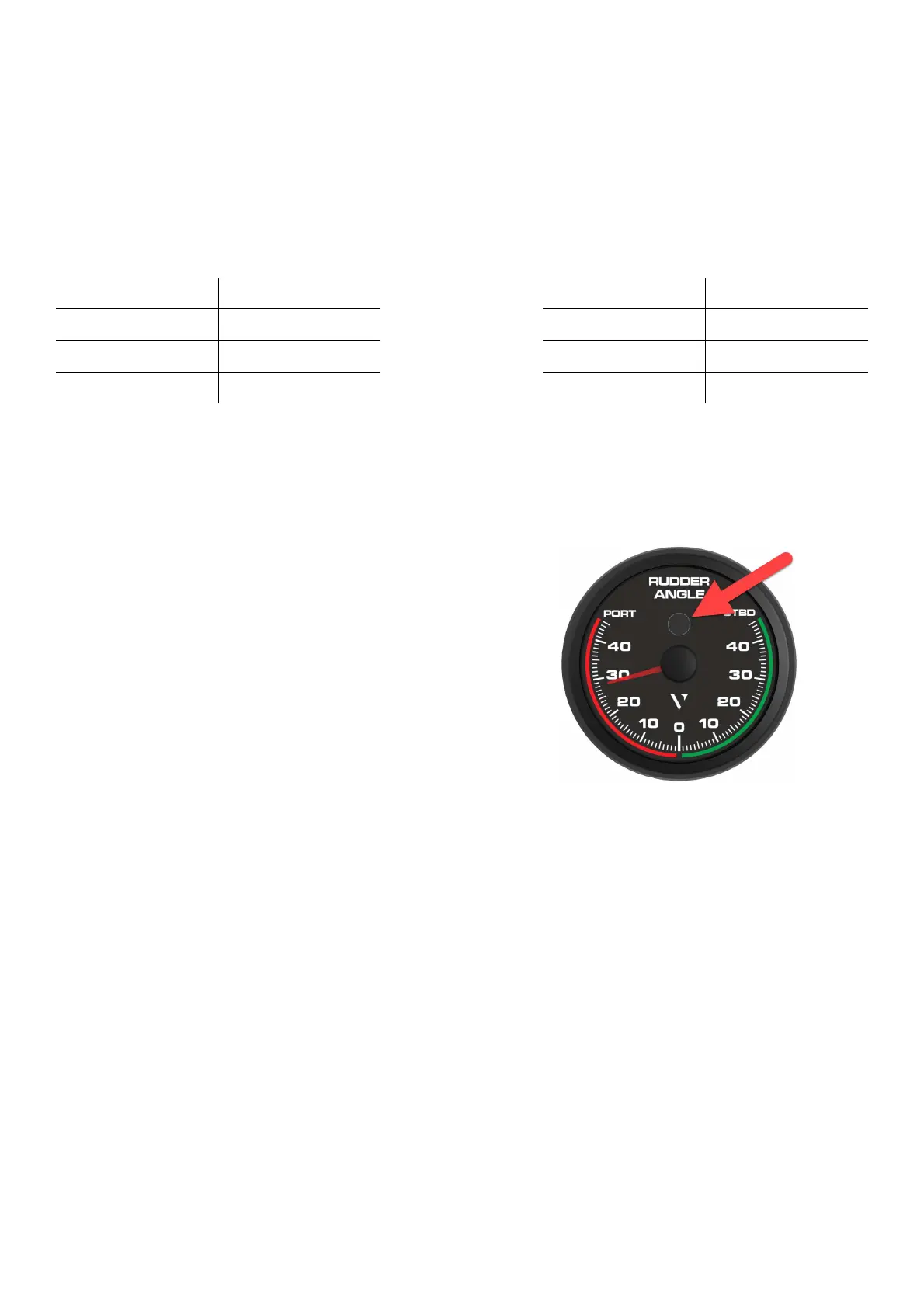

The embedded infrared pushbutton placed above the pointer
(see picture) must be used to confirm each step.
Simply near your finger to the infrared sensor area for more
than two seconds [
A
] to activate the pushbutton.
