ELECTRICAL INSTALLATION
B000856
ELECTRICAL INSTALLATION

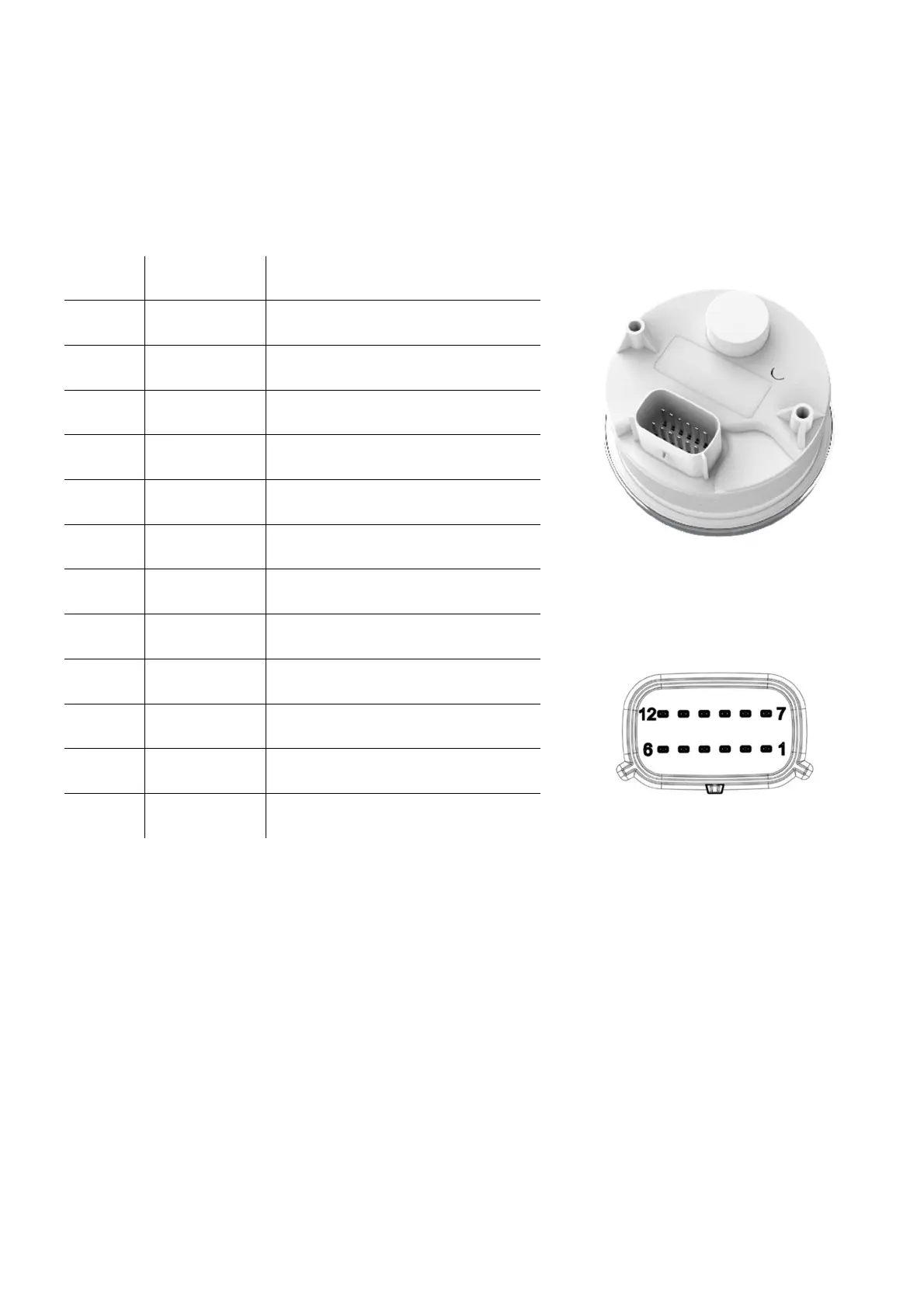

PINOUT
Pin No. Wire color Description
1 Red KL. 30 – Battery Power 12 / 24 V
2 Black KL. 31 – Ground
3 White Signal GND
4 Green 5 V output (Sensor feed)
5 Blue NMEA 0183 OUT +
6 Blue / White NMEA 0183 OUT -
7 Yellow KL. 15 – Ignition
8 Grey Resistive sensor input 0 – 400 Ω
9 Brown 0-5 V sensor input
10 Orange KL.58 – Illumination
11 Light Blue NMEA 0183 IN +
12 Purple NMEA 0183 IN -
Device rear view
Molex MX150 12-poles plug
Male, product side view
