12 Remote Analogue/Digital Control
An external Analogue/Digital control can be used to operate the Vantage 3000 C & P range. Suitable IP66 and RS232
connectors are available for external connections.
12.1 Types of Remote Control
• Foot/Hand switch
• Analogue control:
- 0 - 10V D.C
- Remote potentiometer
- 4 – 20 mA
• RS232 control

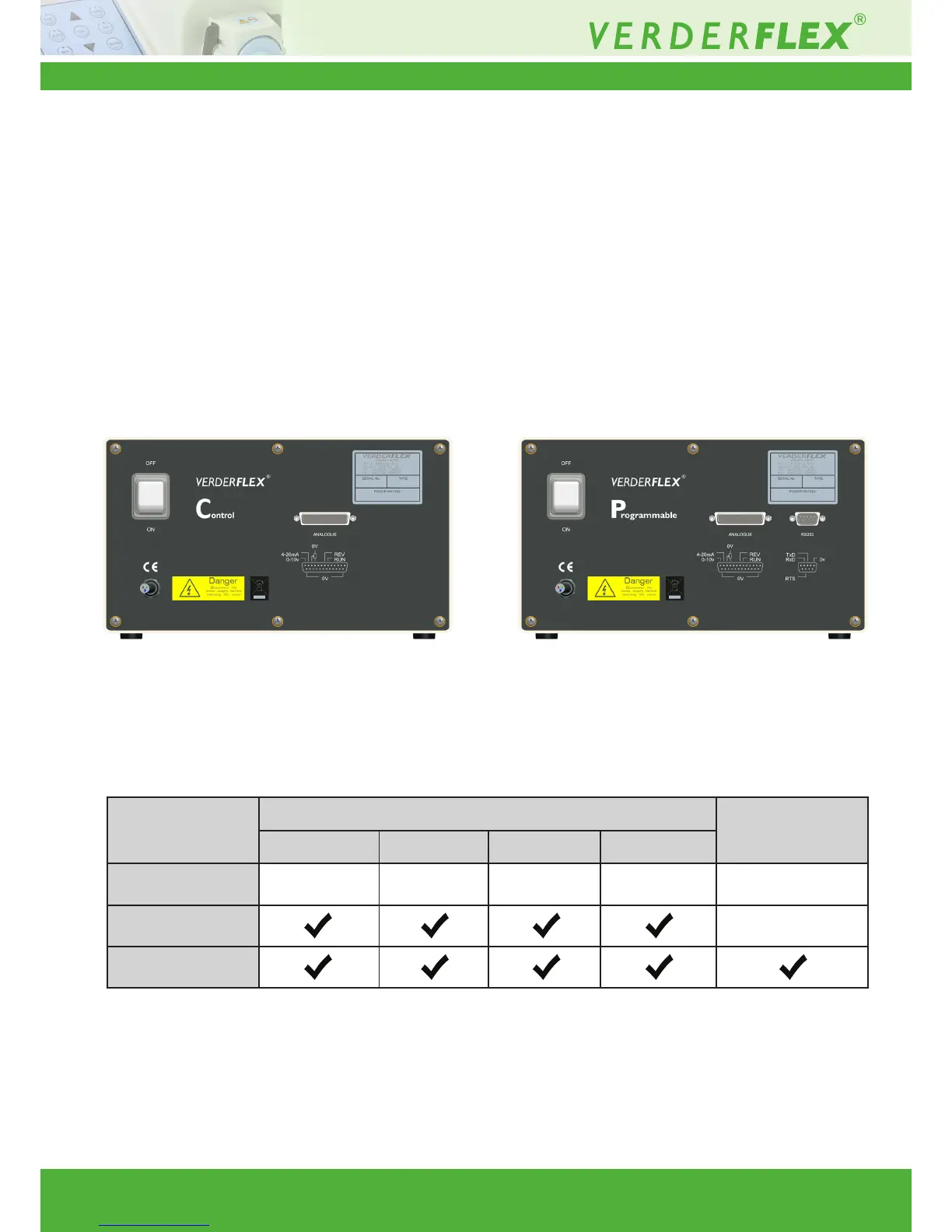

12.2 Layout of Back Plate
Figure 4 Back Plate – Vantage 3000 C Figure 5 Back Plate – Vantage 3000 P
12.3 External Controls on Different Models
The control methods featured on each model are as listed below:
Model
Analogue/Digital Control
RS232 Control
Footswitch 0-10V d.c 4-20mA 0-5V
Vantage 3000 B
Vantage 3000 C
Vantage 3000 P
Table 11 Models & Control Features Available
