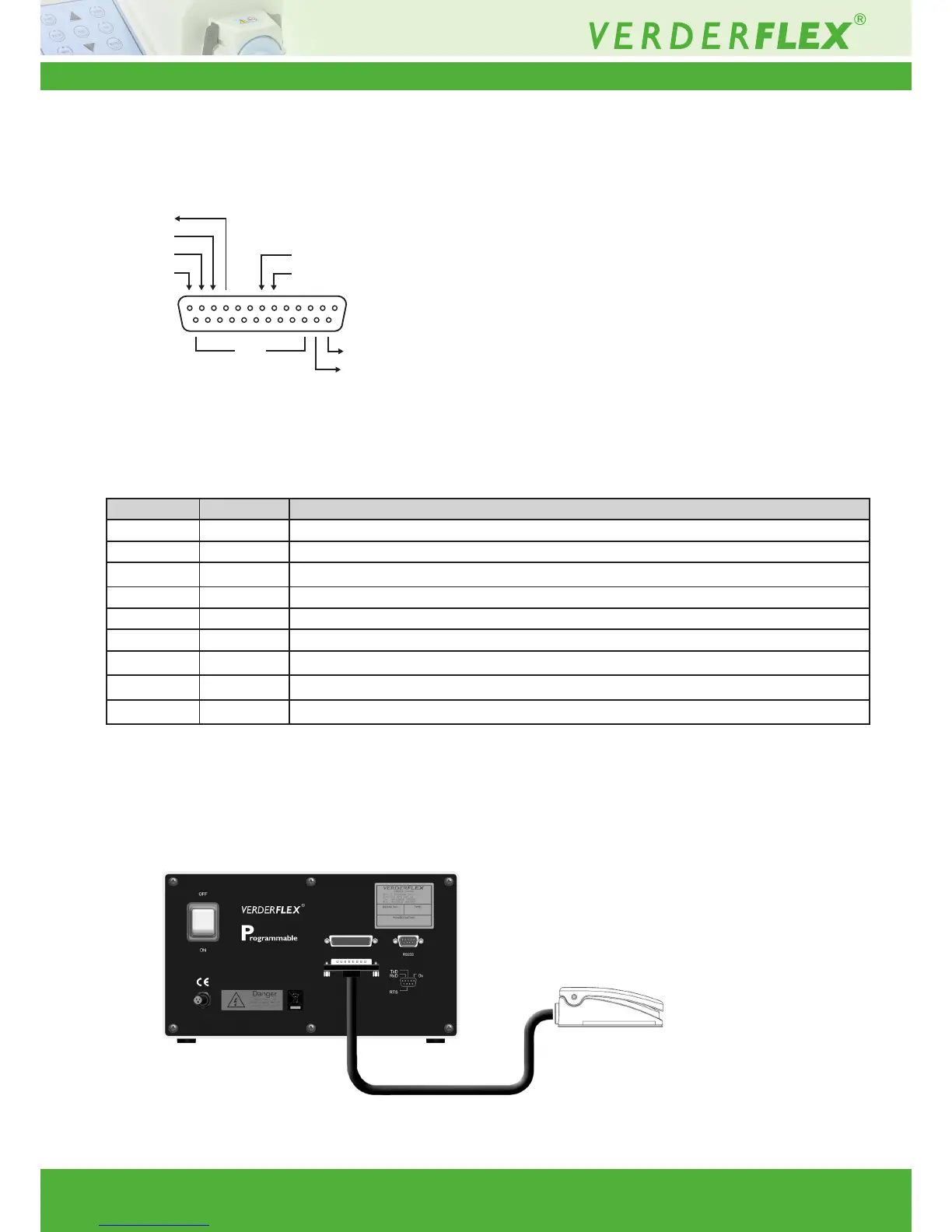

12.4 Analogue Connector
• Connector Layout
Figure 6 25 Way ‘D’ Type Connector
• Connector Description:
12.5 Foot /Hand Switch Control
Foot switches can be used to remotely turn the pump on and off, freeing the hands to perform other operations or
providing ergonomic improvement at a workstation.
Figure 7 Connecting the Footswitch
PIN I/O FUNCTION
6 IN FORWARD RUN INPUT
7 IN REVERSE RUN INPUT
10 OUT 5 VOLT SUPPLY (to potentiometer)
11 IN 0-5 VOLTS INPUT
12 IN 4-20mA INPUT
13 IN 0-10 VOLTS INPUT
14 OUT RUNNING OUTPUT (5V)
15 OUT STOPPED OUTPUT (5V)
16 to 25 OUT 0 VOLTS (internally connected to zero volts in the pump)
Table 12 Analogue/Digital Connector Pins
Footswitch
25 way “D” connector
Vantage 3000
13
25
1
14
5V
0-5V
4-20mA
0-10V
REV I/P
RUN I/P
RUN O/P
OV
STOP O/P
