12.5.1 Connecting the Foot Switch
Connect the footswitch to the port marked “Analogue” of the Vantage 3000. (Refer g.3)
Only the user can be aware of all conditions and factors present during installation, operation, and maintenance
of a foot switch and surrounding work area. Therefore, only the user can determine which footswitches and which
point-of-operation safeguards can properly be used in a particular application or work station.

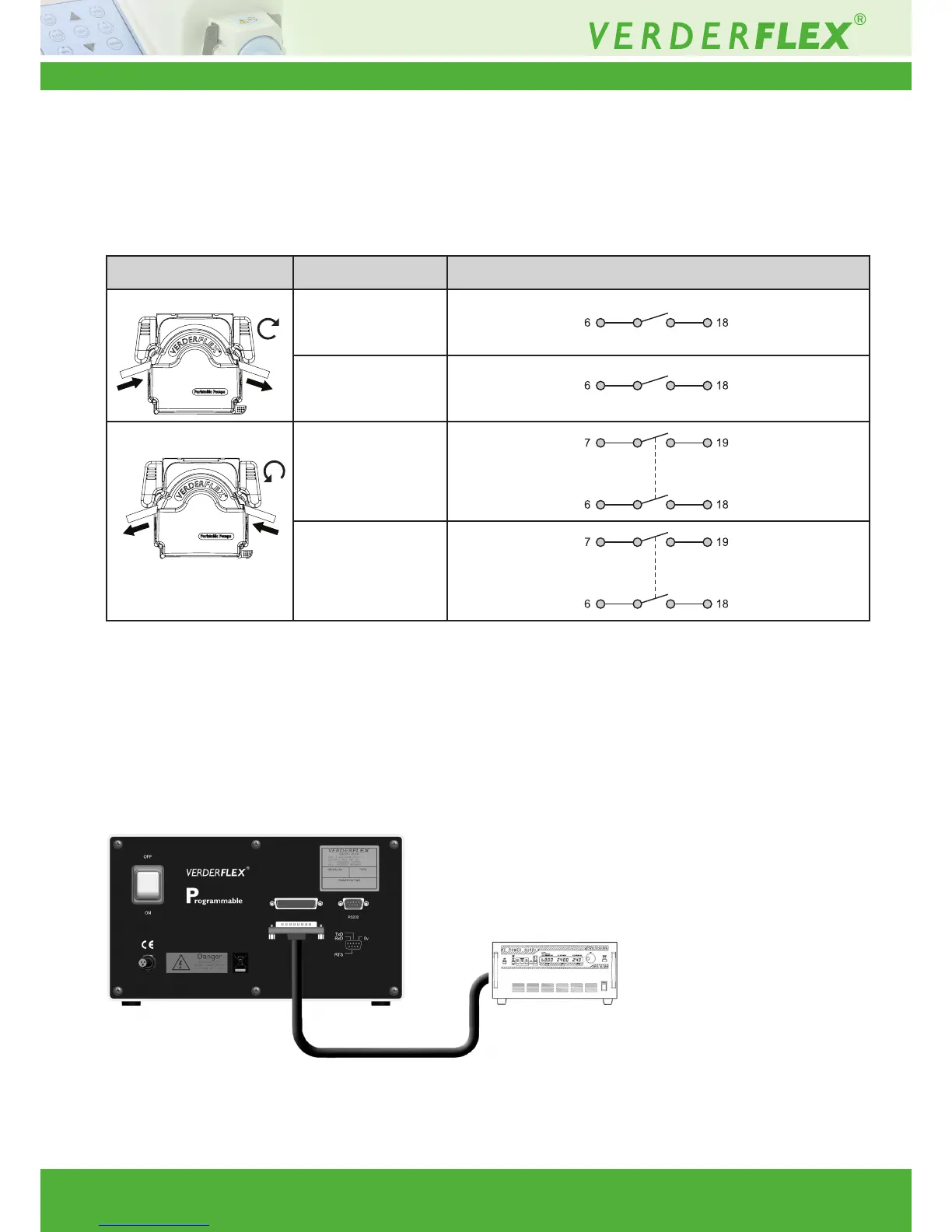

Figure 8 Connecting Variable Voltage/Current Source
12.6 Analogue Control
Analogue control can be used to remotely control the pump speed. 0-10V or 4-20mA can be generated by
a suitable transducer or a process controller such as a PLC. Potentiometer control utilizes the 5 volt source from
pin 10 on the 25way “D” connector and pin 11 as a 0 – 5 volt input as shown in Table 10.
Function Connection
Clockwise Started CW
Stopped CW
Counter Clockwise Started CCW
Stopped CCW
Variable Voltage/Current
source
25 way “D” connector
Vantage 3000
Table 13 Pin Function & Connection
