12.6.1 Connecting Analogue Control Systems
Connect the analogue control device to the Analogue port of the Vantage 3000 as shown in g 3.
Function Connection
Clockwise Started CW
Stopped CW
Counter Clockwise Started CCW
Stopped CCW
IP 66 Remote speed control Speed control
0-10V d.c
Potentiometer
4-20mA

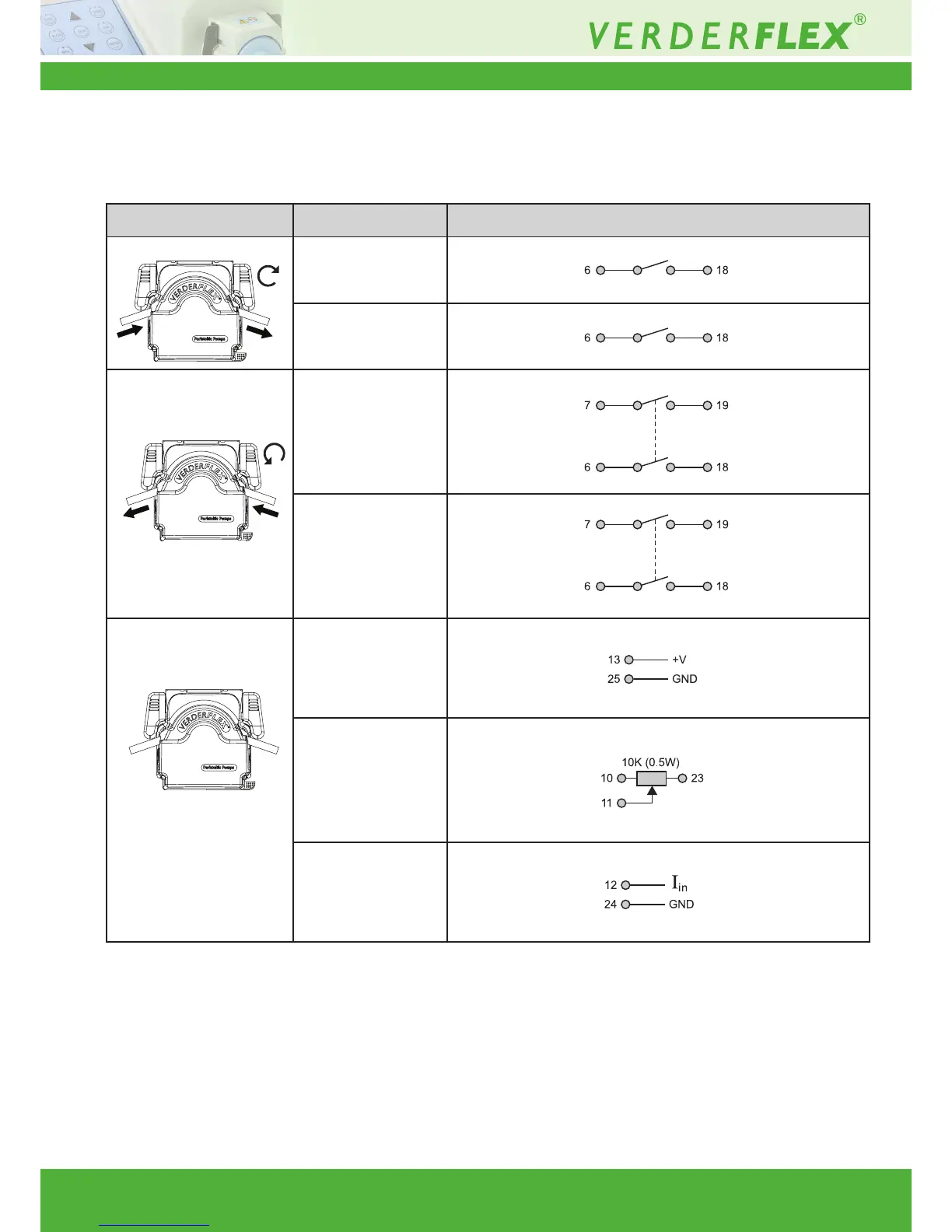

Table 14 Pin Connection for Analogue Control (refer table 2 for pin description)
