VeriFone Forecourt Controller Interface User Manual

Forecourt Controller Interface Installation Guide 9
August 11, 2016
Wayne Sites
If there is a Wayne distribution box, disconnect all the dispenser control cables.
The terminals on the distribution box are marked (
+) and (–); mark the positive
(
+) wires. The dispenser control cables will be reconnected to the FCI. Also,
disconnect the cables that go to the Electronics Cabinet.
Remove the distribution box. It is not used with the FCI. The FCI box can be
mounted in the same location.
Remove the Electronics Cabinet and all the cables connected to it. It is not
reused.

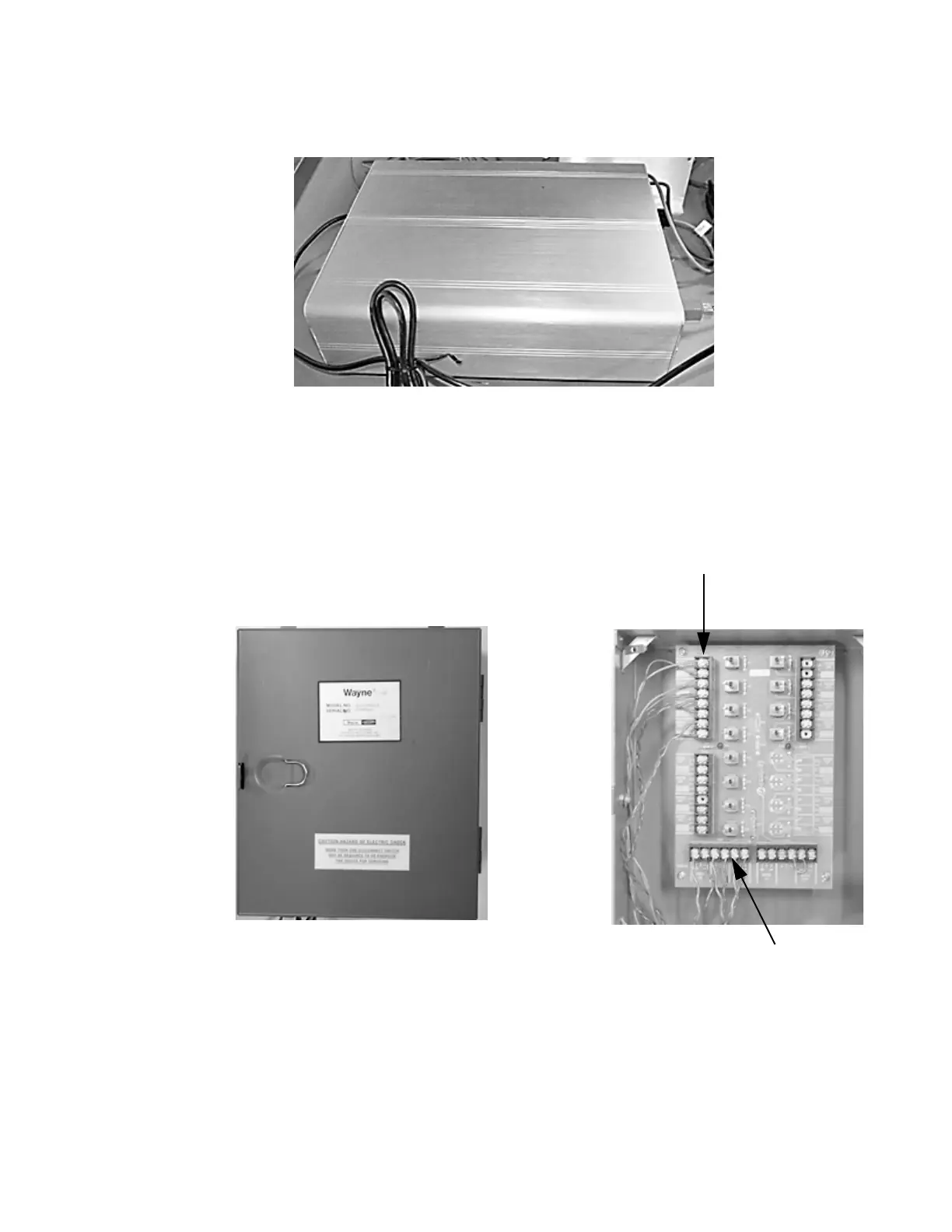

PAM
Dispenser Control Cables
Cables to Electronics
Cabinet
Outside of Distribution Box
