3. Route the dispenser control wires through the conduit fittings installed
earlier.
Connecting to Current Loop Boards
1. Locate the loop cables provided with the Current Loop Board kit. Eight
loop cables can be connected to each distribution board. Connecting all
cables will result in connections for 8 dispensers. These cables will be
spliced to the dispenser control cables.
2. Remove the black protective tips and strip I/2-inch from each wire and
twist the ends. Leave the protective tips on wires that will not be spliced
to dispenser control cables.

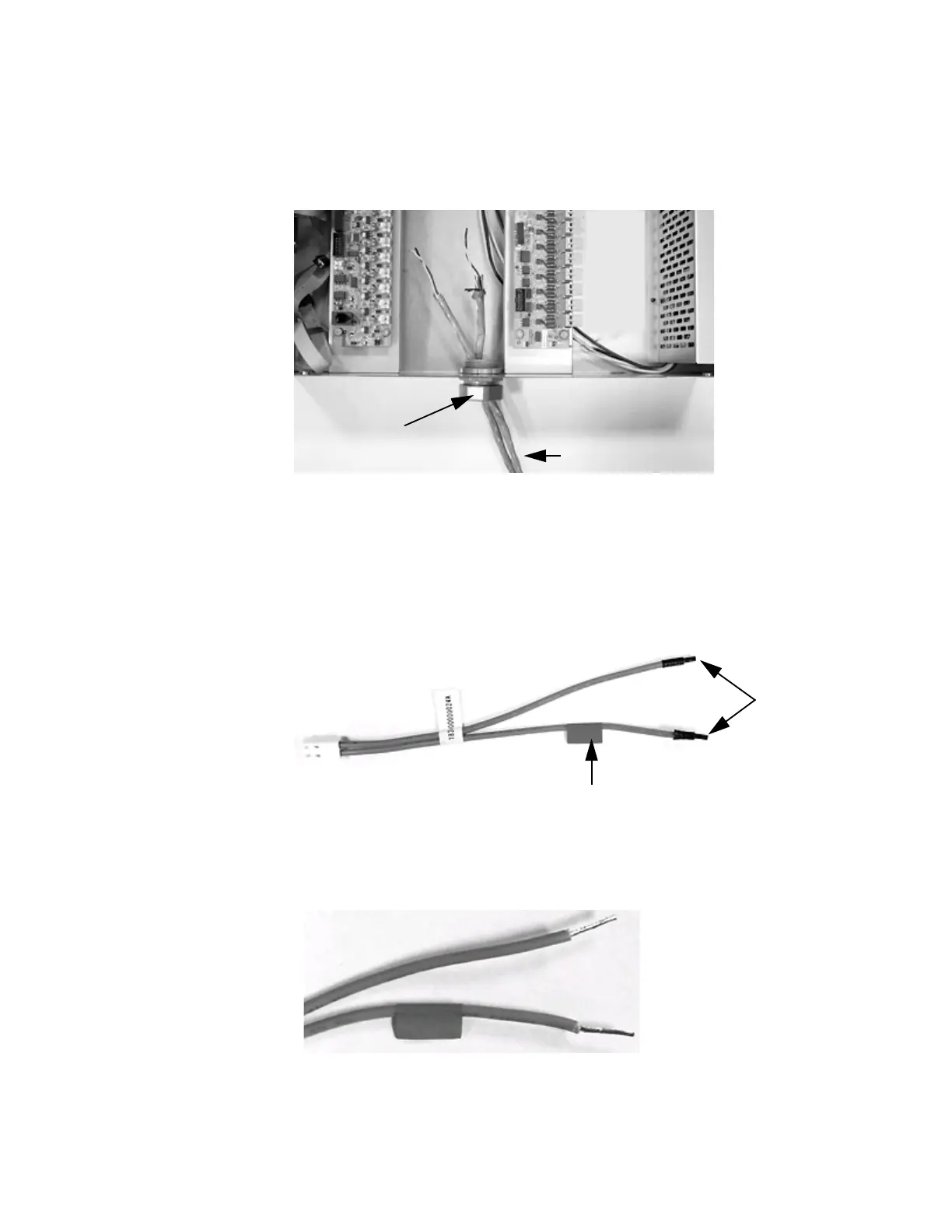

Conduit
Fitting
Dispenser Control
Wires
Positive (+) Wire
Protective
Tips
