VeriFone Forecourt Controller Interface User Manual

Forecourt Controller Interface Installation Guide 29
August 11, 2016
Connecting to a Tokheim TED

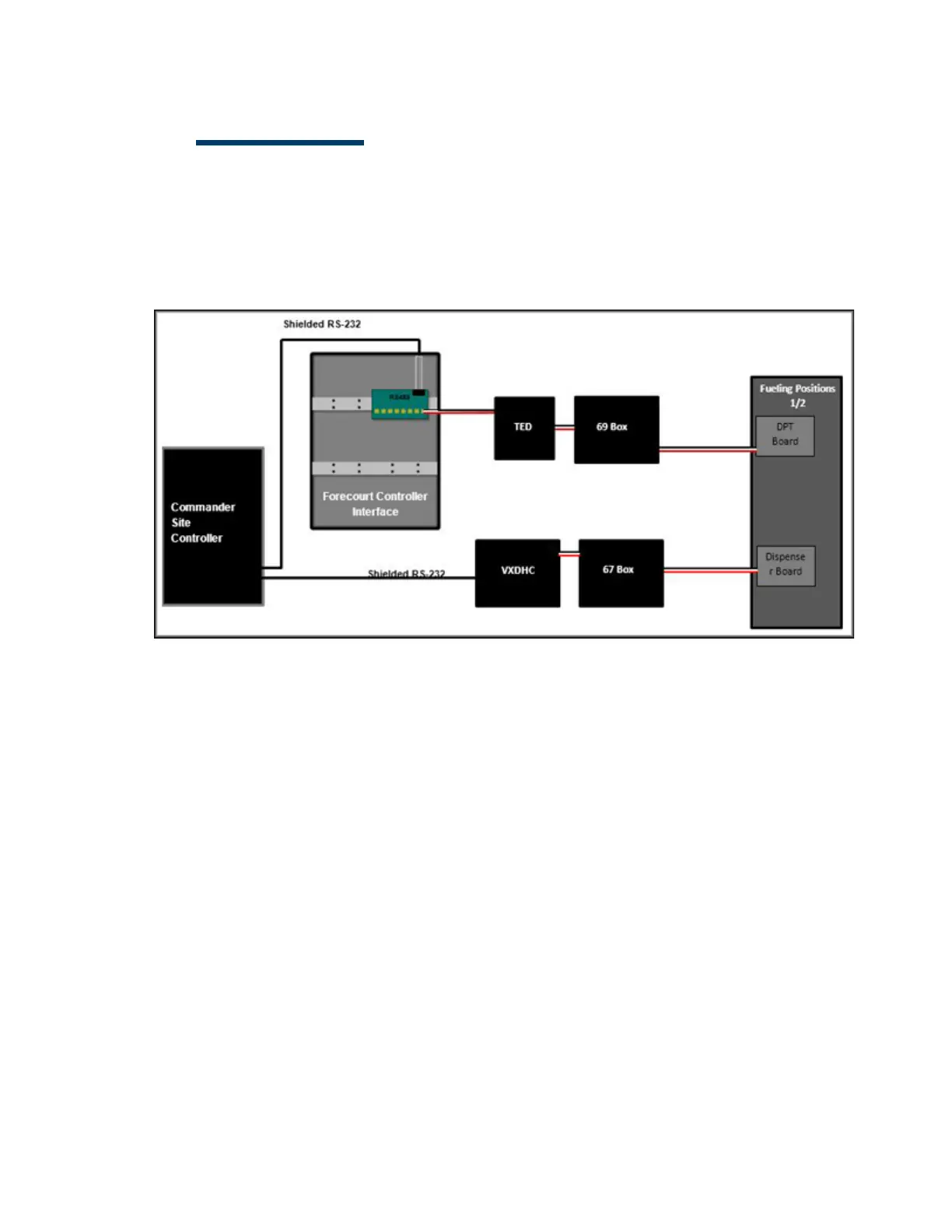

The TED will connect to a single channel of an RS485 board in the FCI. Tokheim
uses three wires for DPT connections (Positive, Negative and Ground). The single
ground wire coming into the FCI from the TED should be grounded to the lower
left mounting screw of the RS485 board.
