VeriFone Forecourt Controller Interface User Manual

30 Forecourt Controller Interface Installation Guide
August 11, 2016
Completing the Installation
This section provides instructions for closing up the box, connecting
communications cables between the Forecourt Controller Interface and the
Commander Site Controller, and connecting to the AC power supply.
1. Replace the cover on the enclosure and secure by tightening the two
thumbscrews.
2. Connect the serial cables with RJ45 connectors (provided with the
Commander Site Controller) to the RJ45 ports on the front of the FCI
box.
3. Route the serial cables to the Commander Site Controller and connect
according to the instructions in the Commander Site Controller
documentation.
Caution: When installing the cables, make sure they are protected from
damage or accidental disconnection. Route cables along a wall or
under a counter and secure with cable ties or clips. Do not route
cables near sources of possible interference, such as fluorescent
lights, microwaves, intercoms and so forth.
4. Locate the AC power cord provided with the unit.
5. Locate the AC power connector on the end of the FCI enclosure.

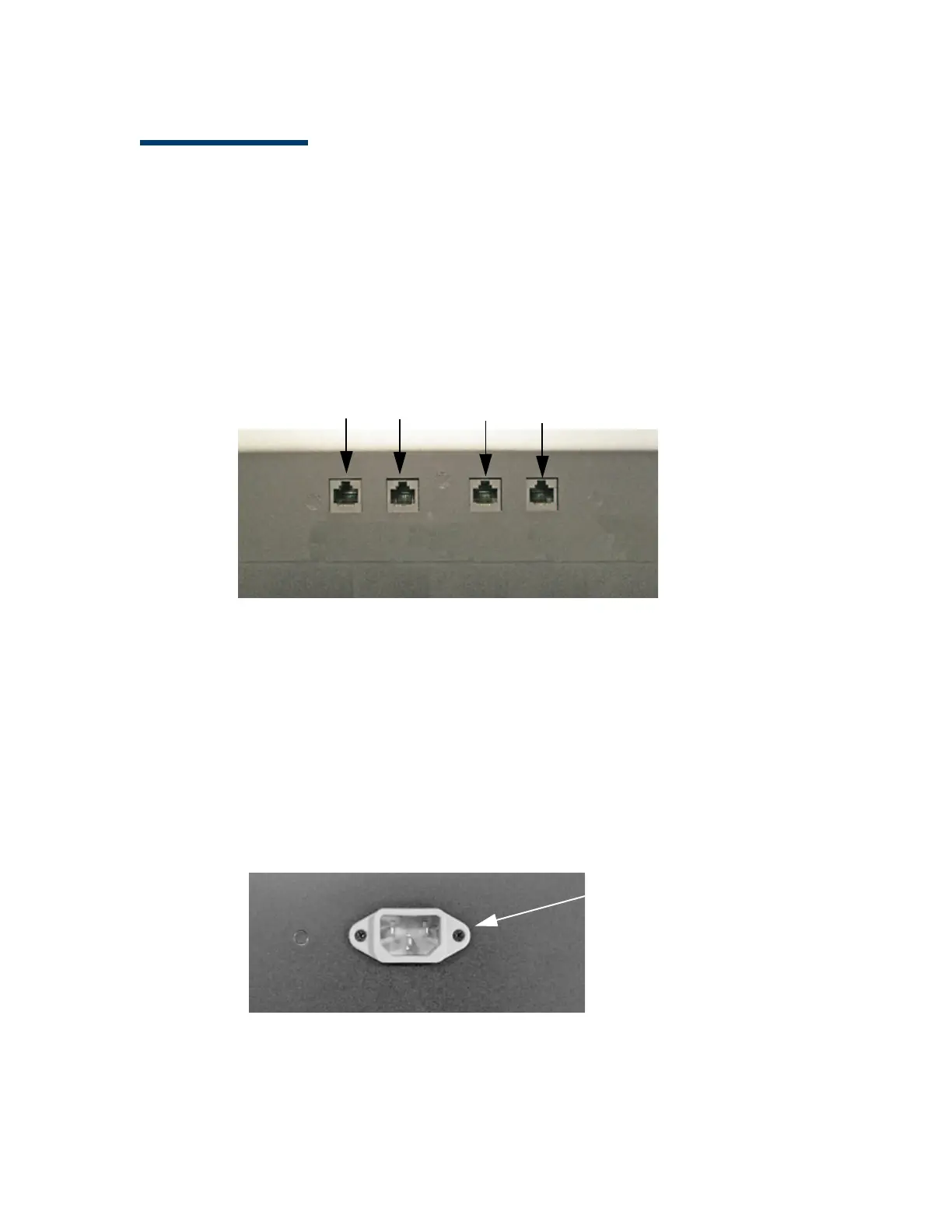

COM1 COM2 COM3 COM4
AC Power
Connector
