VeriFone Forecourt Controller Interface User Manual

14 Forecourt Controller Interface Installation Guide
August 11, 2016
Installing the Forecourt Controller Interface Box
This section describes how to install the distribution boards and mount the FCI
box on the wall.
Installing the Boards
Note: The Forecourt Controller Interface box come with one current loop
board installed. Additional boards must be ordered separately.
Installing the Current Loop Boards
The current loop boards (Kit # 29721-01) support both current loop and RS232
communications. (For RS485 communications, go to the section Installing the
RS485 Boards.)
To install the current loop boards:
1. Locate the current loop board (P/N 29521-01-R) provided with the
Current Loop Board kit.

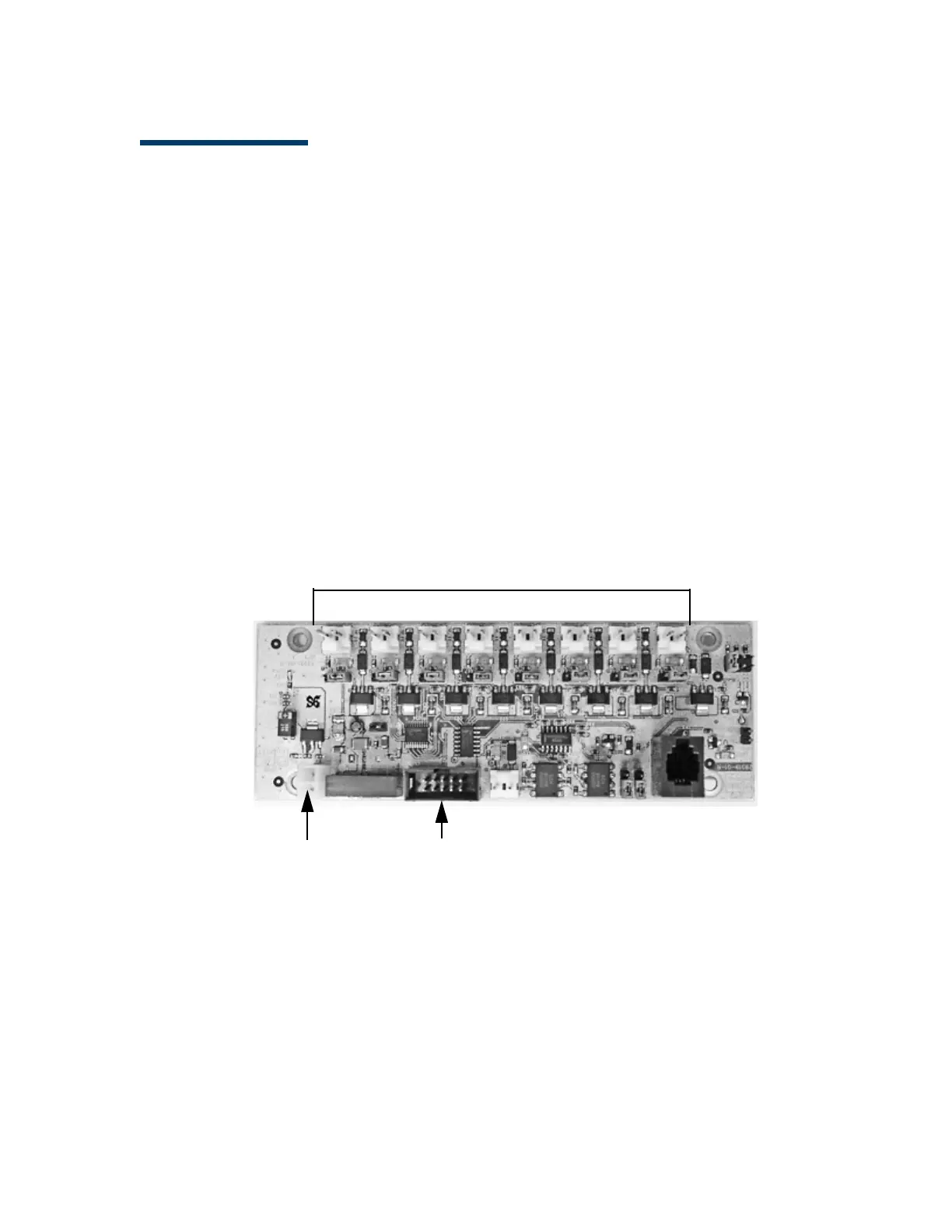

Ribbon Cable
Connector
Power
Connector
Loop Cable Connectors
