Forecourt Controller Interface Installation Guide 21
August 11, 2016
Mount the FCI box securely to the wall with toggle bolts through the pre-drilled
tabs.
To mount the FCI Box:
1. Using the box as a template, mark the hole placement for the four toggle
bolts on the desired wall location where the distribution boards can be
easily connected to the existing dispenser control cables.
COM
Ports

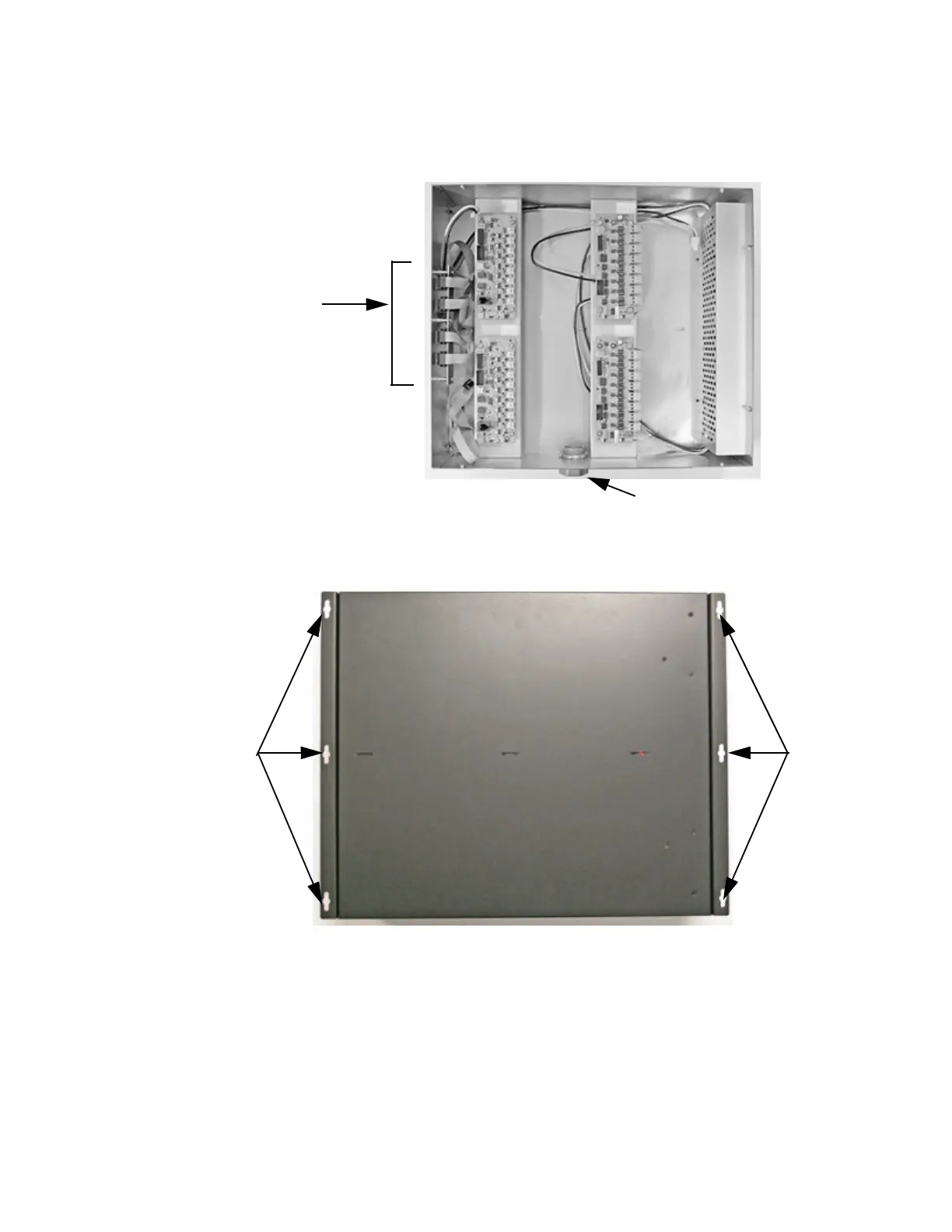

Forecourt Controller Interface Box
Conduit Fitting
Screw
Holes
Screw
Holes
Rear View
