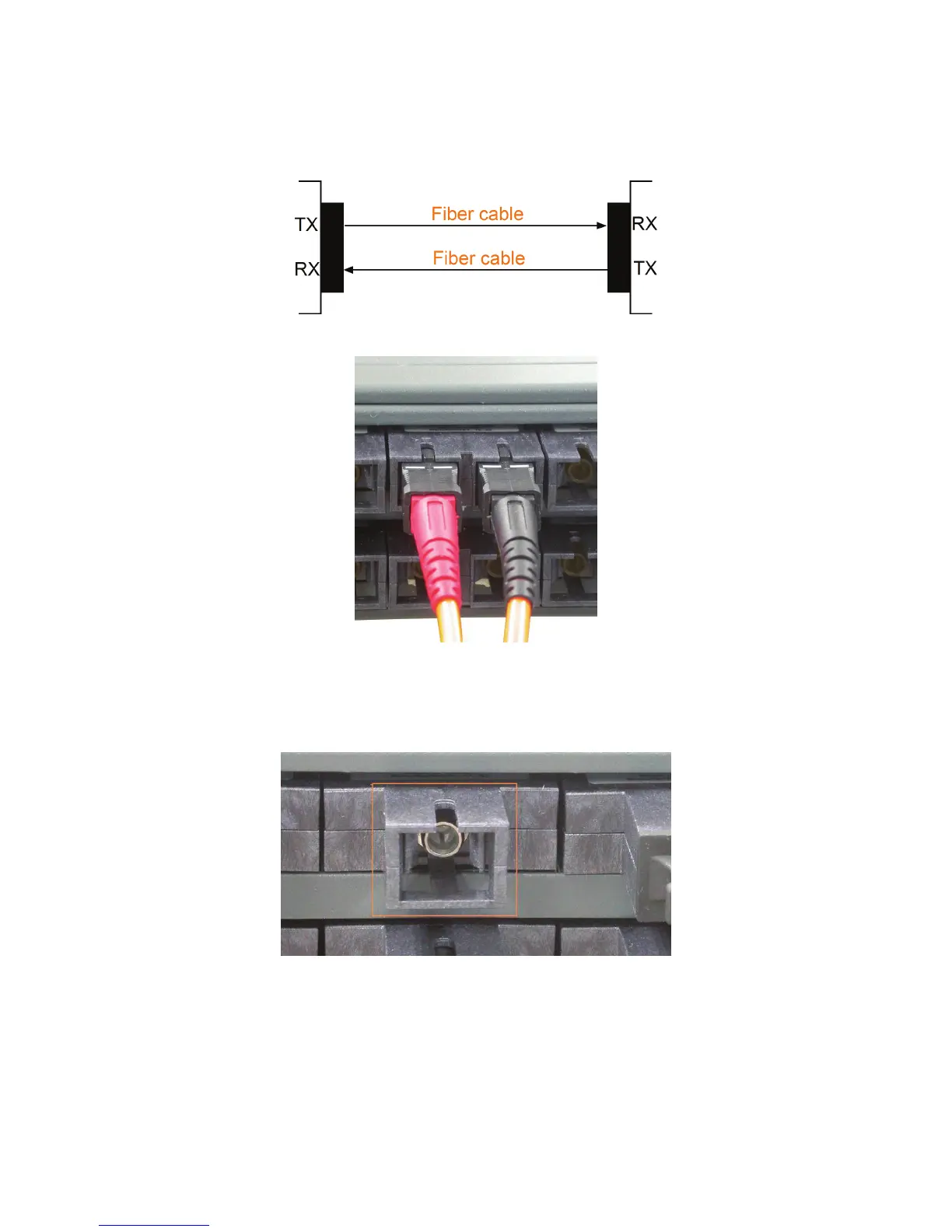

Identify the TX and RX connector before making the cable connection. Plug in the cables as shown below.
Make sure the RX-to-TX connection rule is followed between two ends of the connected cable.
2.12 Making Fixed Bi-Di (Bi-Directional) Fiber Connections
The following figure illustrates an example of fixed Bi-Di (Bi-directional) fiber port with one SC connector.
