J-2

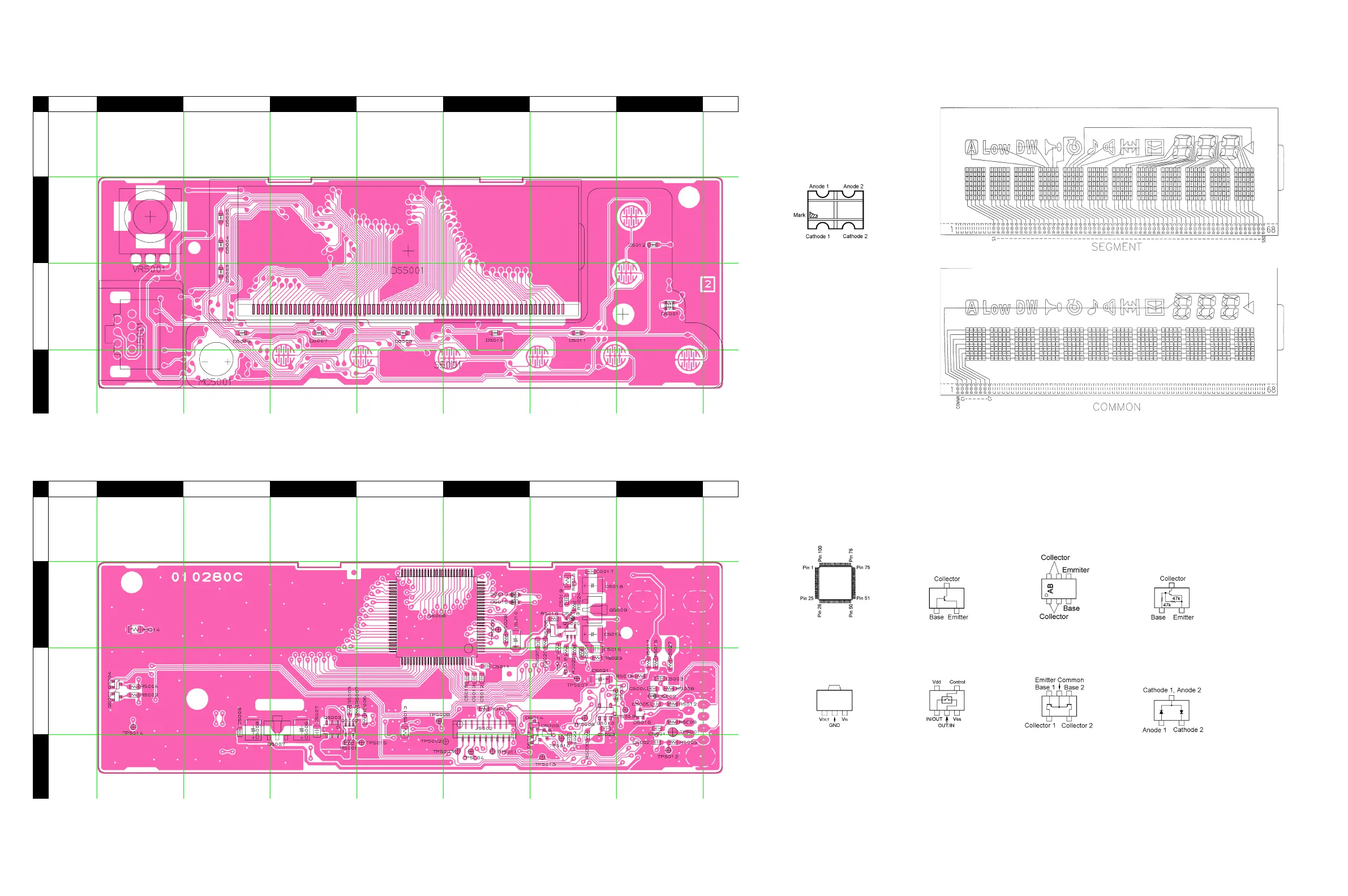

Parts Layout (Side A)
1
2
3
BA DCEFHG
ba dcefh
g
1
2
3
Parts Layout (Side B)
DTC144EE (26)
(Q5001, 5004)
CPH6102 (AB)
(Q5003)
M5278L05M
(Q5009)
M5278L09M
(Q5007)
DA221 (K)
(D5009, 5014, 5016, 5017)
TC4S66F (C9)
(Q5010)
NJU6624AFG1
(Q5008)
XP1501 (R5)
(Q5002, 5005)
2SA1602A (MF)
(Q5006)
LCD
(DS5001)
FRONT-D Unit (VX-4200: Lot. 1~5)
BRPG1211C
(D5001)
