3. MACHINE SPECIFICATION
General specifications
Product description: V700 series.
Country of origin: The Netherlands.
CE marking and identification
The product has a CE mark, to indicate that it complies with the fundamental safety and health requirements as
written in the EU Declaration of Conformity.
The mark is located on the type plate, placed on the robot at the location shown below as well as on the inside of
the door of the control box. The type plate also shows the unique identification number of the robot, the year of
manufacture, and electrical specification.

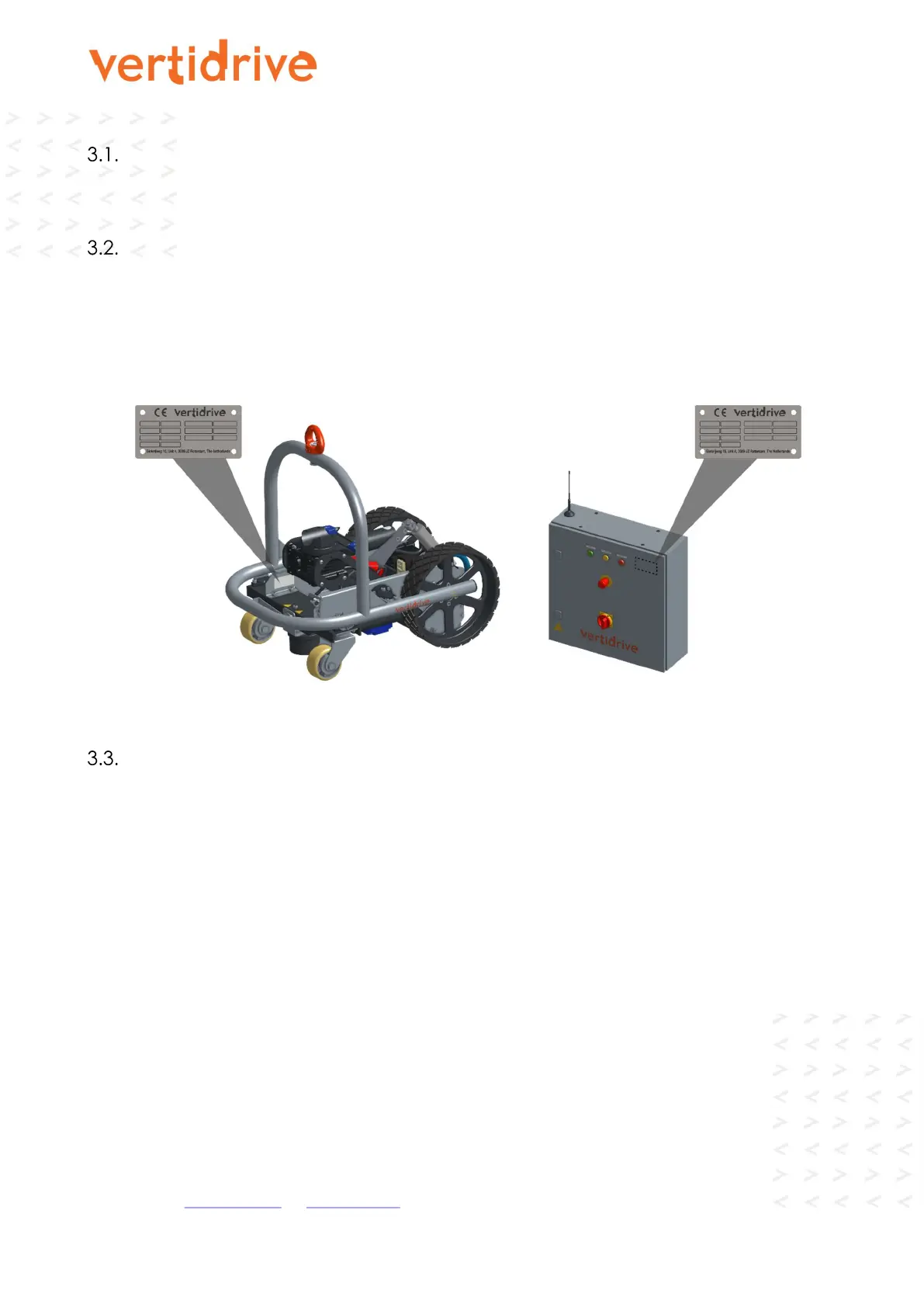

CE mark V700 series on robot and inside control box
Technical specifications
Robot
Robot dimensions l x w x h: 750 x 520 x 720 mm.
Weight: 62 kg.
Payload capacity: 180 kg max.
Driving speed: max 4,9 m/min.
Swing arm
Torque capacity (horizontal): max 150 Nm (15 kg at 1m arm length).
Thrust capacity (vertical): max 600 N (60 kg force) at 1m arm length.
Swing arm speed: max 30 °/s.
Umbilical
Umbilical dimensions: ø18mm, length 50 m.
Umbilical weight: 25 kg (0.5 kg / m).
Umbilical extension: Max 100m (use 2
nd
322035 umbilical + 323018 extension kit).
Control box (CB4.0)
Dimensions h x w x d: 600 x 600 x 260 mm (600 x 690 x 260 mm with cooling).
Weight: 35 kg (44 kg for ‘high temperature’ systems with cooling).
