Chapter 2 Installation Instruction 5
NetSure 731 A41 Subrack Power System User Manual
Connector
M6 screw
Subrack
power system
Connector
M6 screw
Battery bracket
Battery rack
Power system

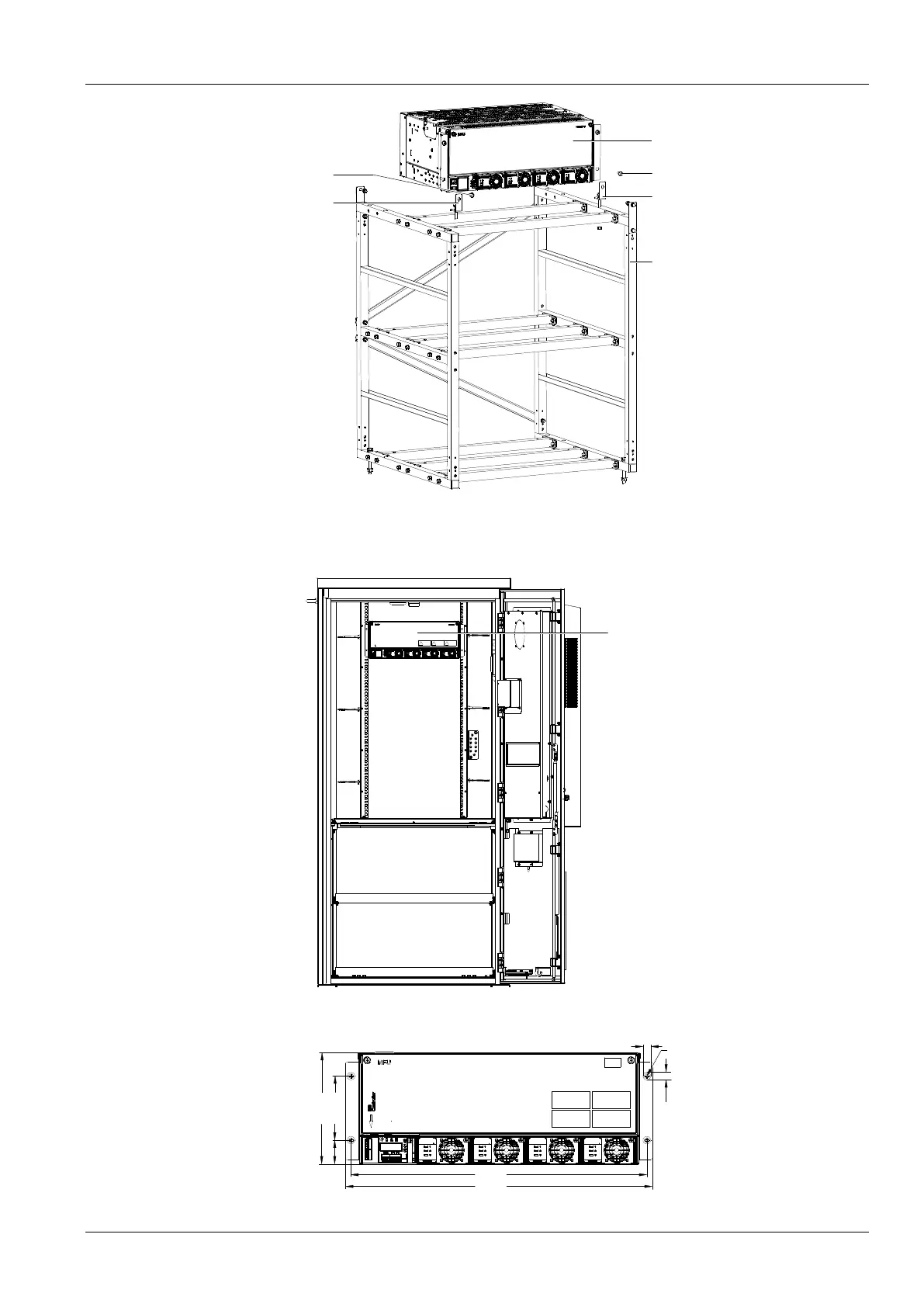

Figure 2-1 Cabinet and rack installation
Installed in cabinet
Insert the subrack power system to the matching cabinet, as shown in Figure 2-2.
电源插框
Power subrack
Figure 2-2 Installed in the cabinet system
The engineering graphics of the subrack power system as shown in Figure 2-3.
101.6
177.0
37.7
465.1
482.6
7.0
R3.5
10.0
Figure 2-3 Installation size of NetSure 731 A41 （ unit: ： mm ）
