10 VERTIV™ - Liebert
®
EFC - UM - 10040805MAN_ENG - 30.03.2023

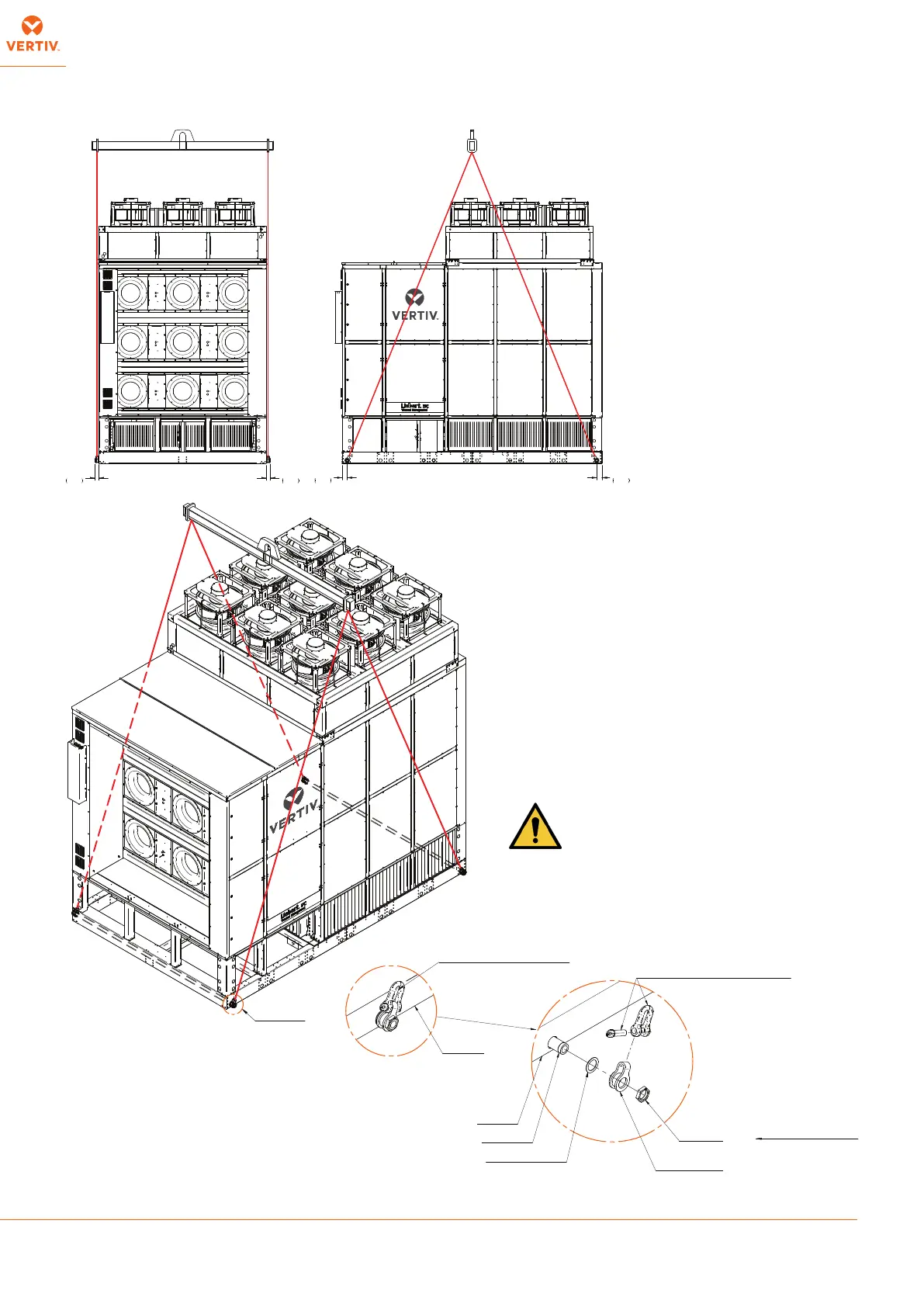

DET. "A"
FIXING NUT
LIFTING BRACKET
PROTECTION GASKET
LIFTING TUBE
LIFTING TUBES OPTION
STRAIGHT SHACKLE SIZE 25 (1") (UNI 1947)
"A" TYPE (NOT SUPPLIED WITH LIFTING TUBES OPTION)
BASEMENT
BASEMENT
70.0
2.76
70.0
2.76
90.0
3.54
90.0
3.54
SPACE TO INSERT BELT OR CHORD
DET. "A"


Do not lift the entire unit using eyebolts placed on
fan module top.
Remove lifting tubes after unit instalation.
DET. "A"
FIXING NUT
LIFTING BRACKET
PROTECTION GASKET
LIFTING TUBE
LIFTING TUBES OPTION
STRAIGHT SHACKLE SIZE 25 (1") (UNI 1947)
"A" TYPE (NOT SUPPLIED WITH LIFTING TUBES OPTION)
BASEMENT
BASEMENT
70.0
2.76
70.0
2.76
90.0
3.54
90.0
3.54
SPACE TO INSERT BELT OR CHORD
