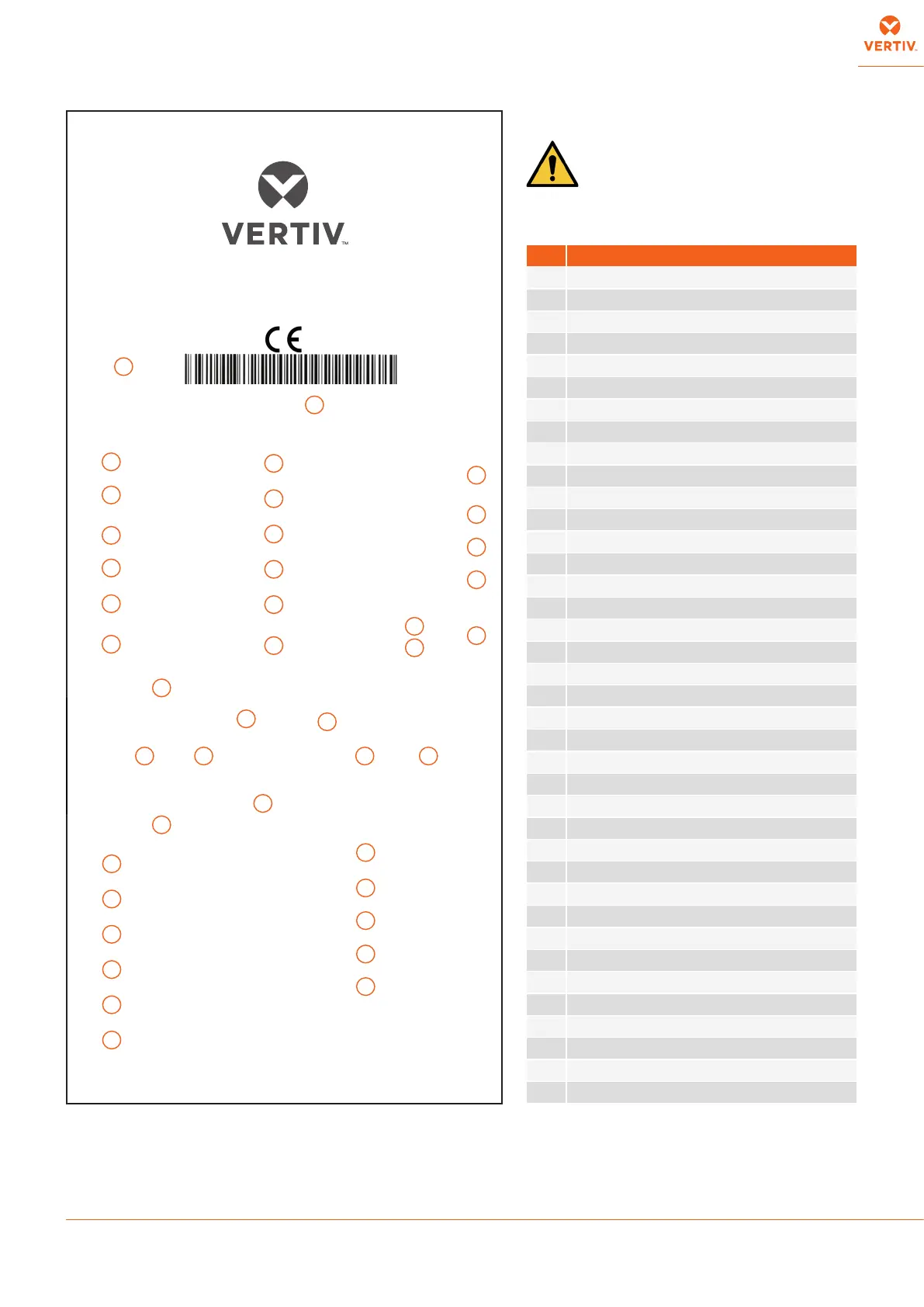

 data relevant to the unit supplied
is indicated on the inboard label (see the blank
facsimile on the left).
Data in the manual is referred to standard
      
advance notice.
 
1 Compressor Full Load Ampere [A]
2 Compressor Locked Rotors Ampere [A]
 Compressor Quantity
4 Primary Side Fan Full Load Ampere [A]
 Primary Side Fan Locked Rotor Ampere [A]
6 Primary Side Fan Quantity
7 Process Side Fan Full Load Ampere [A]
8 Process Side Fan Locked Rotor Ampere [A]
9 Process Side Fan Quantity
10 Evaporative System Pump Full Load Ampere [A]
11 Evaporative System Pump Locked Rotor Ampere [A]
12 Evaporative System Pump Quantity
 Max. Unit AC Ampere [A]
14 Max. Unit DC Ampere [A]
 Rated Peak Withstand Current [kA]
16 Rated Short-time Current [kA]
17 Refrigerant Type
18 Circuit 1 on Factory Refrigerant Charge [kg]
19 Circuit 1 on Site Refrigerant Charge [kg]
20 Circuit 2 on Factory Refrigerant Charge [kg]
21 Circuit 2 on Site Refrigerant Charge [kg]
22 High Pressure Side Maximum Allowable Pressure [bar]
 Low Pressure Side Maximum Allowable Pressure [bar]
24 High Pressure Switch Stop [bar]
 High Pressure Switch Restart [bar]
26 Low Pressure Switch Stop [bar]
27 Low Pressure Switch Restart [bar]
28 Min. Ambient Operation Temperature [°C]
29 Max. Ambient Operation Temperature [°C]
 Min. Ambient Operation Humidity [%]
 Max. Ambient Operation Humidity [%]
 Max. Hydraulic Circuit Pressure [bar]
 Unit Net Weight [kg]
 Manufacturing Date
 Model
 Serial Number
 Power Input
 Refrigerant’s Global Warmig Potential
model
SERIAL N.
VOLTAGE-PHASE-FREQUENCY
COMPRESSOR
FLA LRA QT.
COMPRESSOR
FLA LRA QT.
FAN MOTOR INT.
FLA LRA QT.
FAN MOTOR EXT.
FLA LRA QT.
PUMP MOTOR
FLA LRA QT.
TOTAL FLA AC TOTAL FLA DC Ipk KA
A A Icw KA
REFRIGERANT TYPE
GWP
CIRCUIT 1 REFRIGERANT
CHARGE
CIRCUIT 2 REFRIGERANT
CHARGE
ON
FACTORY
ON SITE ON
FACTORY
ON SITE
Kg ……….Kg Kg ……….Kg
MAX ALLOWABLE PRESSURE
HP SIDE(PS) Bar LP SIDE(PS) Bar
HIGH PRESS. SWITCH-MANUAL
SET Bar RESET Bar
LOW PRESSURE SWITCH
SET Bar RESET Bar
OPERATING AIR TEMPERATURE
min 0C max 0C
OPERATING AIR HUMIDITY
min % max %
CIRCUIT MAX. PRESSURE
Bar
NET WEIGHT
Kg
MANUFACTURING DATE
1
2 3
4
5 6
7
8 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
32
30
28
31
29

