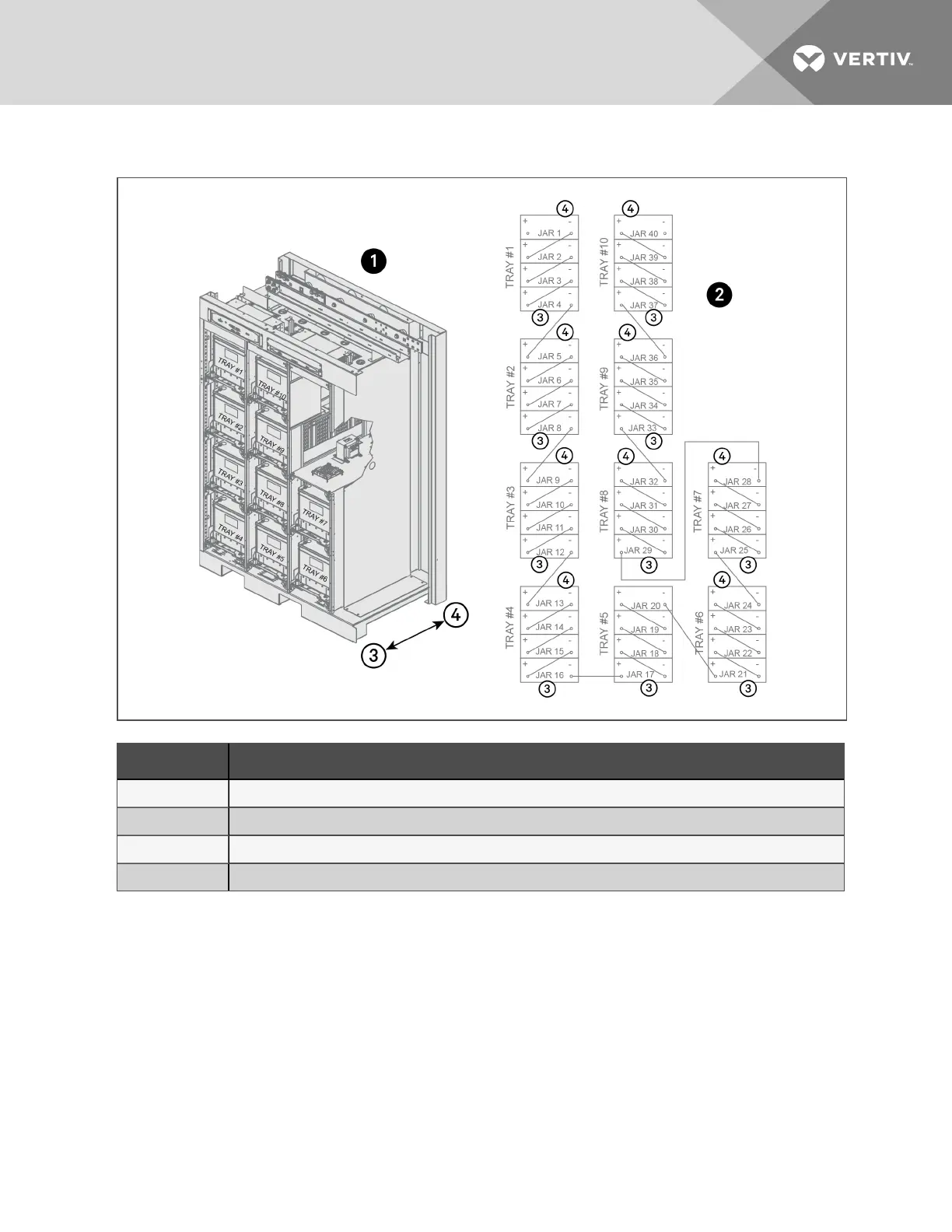

Figure 3.2 Top-Terminal Cabinet Battery-Interconnection Layout
Item Description
1 Tray location
2 Cable interconnection
3 Front
4 Rear
3.4 Interconnecting Battery Cables inaFront-terminalCabinet
NOTE: Make sure that you complete all cabinet and battery interconnections before making any power cabling
connections. The interconnects are very hard to access after the power wiring is complete. Refer to the submittal
drawings that shipped with the battery system, or contact your Vertiv sales representative for the drawings.
Figure 3.3 on the next page, shows the interconnection between each battery tray and battery jar.
3 Electrical Installation
13
