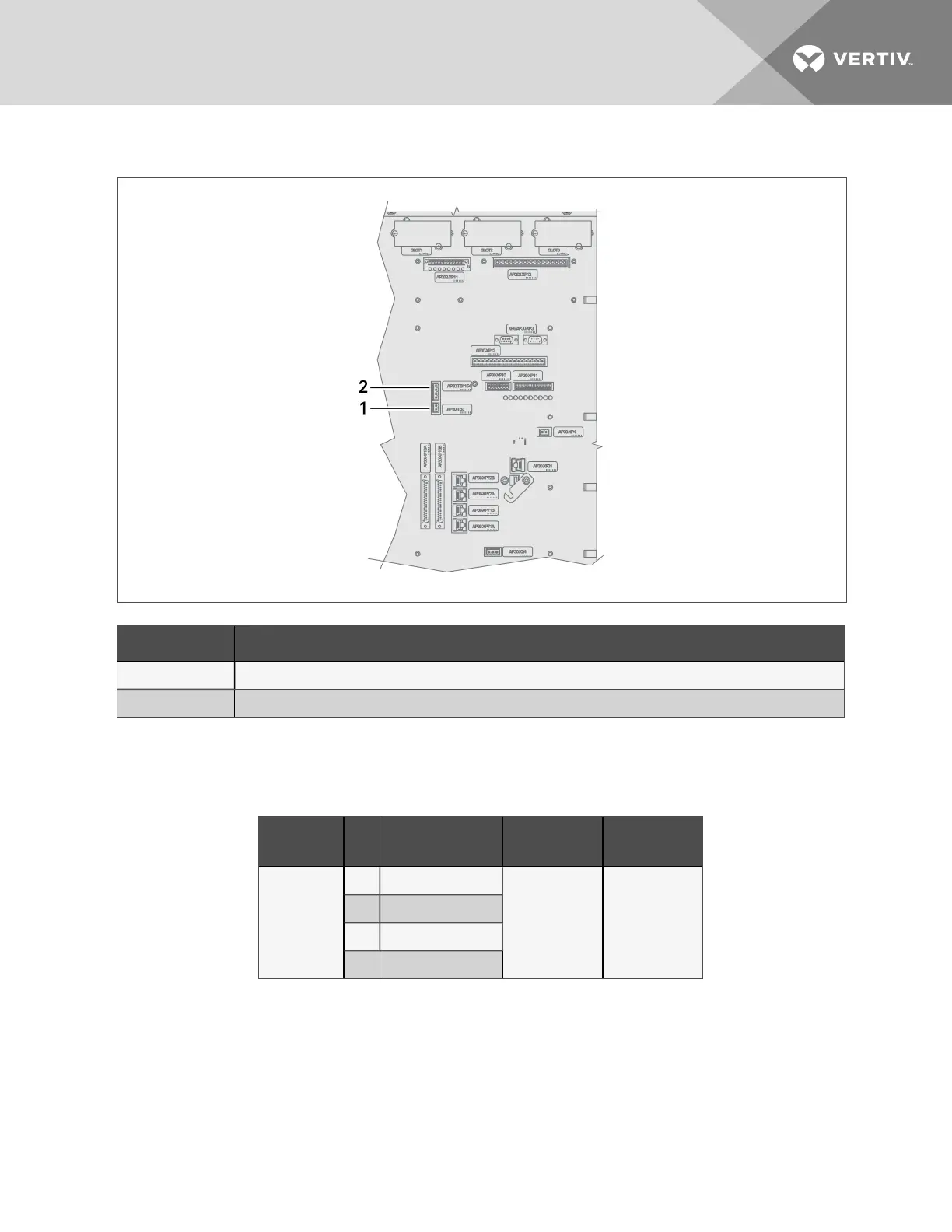

Figure 3.8 Connectors on the EXLS1 EIB
Item Description
1 TB3 (24VDC option power)
2 TB1154 (BIB interface)
3.6.2 Connecting to Liebert EXL
Connect to TB1154 of the EXLcontrol drawer, see Figure 3.9 on the next page.
Terminal block Pin
Connects to
(desribes external item)
Maximum Voltage Maximum Current
TB1154
1 CAN +24V
24VDC 2A
2 CAN Common
3 CANbus High
4 CANbus Low
Table 3.2 EXL control contacts to BIB
3 Electrical Installation
21
