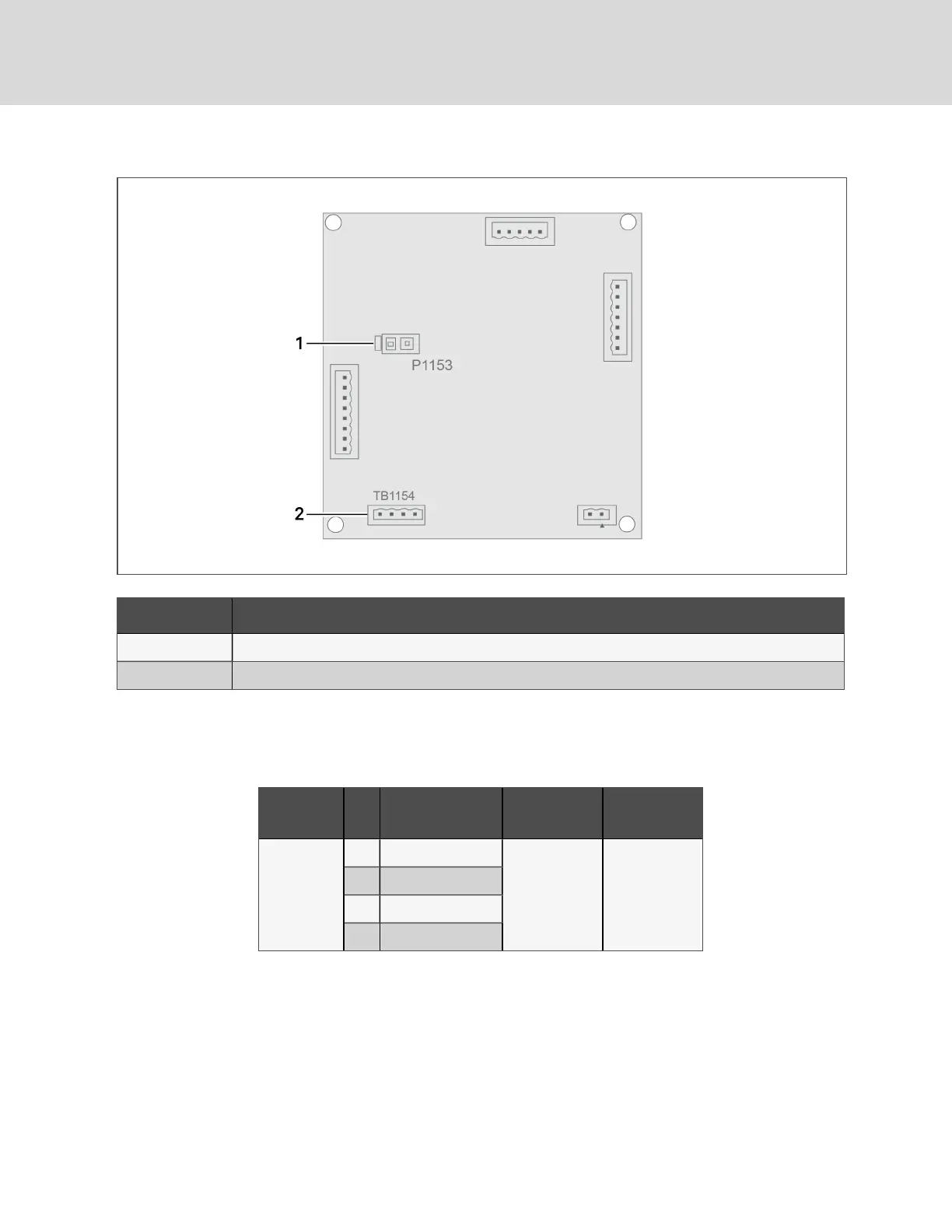

Figure 3.7 Connectors on the BIB
Item Description
1 P1153
2 TB1154
3.6.1 Connecting to Liebert EXL S1
Connect to TB1154 on the EXLS1 communication board, see Figure 3.8 on the facing page.
Terminal block Pin
Connects to
(desribes external item)
Maximum Voltage Maximum Current
TB1154
1 CAN +24V
24VDC 2A
2 CAN Common
3 CANbus High
4 CANbus Low
Table 3.1 EXL S1 control contacts to BIB
Vertiv | Liebert® Large UPS Battery System Installer Guide
20
