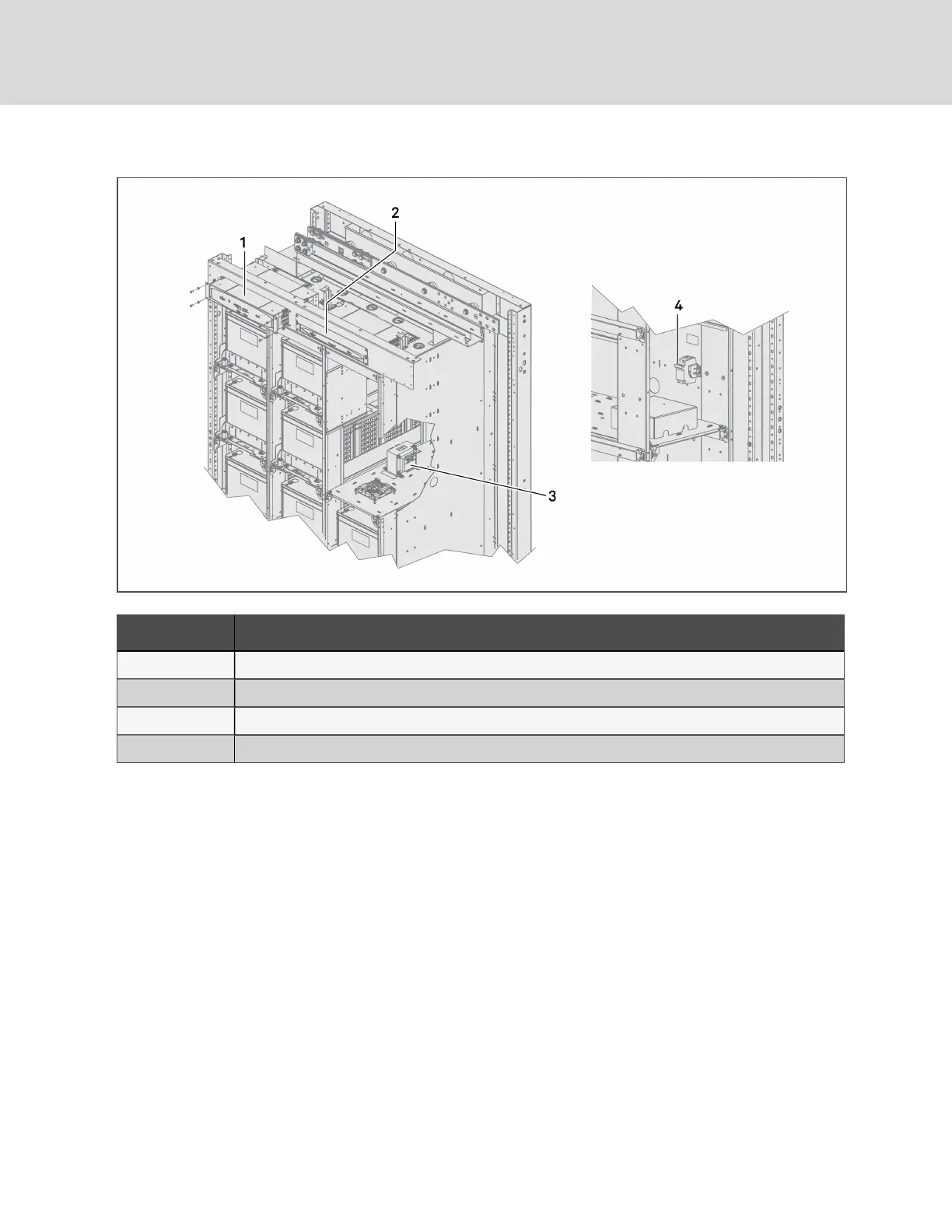

Figure 3.14 Monitoring System Components in the Battery Cabinet
Item Description
1 Control module
2 Battery module
3 Monitoring system power transformer
4 Monitoring system power input fuse
3.6.6 Connecting an External Room Temperature Sensor
Your system may include an optional temperature sensor that monitors the ambient temperature of the room. Monitoring
the temperature allows temperature compensation charging by a connected Liebert® UPS.
The sensor connects to the battery interface board at P1153. See Figure 3.7 on page20 for the location of the connector on
the board.
