Vertiv™ NetSure™ 7100 Series -48 VDC Power System User Manual

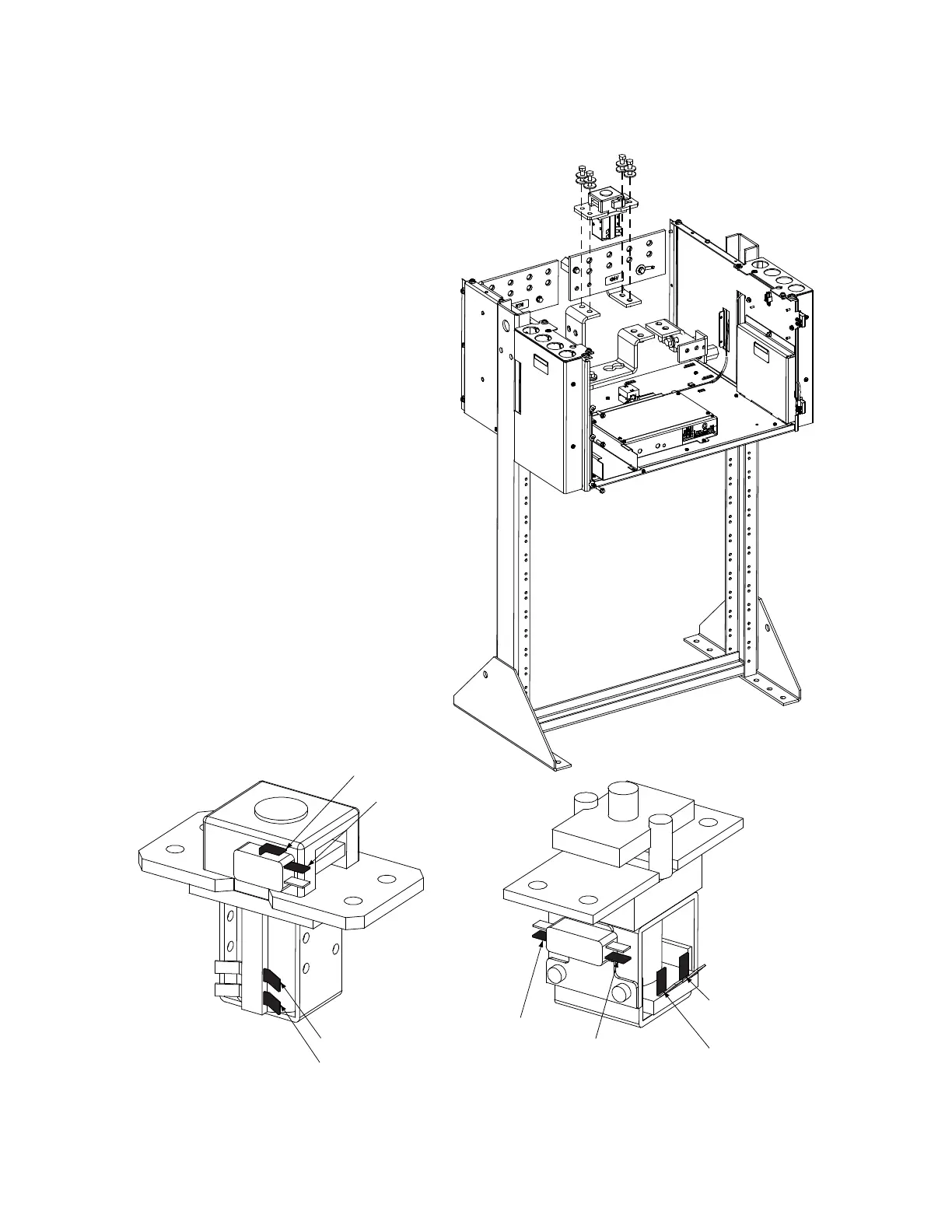

Figure 5.23 Replacing a Battery Disconnect Contactor in a 1-Row Distribution Cabinet

Battery

Disconnect

Contactor

Apply electrical anti-oxidizing

compound to busbar mating surfaces.

Components removed in

illustration for clarity only.

Contactor styles vary

between manufacturer’s.

Front

5/16-18 x 1” Bolt

5/16" Belleville Lock Washer

(concave side of Belleville

Lock Washers face each other)

5/16" Hardened Flat Washer

(4 places)

Torque to 100 in-lbs.

White/Black Wire

Brown Wire

Brown/White Wire

Red/White Wire

Brown Wire

Brown/White Wire

White/Black Wire

Red/White Wire

Table of Contents3
Admonishments Used in this Document5
Important Safety Instructions6
Static Warning9
Customer Documentation Package11
System Description12
Operating Procedures14
Controller, Rectifiers, and Converters14
ESTOP Function14
Controller Battery Charge Current Limit Feature14
Local Controls and Indicators15
Procedures When the System Is Installed in an Enclosure23
Removing the Enclosure Rear Panels23
Removing the Enclosure Side Panels23
AC Input Conduit Options23
Maintenance25
System Maintenance Procedures25
Adding a Rectifier Module to an Existing Spec. No. 588705000, 588705400, or 588705500 Module Mounting25
Assembly25
Adding a Rectifier or Converter Module to an Existing Spec. No. 588705300 Module Mounting Assembly26
Installing a Field Expansion Module Mounting Assembly Spec. No. 588705000 or 588705500 in a System Installed in a Relay Rack or an Enclosure29
Installing a Field Expansion Module Mounting Assembly Spec. No. 588705400 in a System Installed in a Relay Rack or an Enclosure37
Reconfiguring a Dual Voltage Distribution Panel (List DE, DF, DG, DH, DJ, DK, FE, FF, FG, FH, FJ, FK)42
Changing the Controller's LVD Control Level for a Contactor51
Adding a Supplemental Bay in the Field51
Installing Optional Second IB2 (Controller Interface Board) or Optional Second EIB53
Interface Board)53
Troubleshooting and Repair54
Contact Information54
Controller, Rectifiers, and Converters54
Controller Configuration54
System Troubleshooting Information54
Replacement Information55
Replacement Procedures56
Replacing a Rectifier Module (in a Spec. No. 588705000 Module Mounting Assembly)56
Replacing a Rectifier or Converter Module (in a Spec. No. 588705300 Module Mounting Assembly)56
Replacing a Rectifier Module (in a Spec. No. 588705400 Module Mounting Assembly)56
Replacing a Rectifier Module (in a Spec. No. 588705500 Module Mounting Assembly)56
Replacing the Controller56
Replacing a Distribution Device56
Replacing a Distribution Panel (List AA, AB, AC, AD, AE, AF, AG, AH, AJ, AK, BA, BB, BC, BD, BF, and BH)66
Replacing a Distribution Panel (List AL, AN, DE, DF, DG, DH, DJ, DK, FE, FF, FG, FH, FJ, FK)69
Replacing a Distribution Panel List AA, AB, AC, AD, AE, AF, AG, AH, AJ, AK, DA, DB, DC, DD, BA, BB72
BC, BD, BE, BF, BG, or BH with a List AL, AN, DE, DF, DG, DH, DJ, or DK, FE, FF, FG, FH, FK72
Replacing a Distribution Panel77
BC, BD, BE, BF, BG, or BH with am or AP)77
Replacing a Distribution Panel (List AA, AB, AC, AD, AE, AF, AG, AH, AJ, AK, DA, DB, DC, DD, BA, BB, BC, BD, BE, BF, BG, or BH with EA)80
Circuit Card Replacement Procedures83
Replacing a Battery or Load Disconnect Contactor100
