Vertiv™ NetSure™ 7100 Series -48 VDC Power System User Manual
13
3.5 Procedures when the System is Installed in an Enclosure
3.5.1 Removing the Enclosure Rear Panels
Procedure
1. Loosen the fasteners on the rear panel, then remove the panel. Refer to Figure 3.7.
2. For reassembly, not the location of the large holes in two corners of the panels. Orient the panels as shown in Figure 3.7.
3.5.2 Removing the Enclosure Side Panels
Procedure
1. Loosen the fasteners on the side panel, then remove the panel. Refer to Figure 3.7.
3.5.3 AC Input Conduit Options
Procedure
1. Two types of conduit plates are available. Select and install the conduit plate appropriate for your application. Refer to
Figure 3.8.

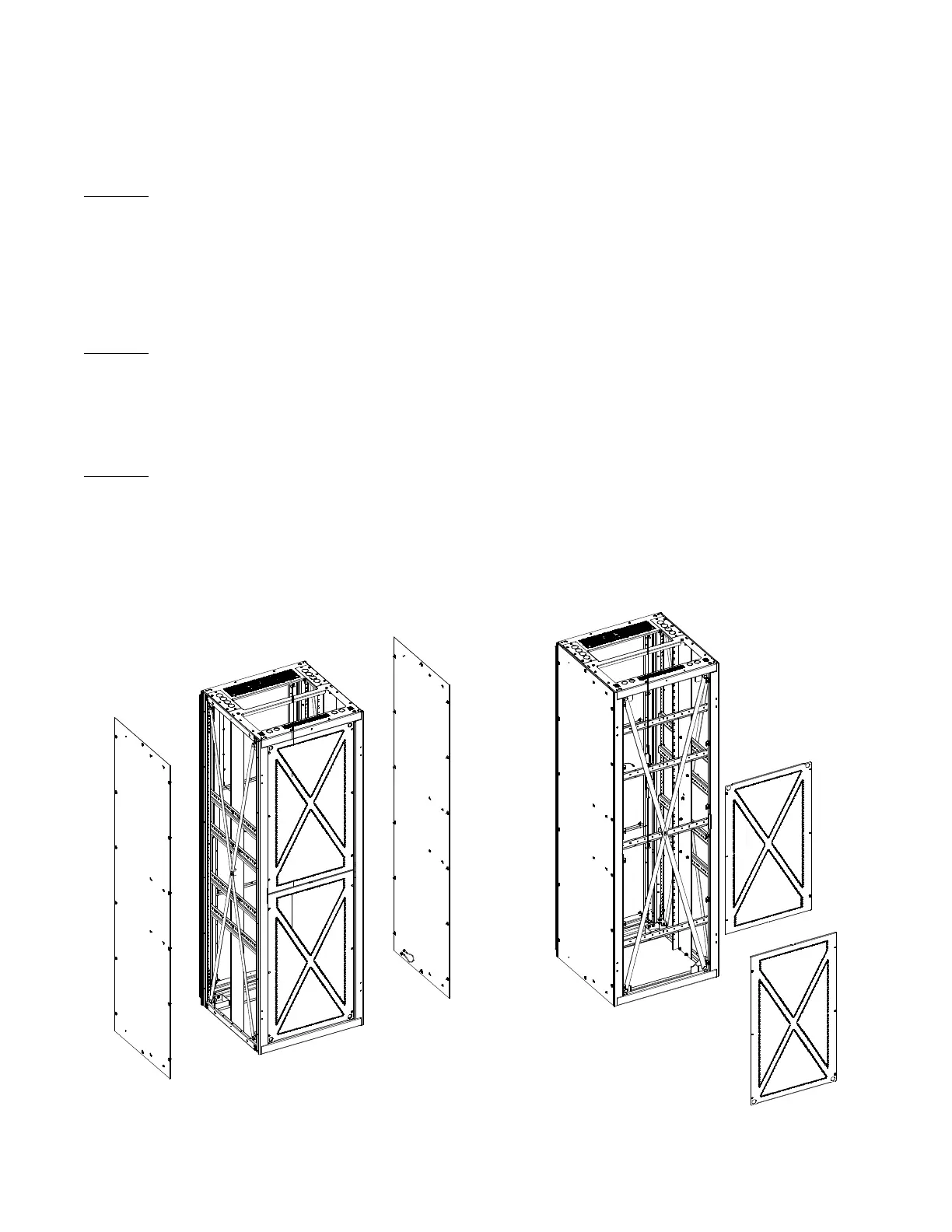

Figure 3.7 Removing System Enclosure Side and Rear Panels
Removing Side Panels Removing Rear Panels
