Vertiv™ NetSure™ 7100 Series -48 VDC Power System User Manual

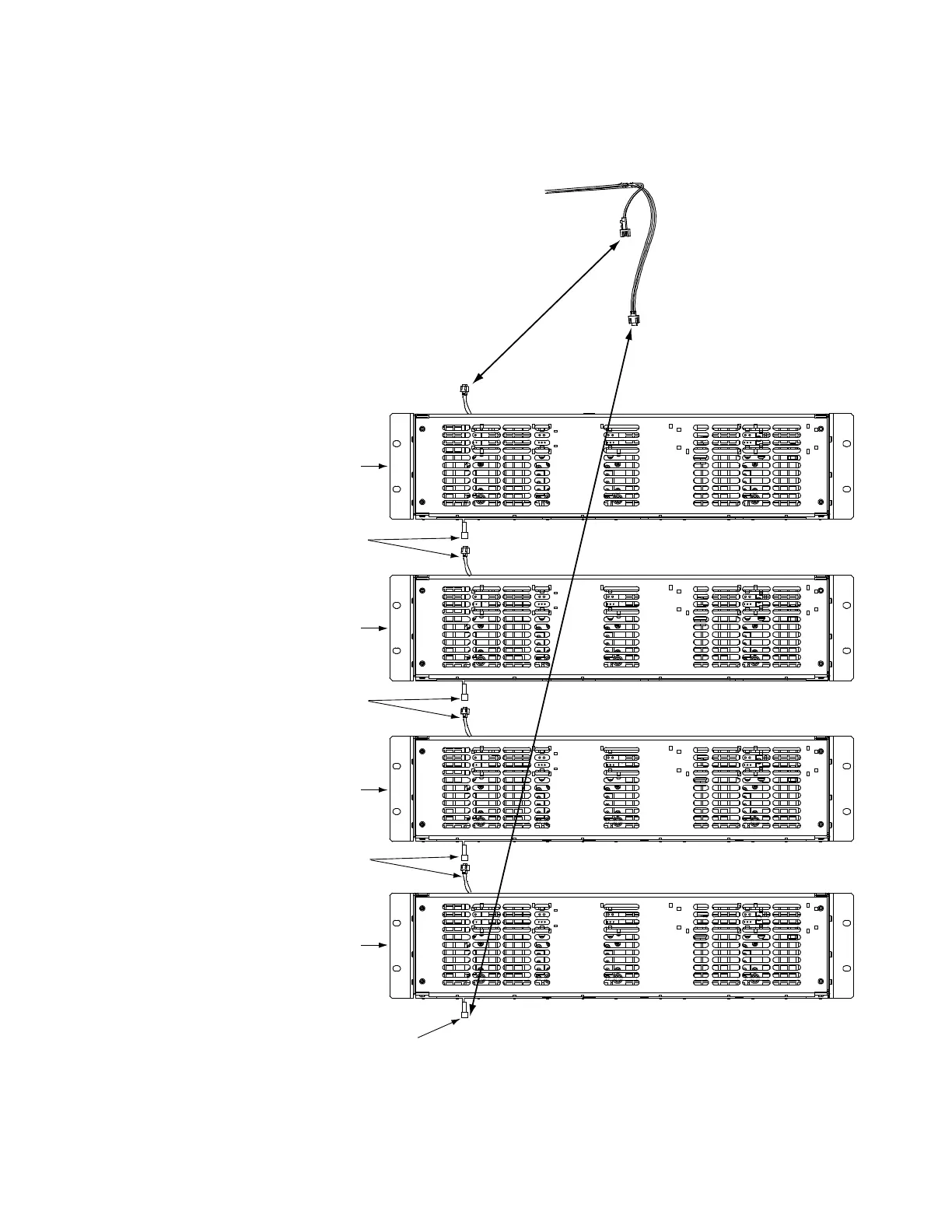

Figure 4.5 Controller CAN Bus, Module Mounting Assembly Spec. No. 588705000 or 588705500

Distribution

Cabinet Wire

Harness

Brown and

Brown/White Wires

Slate and

Slate/White Wires

Existing

Module Mounting Shelf

Existing

Module Mounting Shelf

These cables are

factory connected.

These cables are

factory connected.

These cables are

factory connected.

Existing

Module Mounting Shelf

Expansion

Module Mounting Shelf

Exploded View Shown to Illustrate Wire Connections Only

Disconnect cable coming from distribution

cabinet from this connector on bottom-most

existing shelf, then connect to the

top connector on the expansion shelf.

Connect the cable disconnected above

(coming from distribution cabinet) to bottom

connector on expansion shelf.

Table of Contents3
Admonishments Used in this Document5
Important Safety Instructions6
Static Warning9
Customer Documentation Package11
System Description12
Operating Procedures14
Controller, Rectifiers, and Converters14
ESTOP Function14
Controller Battery Charge Current Limit Feature14
Local Controls and Indicators15
Procedures When the System Is Installed in an Enclosure23
Removing the Enclosure Rear Panels23
Removing the Enclosure Side Panels23
AC Input Conduit Options23
Maintenance25
System Maintenance Procedures25
Adding a Rectifier Module to an Existing Spec. No. 588705000, 588705400, or 588705500 Module Mounting25
Assembly25
Adding a Rectifier or Converter Module to an Existing Spec. No. 588705300 Module Mounting Assembly26
Installing a Field Expansion Module Mounting Assembly Spec. No. 588705000 or 588705500 in a System Installed in a Relay Rack or an Enclosure29
Installing a Field Expansion Module Mounting Assembly Spec. No. 588705400 in a System Installed in a Relay Rack or an Enclosure37
Reconfiguring a Dual Voltage Distribution Panel (List DE, DF, DG, DH, DJ, DK, FE, FF, FG, FH, FJ, FK)42
Changing the Controller's LVD Control Level for a Contactor51
Adding a Supplemental Bay in the Field51
Installing Optional Second IB2 (Controller Interface Board) or Optional Second EIB53
Interface Board)53
Troubleshooting and Repair54
Contact Information54
Controller, Rectifiers, and Converters54
Controller Configuration54
System Troubleshooting Information54
Replacement Information55
Replacement Procedures56
Replacing a Rectifier Module (in a Spec. No. 588705000 Module Mounting Assembly)56
Replacing a Rectifier or Converter Module (in a Spec. No. 588705300 Module Mounting Assembly)56
Replacing a Rectifier Module (in a Spec. No. 588705400 Module Mounting Assembly)56
Replacing a Rectifier Module (in a Spec. No. 588705500 Module Mounting Assembly)56
Replacing the Controller56
Replacing a Distribution Device56
Replacing a Distribution Panel (List AA, AB, AC, AD, AE, AF, AG, AH, AJ, AK, BA, BB, BC, BD, BF, and BH)66
Replacing a Distribution Panel (List AL, AN, DE, DF, DG, DH, DJ, DK, FE, FF, FG, FH, FJ, FK)69
Replacing a Distribution Panel List AA, AB, AC, AD, AE, AF, AG, AH, AJ, AK, DA, DB, DC, DD, BA, BB72
BC, BD, BE, BF, BG, or BH with a List AL, AN, DE, DF, DG, DH, DJ, or DK, FE, FF, FG, FH, FK72
Replacing a Distribution Panel77
BC, BD, BE, BF, BG, or BH with am or AP)77
Replacing a Distribution Panel (List AA, AB, AC, AD, AE, AF, AG, AH, AJ, AK, DA, DB, DC, DD, BA, BB, BC, BD, BE, BF, BG, or BH with EA)80
Circuit Card Replacement Procedures83
Replacing a Battery or Load Disconnect Contactor100
