4.3 Frame Grounding Connection
A frame ground stud (M3) is located on the outside of the Vertiv™ NetSure™ SM-DU+ assembly.
Procedure
1. Connect a frame ground lead to the frame ground stud located on the NetSure™ SM-DU+ assembly. Refer to Figure 4.1 for
location. Recommended torque is 6 in-lbs.

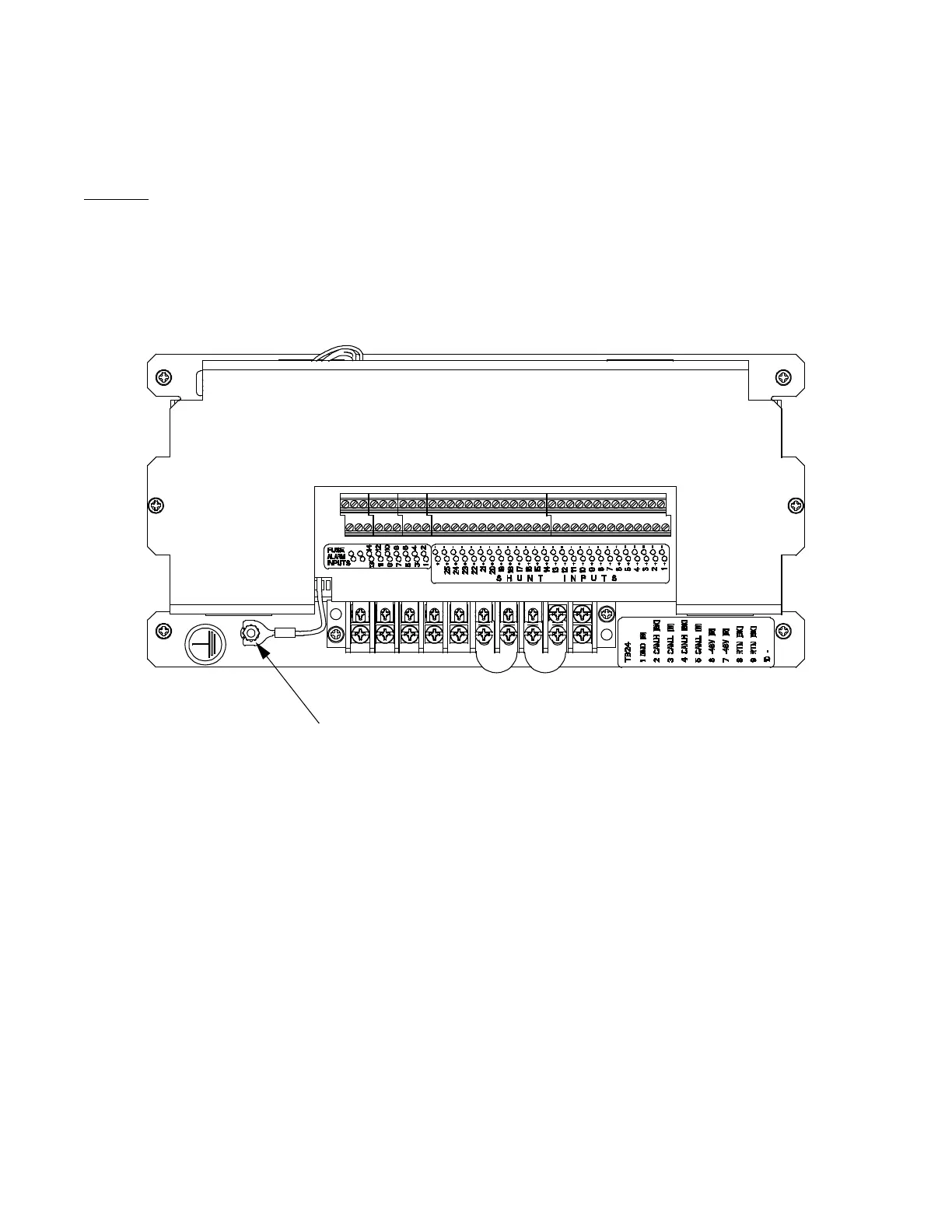

Figure 4.1 NetSure™ SM-DU+ Assembly Frame Grounding Connection
NetSure™ SM-DU+ Assembly Top View
Frame Ground
(Torque to 6 in-lbs.)
