Vertiv™ NetSure™ Supervision Module for Distribution Unit Plus Installation and User Manual
9

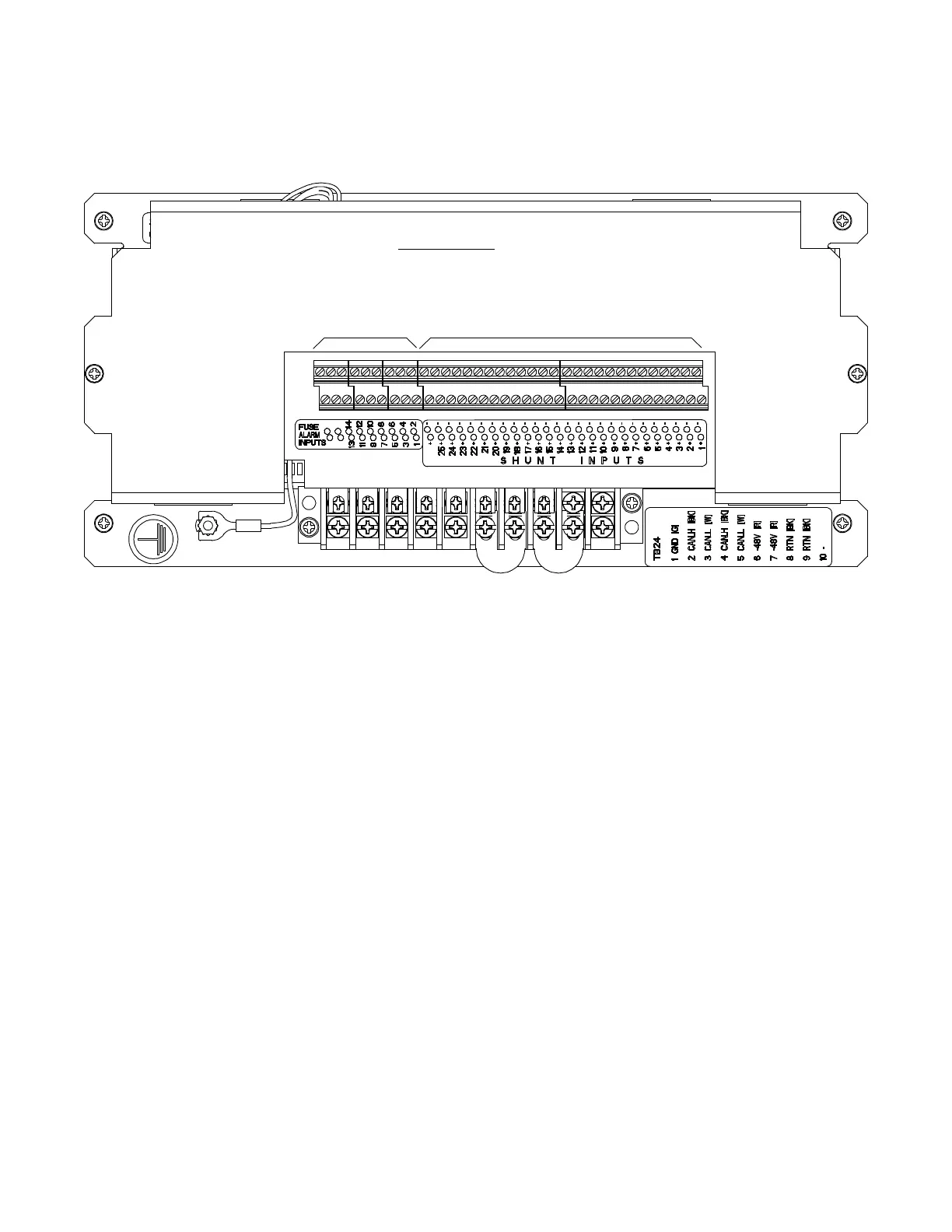

Figure 4.2 Vertiv™ NetSure™ SM-DU+ Assembly Shunt and Fuse Alarm (FA) Inputs Connections
Terminal Blocks
Wire Size Capacity: 16-26 AWG.
Recommended Torque: 2.2 in-lbs.
NetSure™ SM-DU+ Assembly Top View
FUSE ALARM
INPUTS
SHUNT
INPUTS
(+Shunt)
(-Shunt)
