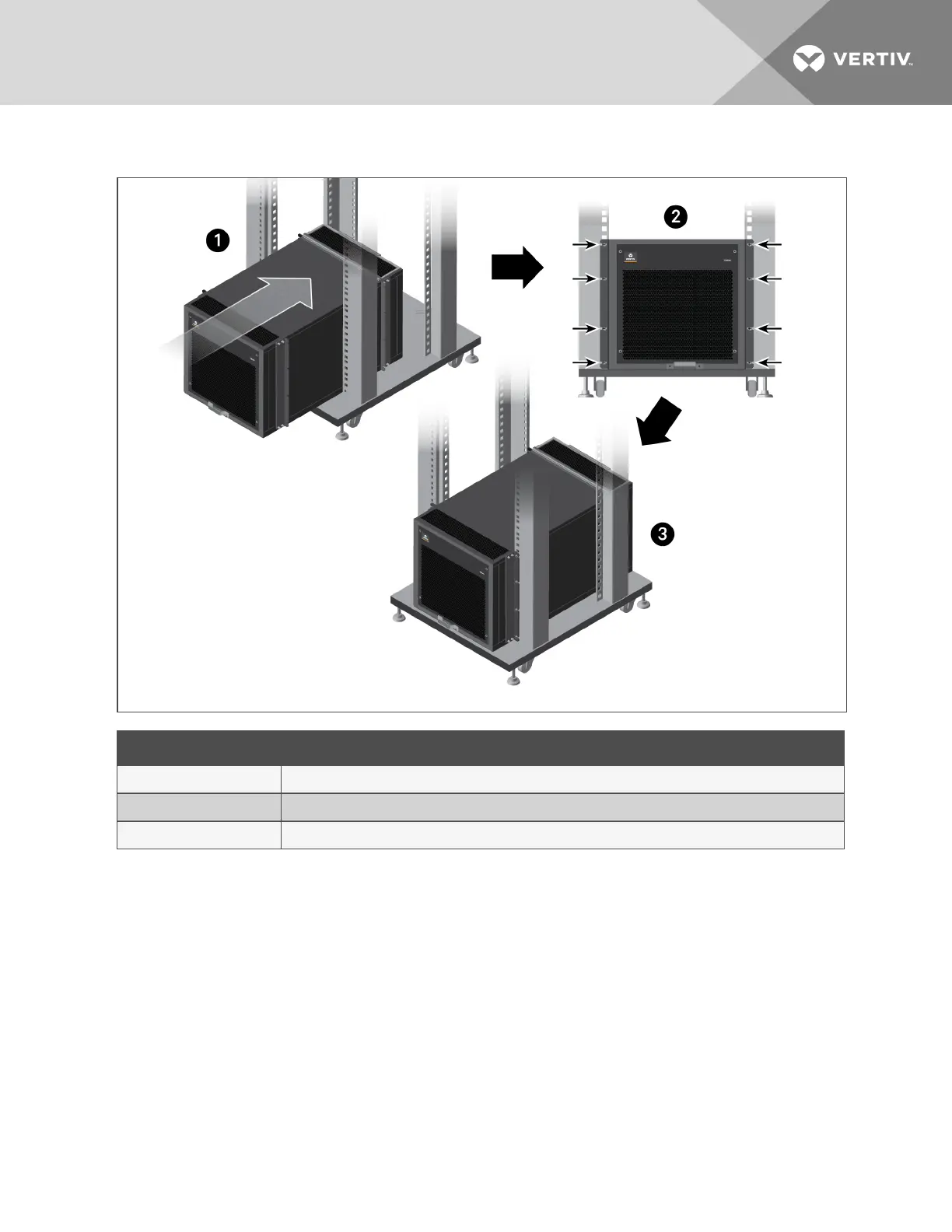

Figure 4.2 Installing and Securing the Unit in the Rack
Item Description
1 Slide the unit into the rack.
2 Secure the brackets.
3 Unit installed.
4.2 Connecting Duct Work
If the condenser hot air discharged by the VRC must be removed from the immediate area or room, you
may connect ducting to the air outlet on the rear of the unit. If the duct work removes hot air from the
room or into a dropped ceiling, make provisions to bring make-up air into the room. Install duct work in
accordance with local codes.
If your system includes the optional duct-work kit, follow the instructions included with the kit to install
and connect the duct work.
NOTE: Ducting is optional, and the duct work shown in Figure 4.3 on the next page, is and example of
the installed duct.
4 Installation
15
