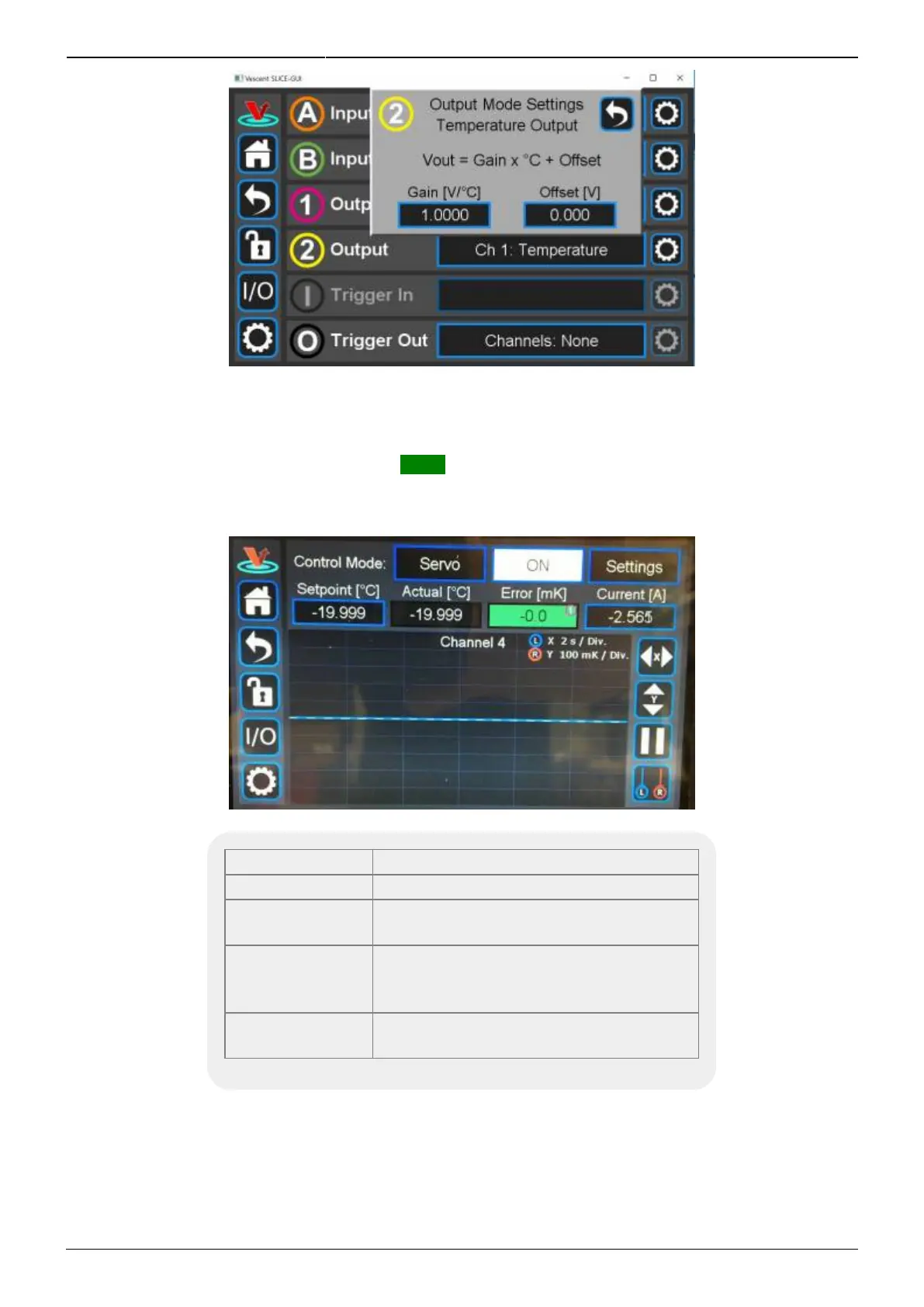

Fig. 30: Adjusting the Gain & Offset of Channel 2 Output
When the SLICE-QTC is programmed to deliver data to an output port, the data that is being delivered
will be indicated on the Channel Detail screen as seen in figure 31. The numeral 1 in the magenta
circle in the upper right-hand corner of the green Error [mK] display field indicates that the error in
temperature for CH 4 is being delivered to the front-panel I/O port ch 1.
Fig. 31: CH 4 ∆T data is being delivered to front-panel I/O channel 1
Choice Comment
Off No data delivered to output channel
Temperature
Actual temperature measured by
thermistor
Temperature Error
Temperature error ∆T = T
act
- T
set
: Actual
temperature minus set point
temperature
Current Output
Current being delivered to specified
temperature control channel
Tab. 8: Front-panel ouput signals
Triggering
External control of the SLICE-QTC is accomplished via a TTL trigger.
13)
0 to 0.8 V TTL is low and 2 to V
CC
