2.7.7 Wiring to an Address Loop Module
This wiring example is for wiring VESDA detectors to a typical Address Loop module 3 input 1 output. These
are example drawings. Refer to the appropriate product manual for the exact wiring details of the third party
equipment.

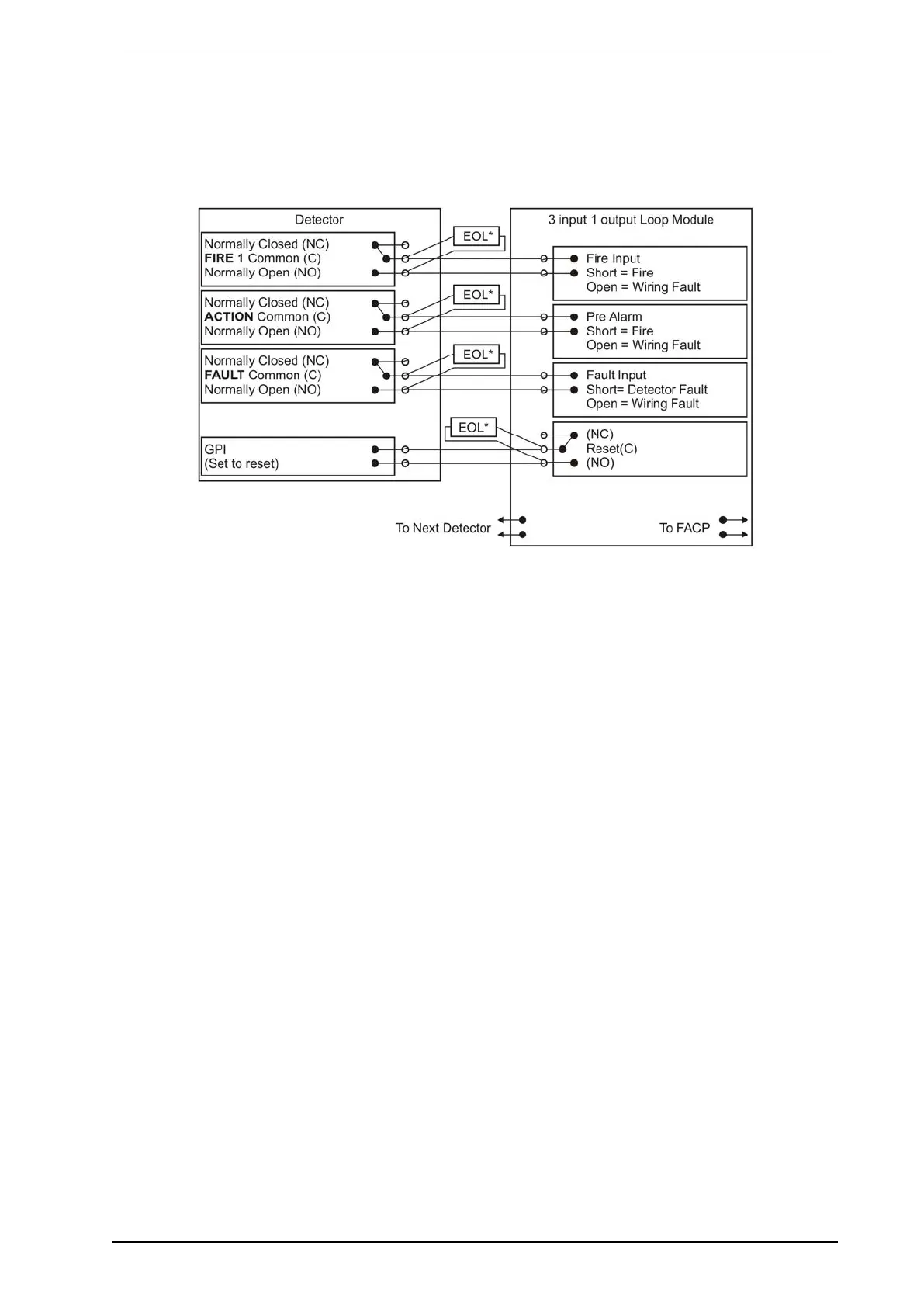

Figure 2-14: Addressable Loop Module with EOL
2.7.8 Interface Card
The VESDA VLF allows for the installation of a variety of interface cards. Refer to the specific interface card
installation sheet, product guide, or your local VESDA support person for further information regarding
installation and configuration of this card.
