VEVOR L4040 - Laser Installation

⑤
4/6
06: Leg 4PCS
09: Screw M5*8 8PCS
12: Square nut M5 8PCS
④
Put synchronous belt
into the square hole

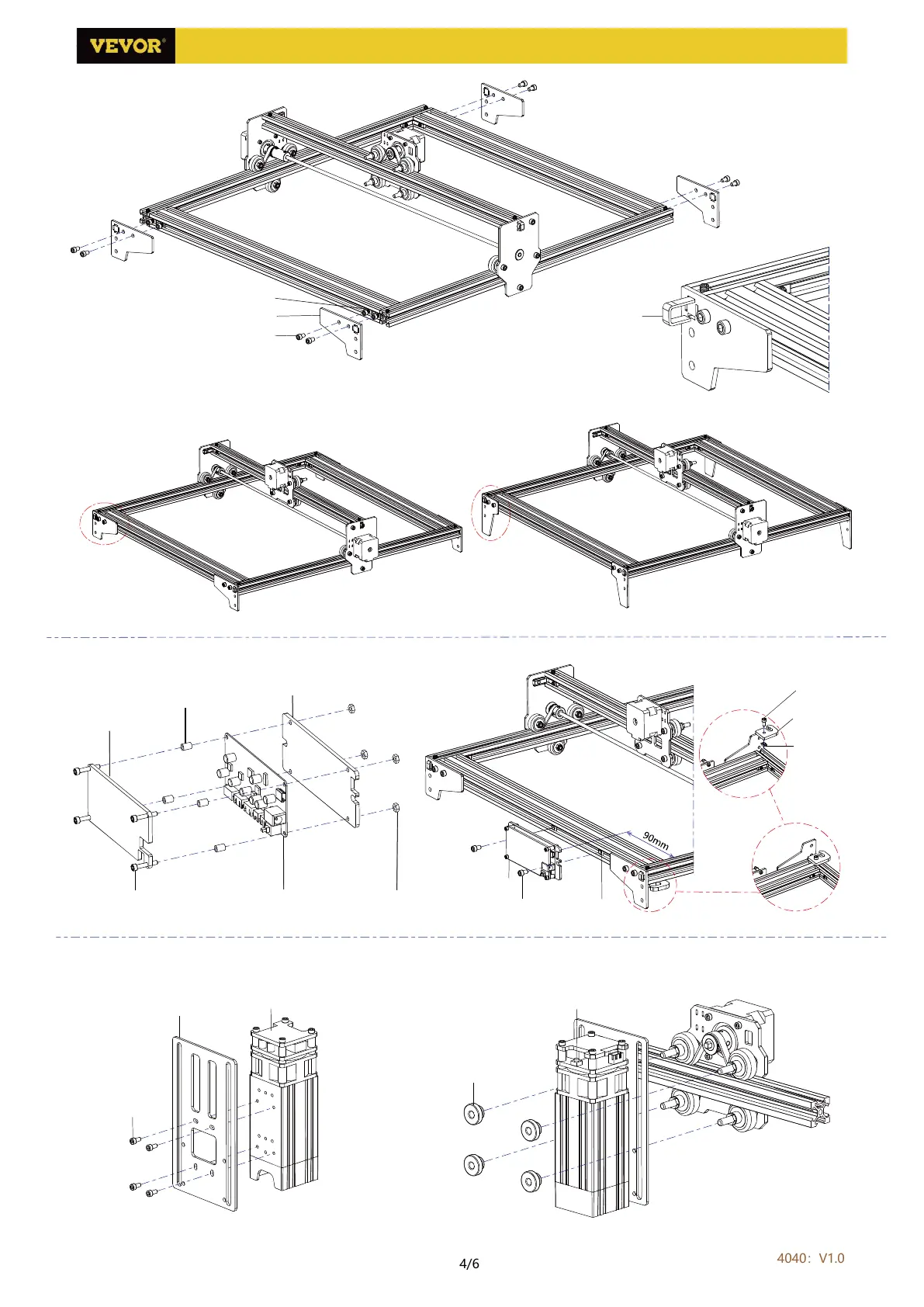

3. Laser Installation
4040：V1.0
C4: Column Φ3*7 4PCS
C5: Screw M3*18 4PCS C6: Nut M3 4PCS
C3: Acrylic plate for
control board B 1PCS
C2: Acrylic plate for
control board A 1PCS
C1: Control board 1PCS
13: Manual nut M5 4PCS
05: Acrylic plate B
for X-Part 1PCS
M1: Screw
M3*6 4PCS
L1: Laser kit 1Set
Weak light switch
09: Screw M5*8 2PCS
14: Ship nut 2PCS
15: Control board
package 1Set
14: Ship nut
M5-101PCS
10: Screw
M5*10 1PCS
07: Fixed wire
block 1PCS
Tall leg installation mode
Short leg installation mode
4/7
L4040 V1.0
