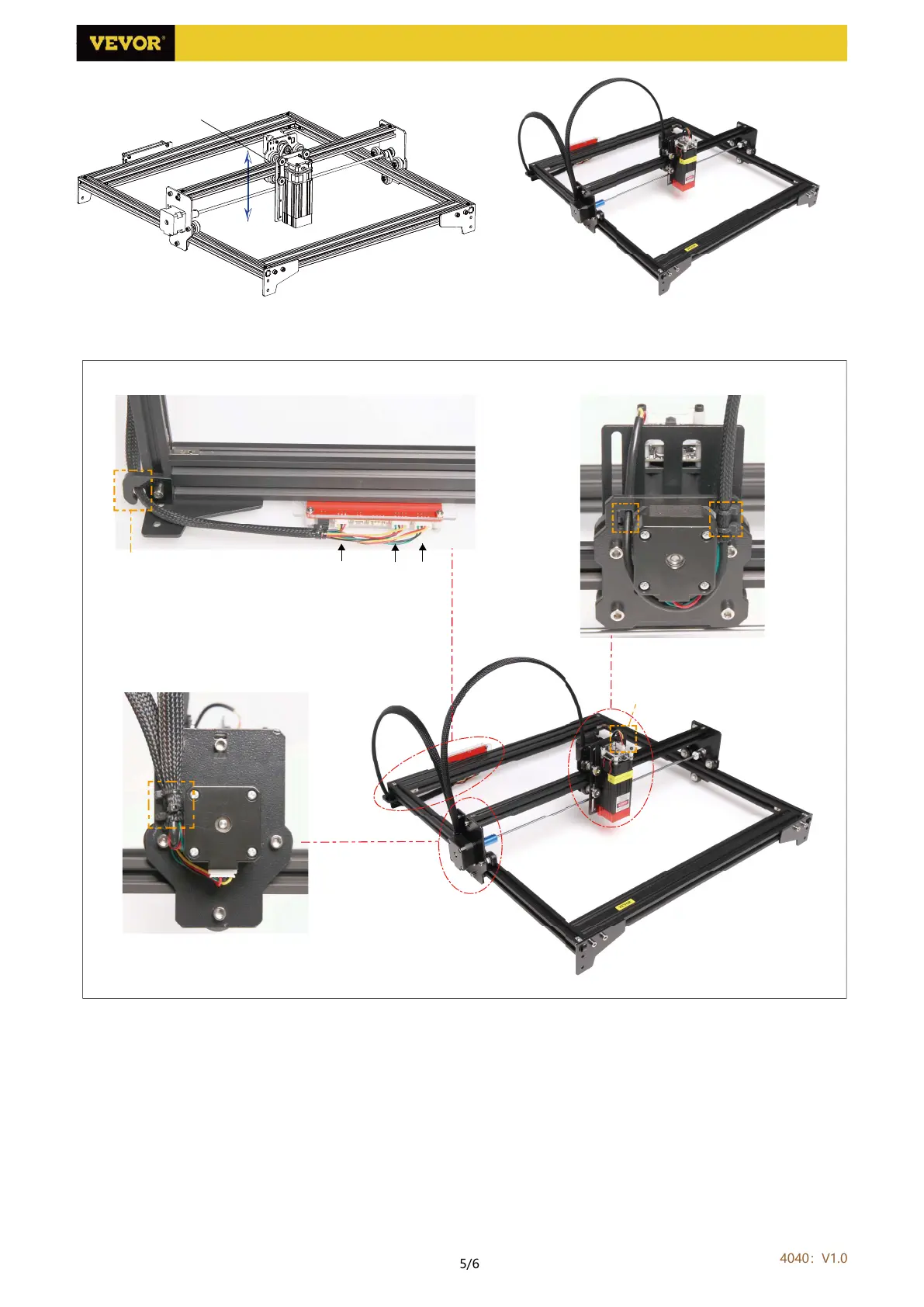

VEVOR L4040 - Cable Connection

3 pieces of
cable tie.
2 pieces of
cable tie.
laser wire
through
the hole.
The wire is stuck in hole
of the fixed wire block.
5/6
4040：V1.0
4. Cable connection
Up
Down
Four Manual nuts adjust
the height of the laser module
Laser
3P,1500mm
Y1
X3P
Laser
Stepper motor
Control board
Y1-Stepper
motor
X-Stepper
motor
Y1-Stepper motor wire
4P-6P, 800mm
X-Stepper motor wire
4P-6P, 1400mm
5/7
L4040 V1.0
